Design
LED indicators: Power
Country of origin: China
Product colour: White
Weatherproof: Yes
Form factor: Dome
International Protection (IP) code: IP67
Protection features: Vandal proof
Mounting type: Ceiling
IK code: IK10
Power
Power consumption (max): 9 W
Power source type: DC, PoE
Power consumption (typical): 6.2 W
Operational conditions
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): 0 - 95 °C
Management features
Web-based management: Yes
Weight & dimensions
Depth: 111 mm
Weight: 500 g
Width: 111 mm
Height: 82 mm
Network
Networking standards: IEEE 802.3af
Bluetooth: No
Wi-Fi: No
Ethernet LAN: Yes
Quality of Service (QoS) support: Yes
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Performance
Connectivity technology: Wired
Infrared (IR) cut-off filter: Yes
Dynamic range: 120 dB

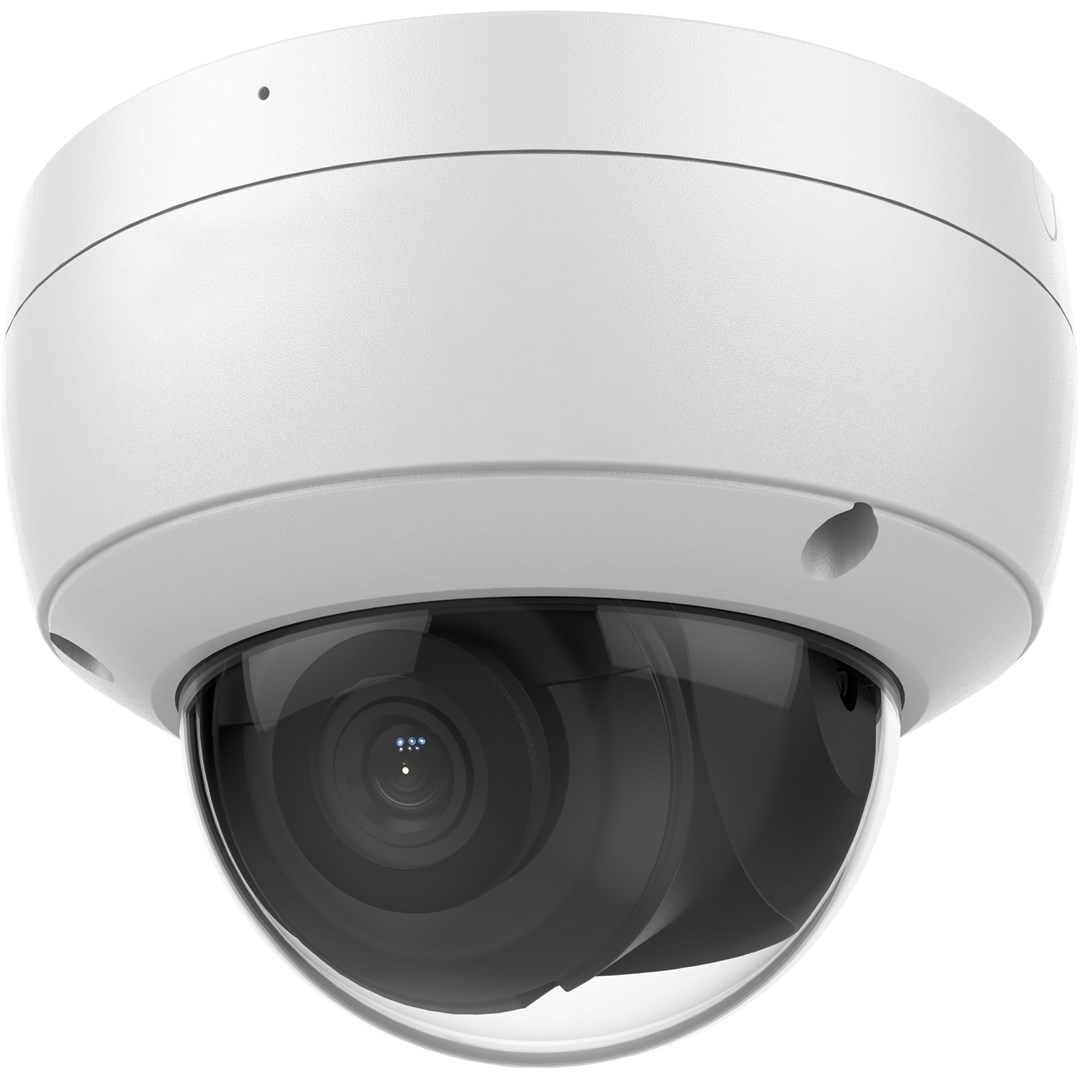

Type: IP security camera
Placement supported: Indoor & outdoor
Packaging data
Package type: Box
Package height: 108 mm
Package width: 134 mm
Package depth: 134 mm
Packaging content
Resource CD: Yes
Manual: Yes
Number of cameras: 1
Screws included: Yes
Audio
Audio system: 2-way
Voice codecs: MP2L2, G.711, G.726, G.722.1
Storage
Compatible memory cards: MicroSDXC, MicroSDHC, MicroSD (TransFlash)
Built-in HDD: No
Maximum memory card size: 128 GB
Ports & interfaces
Terminal block port: Yes
Ethernet LAN (RJ-45) ports: 1
Camera
Field of view (FOV) angle: 79°
Camera shutter speed: 1/3 - 1/10000 s
Logistics data
Pallet height (air): 162 cm
Master (outer) cases per pallet (air): 20 pc(s)
Master (outer) case height: 568 mm
Pallet gross length: 80 cm
Master (outer) case gross weight: 17 kg
Harmonized System (HS) code: 8525890000
Master (outer) case length: 590 mm
Master (outer) case width: 345 mm
Pallet gross width: 120 cm
Products per master (outer) case: 24 pc(s)
Image sensor
Optical sensor size: 25.4 / 2.5 mm (1 / 2.5")
Progressive scan: Yes
Sensor type: CMOS
Video
Maximum resolution: 3840 x 2160 pixels
Image quality adjustment: Brightness, Saturation, Sharpness, Contrast
Supported graphics resolutions: 3840 x 2160, 1920 x 1080 (HD 1080), 2560 x 1440, 2560 x 1920, 1280 x 720 (HD 720)
Video compression formats: H.265, M-JPEG, H.264
Total megapixels: 8 MP
Digital Wide Dynamic Range (DWDR): Yes
Noise reduction technology: 3D noise reduction
Noise reduction: Yes
Frame rate: 30 fps
Night vision
Night vision: Yes
LED type: IR
Night vision distance: 30 m
Lens system
Lens diameter: 4 mm
Number of lenses: 1
Zoom capability: Yes
Maximum aperture number: 2
Sustainability
Compliance certificates: RoHS, CE, Federal Communications Commission (FCC), WEEE
Sustainability compliance: Yes
