Design
IK code: IK10
Protection features: Vandal proof
Mounting type: Ceiling/wall
International Protection (IP) code: IP66
Product colour: White
Country of origin: China
Form factor: Dome
LED indicators: Power
Power
DC output voltage: 12
Power source type: PoE
Power consumption (max): 5.5 W
Power over Ethernet (PoE): Yes
Security
HTTPS encryption: Yes
IP address filtering: Yes
Password protection: Yes
Heartbeat: Yes
Mirror: Yes
Anti-flicker: Yes
Digital watermark: Yes
Operational conditions
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Management features
Web browser: Yes
Reset button: Yes
Weight & dimensions
Width: 133.1 mm
Weight: 1.29 kg
Height: 153.4 mm
Depth: 153.4 mm
Network
Cabling technology: 10/100Base-T(X)
Bluetooth: No
Ethernet interface type: Fast Ethernet
Number of users: 16 user(s)
Quality of Service (QoS) support: Yes
Wi-Fi: No
Ethernet LAN: Yes
Networking standards: IEEE 802.3af
System requirements
Windows operating systems supported: Windows 7, Windows XP Professional x64, Windows XP Home, Windows Vista, Windows 10, Windows 8, Windows XP Professional, Windows XP Home x64
Certification: CE/FCC
Performance
Day/night mode: Yes
Placement supported: Indoor & outdoor
Connectivity technology: Wired

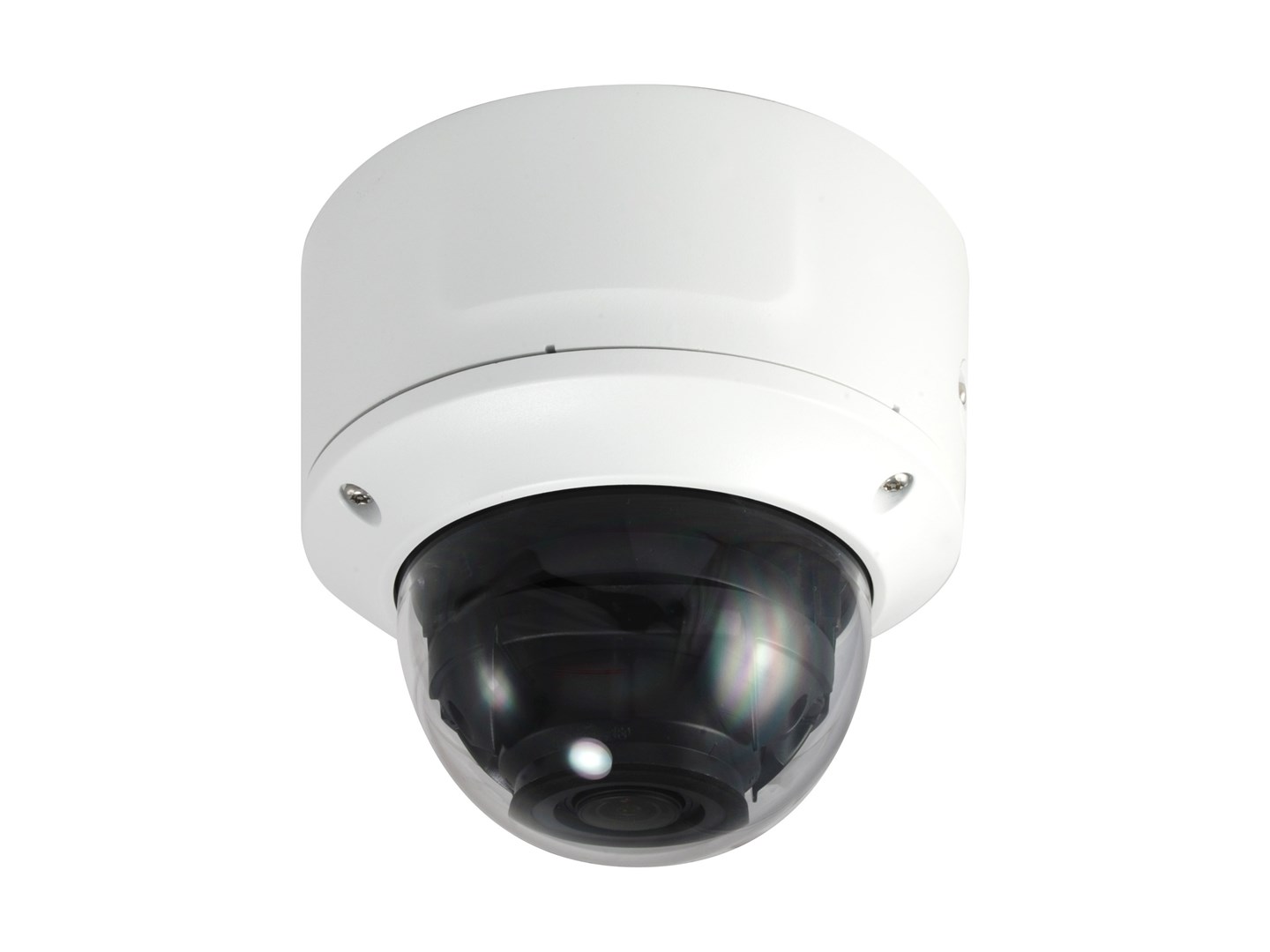

Type: IP security camera
Infrared (IR) cut-off filter: Yes
Packaging data
Package height: 244 mm
Package weight: 1.82 kg
Package depth: 173 mm
Package width: 174 mm
Package type: Box
Packaging content
Number of cameras: 1
Screws included: Yes
Resource CD: Yes
Audio
Voice codecs: G.711, MP2L2, G.722.1, G.726
Audio system: 2-way
Audio formats supported: G.726, G.711
Audio output channels: 1.0 channels
Audio input channels: 1.0 channels
Storage
Built-in HDD: No
Compatible memory cards: SDHC, SD, SDXC
Card reader integrated: Yes
Maximum memory card size: 128 GB
Ports & interfaces
Interface: RJ-45
DC-in jack: Yes
Terminal block port: Yes
Ethernet LAN (RJ-45) ports: 1
Camera
Camera shutter speed: 1/3 - 1/10000 s
Minimum illumination: 0.014 lx
Field of view (FOV) angle: 112°
Other features
Browser supported: Internet Explorer 9
Data transfer rate: 16 Mbit/s
Logistics data
Harmonized System (HS) code: 85258900
Products per master (outer) case: 8 pc(s)
Master (outer) case gross weight: 14.6 kg
Master (outer) case height: 504 mm
Master (outer) case width: 365 mm
Master (outer) case length: 372 mm
Image sensor
Sensor type: CMOS
Optical sensor size: 25.4 / 3 mm (1 / 3")
Progressive scan: Yes
Video
Video compression formats: H.264, M-JPEG
Video formats supported: AVI
Total megapixels: 2 MP
Full HD: Yes
Image quality adjustment: Sharpness, Saturation, Brightness, Contrast
Privacy masking: Yes
Supported graphics resolutions: 1920 x 1080 (HD 1080), 1280 x 720 (HD 720)
Frame rate: 30 fps
Maximum resolution: 1920 x 1080 pixels
Night vision
LED type: IR
Night vision distance: 30 m
Night vision: Yes
Lens system
Focal length range: 2.8 - 12 mm
Optical zoom: 4.3x
Focus adjustment: 1.4
Number of lenses: 1
Sustainability
Compliance certificates: RoHS
