Design
Product colour: White
Mounting type: Ceiling/wall
Country of origin: China
LED indicators: Power
IK code: IK10
Protection features: Water resistant, Dust resistant
Form factor: Bullet
International Protection (IP) code: IP67
Power
Power source type: DC, PoE
DC output current: 1.3 A
DC output voltage: 12
Power consumption (max): 15.5 W
Power consumption (Power over Ethernet (PoE)): 17.5 W
Security
Intelligent Video Surveillance (IVS) system features: Face detection
Video motion detection: Yes
Password protection: Yes
Anti-flicker: Yes
Heartbeat: Yes
Digital watermark: Yes
Mirror: Yes
Operational conditions
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Management features
Reset button: Yes
Behavior analysis: Intrusion detection, Line crossing detection
Weight & dimensions
Weight: 1.89 kg
Width: 332.7 mm
Height: 144.1 mm
Depth: 332.7 mm
Network
Bluetooth: No
Networking standards: IEEE 802.3at
Number of users: 32 user(s)
Ethernet interface type: Fast Ethernet
Cabling technology: 10/100Base-T(X)
Quality of Service (QoS) support: Yes
Ethernet LAN: Yes
Wi-Fi: No
Supported network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,IGMP, 802.1X, QoS, IPv6, Bonjour
Certification: CE/FCC
Performance
PTZ control: Yes
Connectivity technology: Wired
Day/night mode: Yes
Placement supported: Indoor & outdoor
Alarm input/output: Yes
Wide Dynamic Range (WDR): Yes

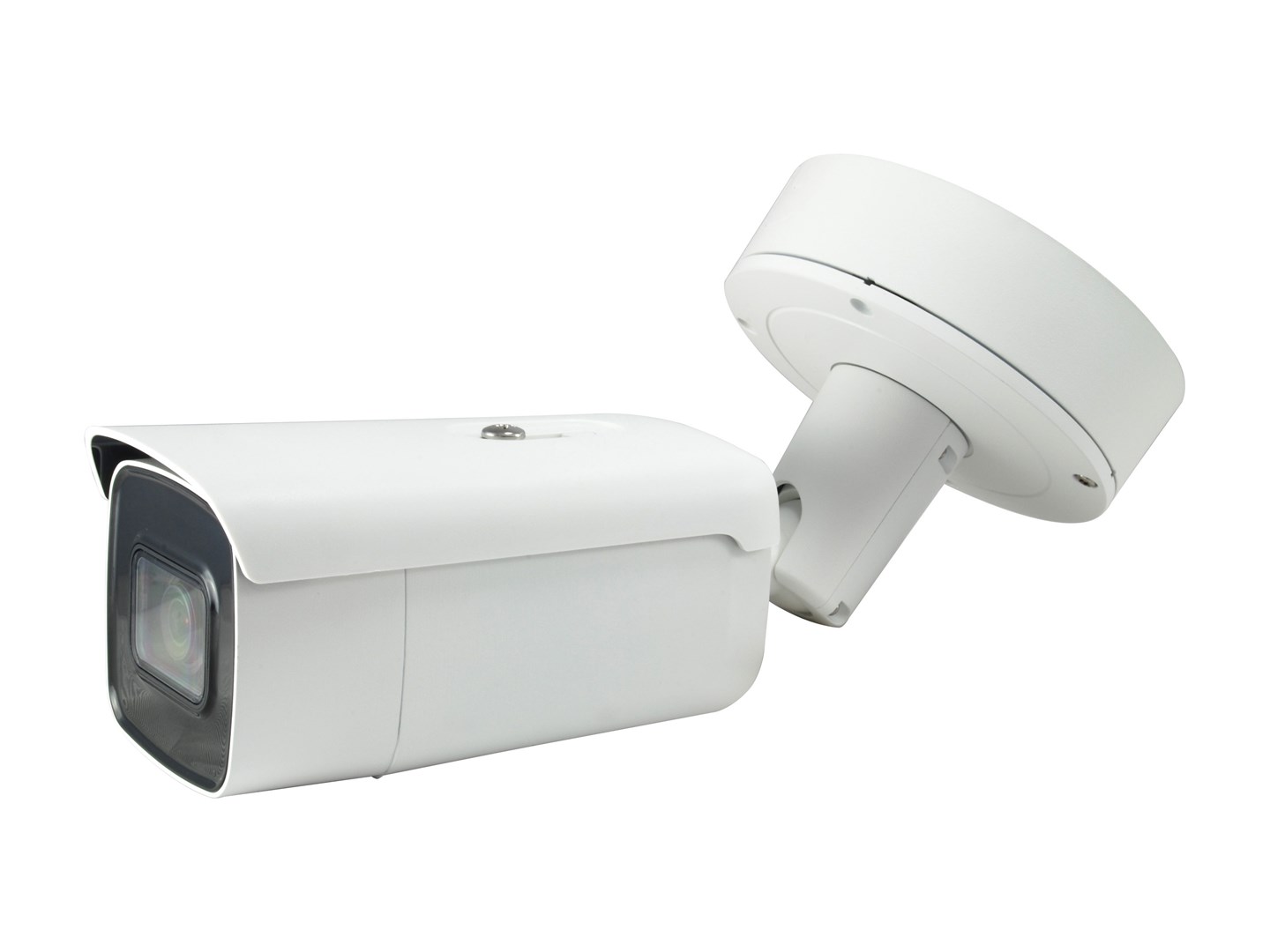

Type: IP security camera
Infrared (IR) cut-off filter: Yes
Packaging data
Package type: Box
Package weight: 2.28 kg
Package depth: 200 mm
Package width: 185 mm
Package height: 385 mm
Packaging content
Screws included: Yes
Resource CD: Yes
Number of cameras: 1
Audio
Audio output channels: 1.0 channels
Audio codecs: G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Audio input channels: 1.0 channels
Storage
Built-in HDD: No
Maximum memory card size: 128 GB
Compatible memory cards: SDHC, SDXC, MicroSD (TransFlash)
Card reader integrated: Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes
Composite video out: 1
Interface: RJ-45
Terminal block port: Yes
Camera
Camera shutter speed: 1/3 - 1/100000 s
White balance: Auto
Minimum illumination: 0.005 lx
Lens viewing angle, horizontal: 105°
Lens viewing angle, diagonal: 126°
Lens viewing angle, vertical: 56°
Other features
Browser supported: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Logistics data
Master (outer) case gross weight: 15.5 kg
Master (outer) case width: 570 mm
Products per master (outer) case: 9 pc(s)
Harmonized System (HS) code: 85258900
Master (outer) case length: 410 mm
Master (outer) case height: 595 mm
Image sensor
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Sensor type: CMOS
Video
Supported graphics resolutions: 1920 x 1080 (HD 1080), 1280 x 960, 640 x 480 (VGA), 320 x 240, 640 x 360, 352 x 288, 1280 x 720 (HD 720)
Maximum resolution: 1920 x 1080 pixels
Image quality adjustment: Saturation, Contrast, Sharpness, Brightness
Video compression formats: H.265, M-JPEG, H.264
Privacy masking: Yes
3D NR (Noise Reduction): Yes
Frame rate: 60 fps
Full HD: Yes
Supported video modes: 360p, 720p, 480p, 1080p, 960p, 240p
Total megapixels: 2 MP
Video formats supported: AVI
Back Light Compensation (BLC): Yes
Night vision
Night vision: Yes
LED type: IR
Night vision distance: 50 m
Lens system
Focal length range: 2.8 - 12 mm
Optical zoom: 4.3x
Zoom capability: Yes
Number of lenses: 1
