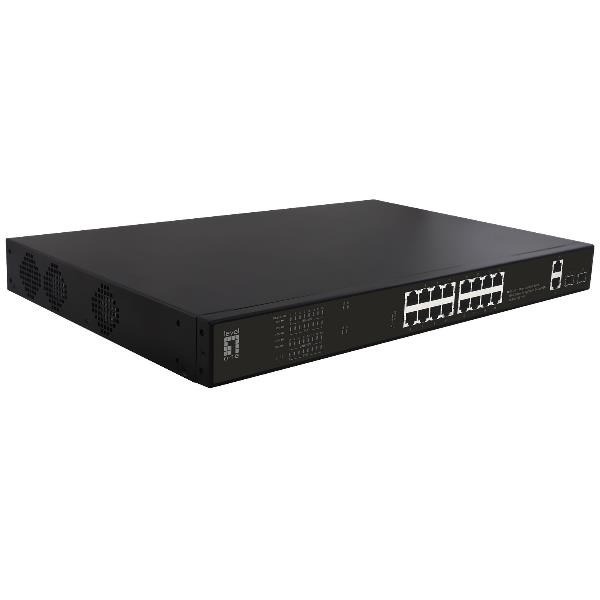

LevelOne GEP-2021 network switch Unmanaged Gigabit Ethernet (10 /100 /1000) Power over Ethernet (PoE) 1U Black

Technical details
Pallet net height: 140.4 cm
Pallet net width: 120 cm
Pallet net length: 80 cm

Design
Form factor: 1U
Rack mounting: Yes
Product colour: Black
LED indicators: Yes
Stackable: Yes

Power
AC input frequency: 50 - 60 Hz
Surge protection: Yes
AC input voltage: 100 - 240 V
Surge protection voltage: 6 kV

Operational conditions
Operating relative humidity (H-H): 0 - 90%
Operating temperature (T-T): -10 - 85 °C
Storage temperature (T-T): -40 - 90 °C
Heat dissipation: 86.435 BTU/h

Management features
Switch type: Unmanaged

Weight & dimensions
Height: 44 mm
Weight: 4 kg
Depth: 442 mm
Width: 285 mm

Network
Networking standards: IEEE 802.3u, IEEE 802.3z, IEEE 802.1ab, IEEE 802.3at, IEEE 802.3, IEEE 802.1af
VLAN support: Yes
10G support: No

Performance
MTBF (PoE): 250000 h
Flash memory: 4 MB
Built-in processor: Yes
Processor model: Realtek RTL8382L

Packaging data
Package type: Box
Package height: 530 mm
Package weight: 4.8 kg
Package width: 395 mm
Package depth: 90 mm

Packaging content
Quick start guide: Yes
Cables included: AC
Rack mount kit: Yes

Ports & interfaces
Gigabit Ethernet (copper) ports quantity: 2
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
Fast Ethernet (copper) ports quantity: 16
Basic switching RJ-45 Ethernet ports quantity: 20

Logistics data
Country of origin: China
Harmonized System (HS) code: 85176990

Data transmission
MAC address table: 8000 entries
Packet buffer memory: 29.8 MB

Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 15.4 W
Power over Ethernet (PoE) ports quantity: 16
Total Power over Ethernet (PoE) budget: 270 W
Power over Ethernet (PoE): Yes

Optical fiber
Transmission distance (max): 0.25 km
