Technical details
Iris: Yes
Number of video streams: 2
Back light compensation method: Y
Design
Product colour: White, Black
Protection features: Vandal proof
Mounting type: Ceiling/wall
Country of origin: Taiwan
LED indicators: Power
Form factor: Dome
Power
Power source type: PoE
Power over Ethernet (PoE): Yes
Power consumption (typical): 2.91 W
Operational conditions
Operating temperature (T-T): -10 - 50 °C
Operating relative humidity (H-H): 10 - 85%
Management features
Reset button: Yes
Weight & dimensions
Weight: 201 g
Width: 110 mm
Height: 110 mm
Depth: 58 mm
Network
Bluetooth: No
Ethernet interface type: Fast Ethernet
Wi-Fi: No
Supported network protocols: TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Ethernet LAN: Yes
System requirements
Windows operating systems supported: Windows Vista Enterprise, Windows 7 Professional, Windows Vista Business x64, Windows XP Professional, Windows 7 Home Basic x64, Windows Vista Home Basic, Windows 8, Windows XP Professional x64, Windows Vista Ultimate x64, Windows 7 Enterprise, Windows 7 Home Premium, Windows 7 Starter, Windows Vista Home Premium, Windows XP Home, Windows 7 Starter x64, Windows Vista Business, Windows Vista Ultimate, Windows 7 Ultimate x64, Windows Vista Enterprise x64, Windows 7 Home Premium x64, Windows 7 Enterprise x64, Windows Vista Home Basic x64, Windows 7 Professional x64, Windows 7 Home Basic, Windows 7 Ultimate, Windows Vista Home Premium x64, Windows XP Home x64
Certification: CE, FCC, IK08
Performance
Connectivity technology: Wired
PTZ control: Yes

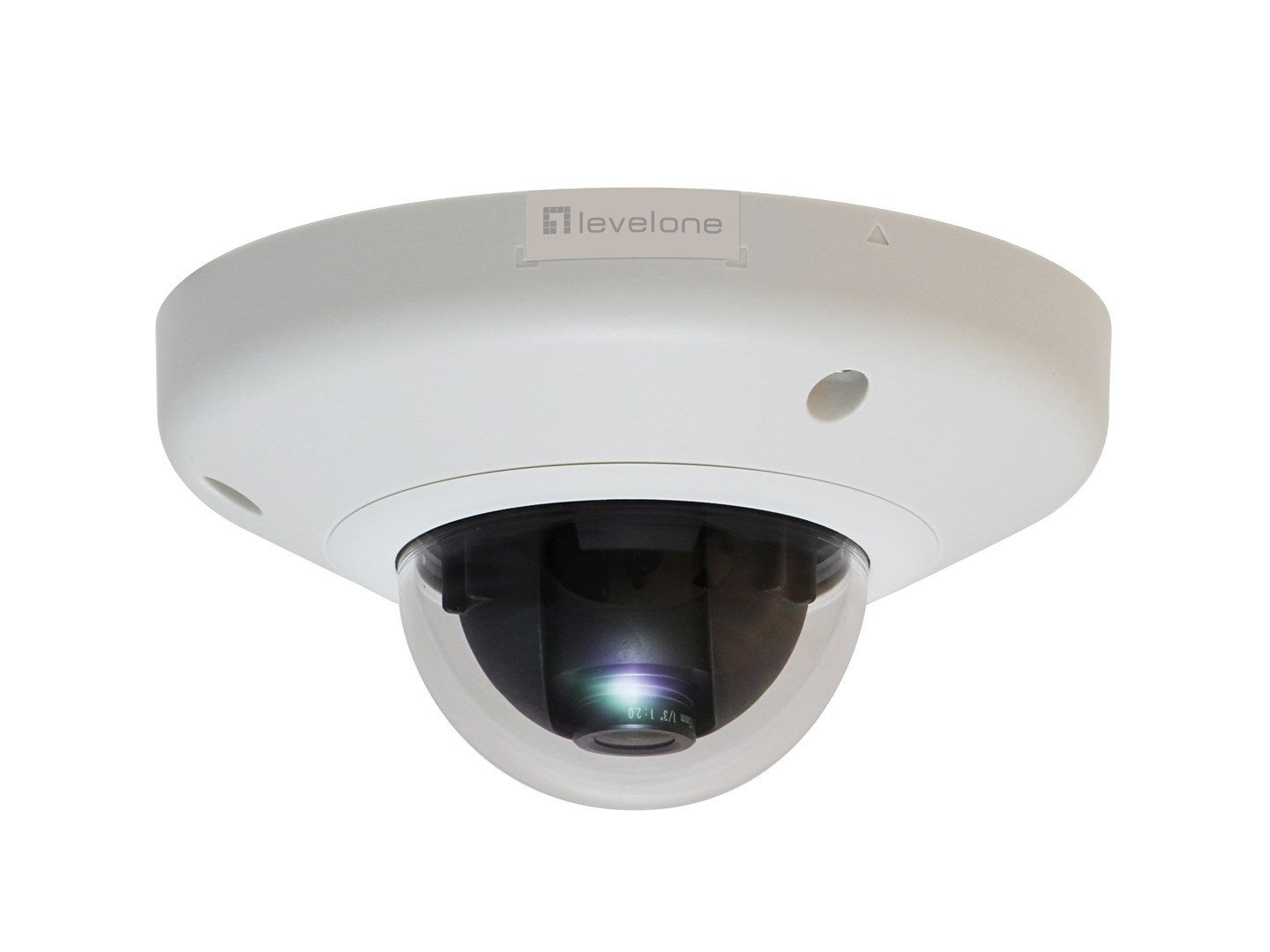

Type: IP security camera
Packaging data
Package height: 112 mm
Package weight: 199 g
Package depth: 169 mm
Package width: 169 mm
Packaging content
Screws included: Yes
Number of cameras: 1
Quick installation guide: Yes
Resource CD: Yes
Audio
Voice codecs: G.711
Built-in microphone: No
Storage
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSDHC, MicroSDXC, MicroSD (TransFlash)
Maximum memory card size: 64 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Interface: RJ-45
Camera
Lens viewing angle, horizontal: 83.3°
Minimum illumination: 0.1 lx
Camera shutter type: Electronic
White balance: Auto
Camera shutter speed: 1/5 - 1/10000 s
Logistics data
Harmonized System (HS) code: 85258900
Master (outer) case gross weight: 5.7 kg
Master (outer) case height: 342 mm
Products per master (outer) case: 12 pc(s)
Master (outer) case length: 350 mm
Master (outer) case width: 350 mm
Image sensor
Progressive scan: Yes
Sensor type: CMOS
Optical sensor size: 25.4 / 3.2 mm (1 / 3.2")
Video
Full HD: Yes
Video compression formats: M-JPEG, H.264
Supported graphics resolutions: 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 320 x 240, 1280 x 720 (HD 720)
Back Light Compensation (BLC): Yes
Video streaming: Yes
Noise reduction: Yes
Image quality adjustment: Contrast, Brightness, Sharpness, Saturation
Maximum resolution: 2048 x 1536 pixels
Supported video modes: 720p, 240p, 480p, 1080p
Frame rate: 30 fps
Automatic gain control: Yes
Total megapixels: 3 MP
Video formats supported: Raw
Night vision
Night vision: No
Lens system
Fixed focus: Yes
Zoom capability: Yes
Number of lenses: 1
Fixed focal length: 2.93 mm
Focus adjustment: 2.0
Sustainability
Compliance certificates: RoHS
