Design
International Protection (IP) code: IP68
Country of origin: Taiwan
Form factor: Dome
IK code: IK10
Product colour: White
Protection features: Vandal proof
LED indicators: Power
Mounting type: Ceiling/wall
Power
Power source type: PoE
Power over Ethernet (PoE): Yes
DC output voltage: 12
Power consumption (Power over Ethernet (PoE)): 12.95 W
Security
IP address filtering: Yes
HTTPS encryption: Yes
Password protection type: User
Password protection: Yes
Alert notification type: E-mail
Operational conditions
Operating temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 80%
Management features
Reset button: Yes
Weight & dimensions
Diameter: 11.5 cm
Depth: 115 mm
Height: 87 mm
Width: 115 mm
Weight: 835 g
Network
Ethernet LAN: Yes
Networking standards: IEEE 802.3af
Bluetooth: No
Ethernet interface type: Fast Ethernet
Wi-Fi: No
Quality of Service (QoS) support: Yes
Number of users: 16 user(s)
Certification: CF/FCC/UL
Performance

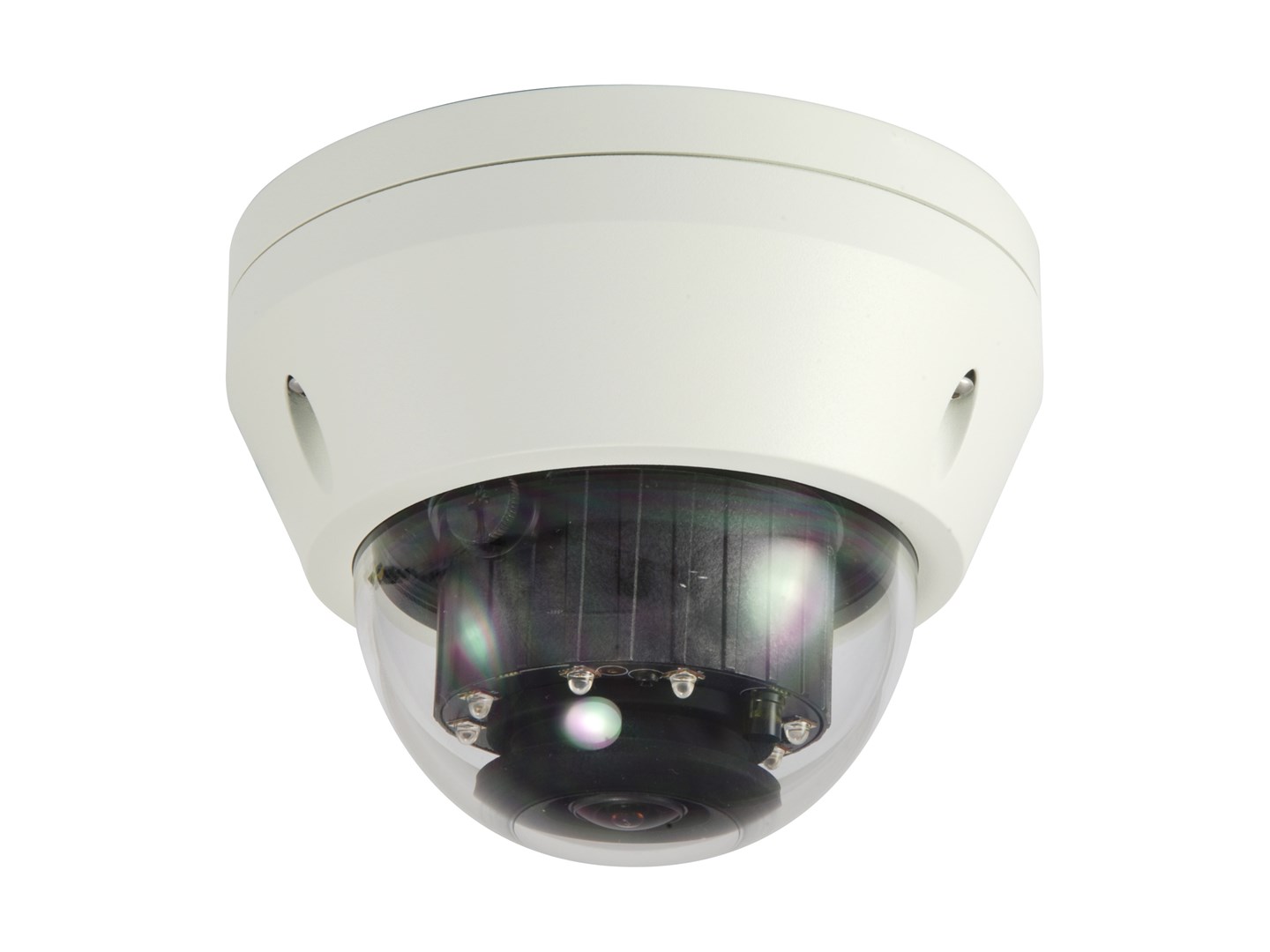

Type: IP security camera
Wide Dynamic Range (WDR): Yes
Connectivity technology: Wired
Day/night mode: Yes
Placement supported: Indoor & outdoor
Infrared (IR) cut-off filter: Yes
Packaging data
Package depth: 132 mm
Package weight: 835 g
Package type: Box
Package width: 143 mm
Package height: 173 mm
Packaging content
Number of cameras: 1
Screws included: Yes
Resource CD: Yes
Storage
Compatible memory cards: MicroSDXC, MicroSDHC
Card reader integrated: Yes
Built-in HDD: No
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Interface: RJ-45
DC-in jack: Yes
Camera
Camera shutter speed: 1 - 100000 s
Field of view (FOV) angle: 129°
Logistics data
Products per master (outer) case: 16 pc(s)
Harmonized System (HS) code: 85258900
Master (outer) case height: 580 mm
Master (outer) case length: 350 mm
Master (outer) case gross weight: 15.6 kg
Master (outer) case width: 270 mm
Image sensor
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Video
Supported graphics resolutions: 640 x 480 (VGA), 320 x 240, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 1280 x 960, 800 x 600 (SVGA), 1280 x 720 (HD 720)
Total megapixels: 3 MP
Video formats supported: Raw
Maximum resolution: 2048 x 1536 pixels
Frame rate: 30 fps
Video compression formats: H.265, H.264, M-JPEG
Night vision
Night vision distance: 30 m
LED type: IR
Night vision: Yes
Lens system
Maximum aperture number: 1.8
Fixed focal length: 2.1 mm
Number of lenses: 1
