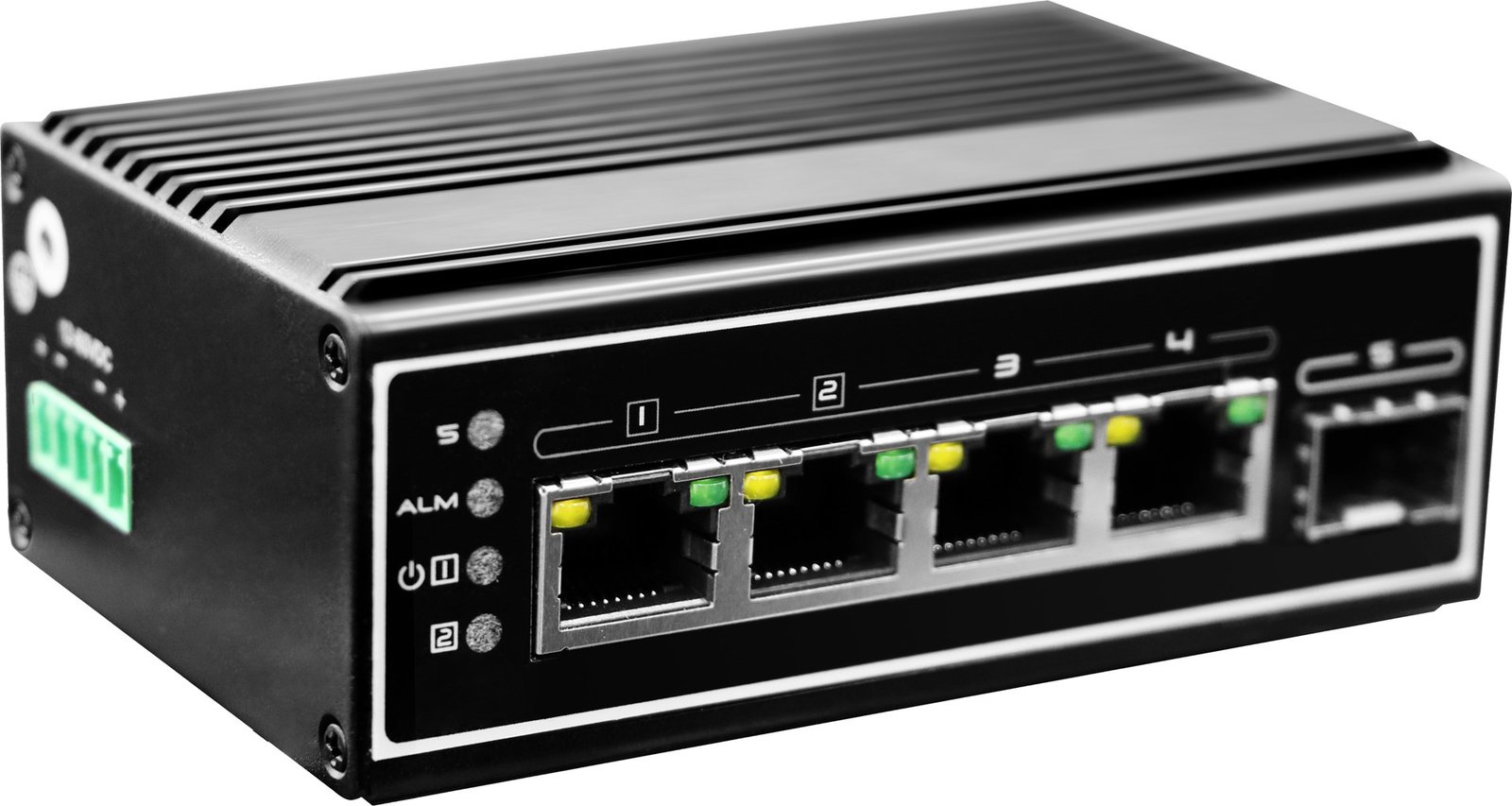

LevelOne IGP-0502 network switch Unmanaged Gigabit Ethernet (10 /100 /1000) Power over Ethernet (PoE) Black

Technical details
Pallet net length: 80 cm
Pallet net width: 120 cm
Pallet net height: 150 cm

Design
Stackable: No
DIN rail mounting: Yes
Rack mounting: No
Product colour: Black
LED indicators: Activity, Link, Power
Wall mountable: Yes

Power
DC input voltage: 48 - 57 V
Power source: DC
Power consumption (typical): 5 W

Operational conditions
Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Management features
Switch type: Unmanaged

Weight & dimensions
Weight: 350 g
Height: 99 mm
Depth: 50 mm
Width: 65 mm

Network
Ethernet LAN data rates: 1000 Mbit/s
Auto MDI/MDI-X: Yes
Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3u, IEEE 802.3z
10G support: No

Performance
Internal memory: 1 MB

Packaging data
Package depth: 62 mm
Package weight: 400 g
Package height: 130 mm
Package width: 110 mm
Package type: Box

Packaging content
Quick start guide: Yes

Ports & interfaces
Gigabit Ethernet (copper) ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 1
Basic switching RJ-45 Ethernet ports quantity: 4

Logistics data
Country of origin: China
Harmonized System (HS) code: 85176990

Data transmission
Jumbo frames: 9000
MAC address table: 8000 entries
Jumbo frames support: Yes
Switching capacity: 10 Gbit/s

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 120 W
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet (PoE): Yes
