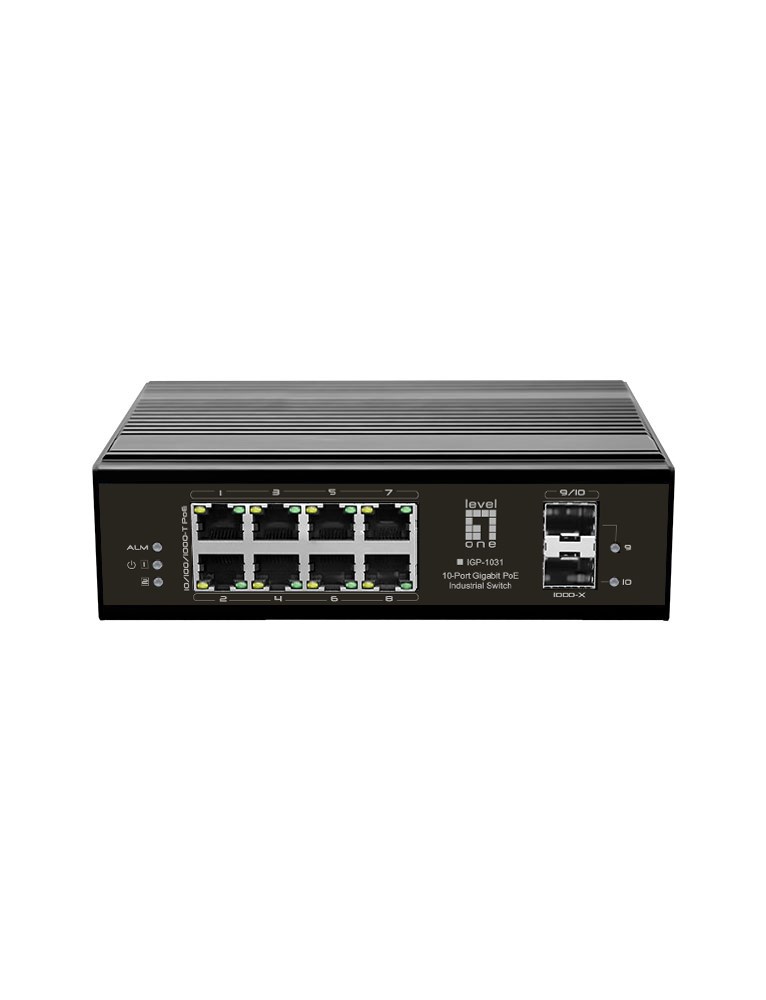

LevelOne IGP-1031 network switch Gigabit Ethernet (10 /100 /1000) Power over Ethernet (PoE) Black

Technical details
Pallet net width: 120 cm
Pallet net length: 80 cm
Pallet net height: 150 cm

Design
Product colour: Black
Stackable: No
LED indicators: Yes
Rack mounting: No
DIN rail mounting: Yes

Power
DC input voltage: 48 - 57 V
Surge protection: Yes
Power supply included: No
Surge protection voltage: 6 kV

Operational conditions
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -40 - 75 °C
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions
Depth: 50 mm
Weight: 1 kg
Height: 165 mm
Width: 114 mm

Network
Networking standards: IEEE 802.1af, IEEE 802.1ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x

Packaging data
Package depth: 74 mm
Package type: Box
Package width: 181 mm
Package weight: 1.05 kg
Package height: 270 mm

Packaging content
Quick start guide: Yes

Ports & interfaces
SFP module slots quantity: 2
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8

Logistics data
Harmonized System (HS) code: 85176990
Country of origin: China

Data transmission
MAC address table: 8000 entries

Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 8
Power over Ethernet (PoE): Yes
