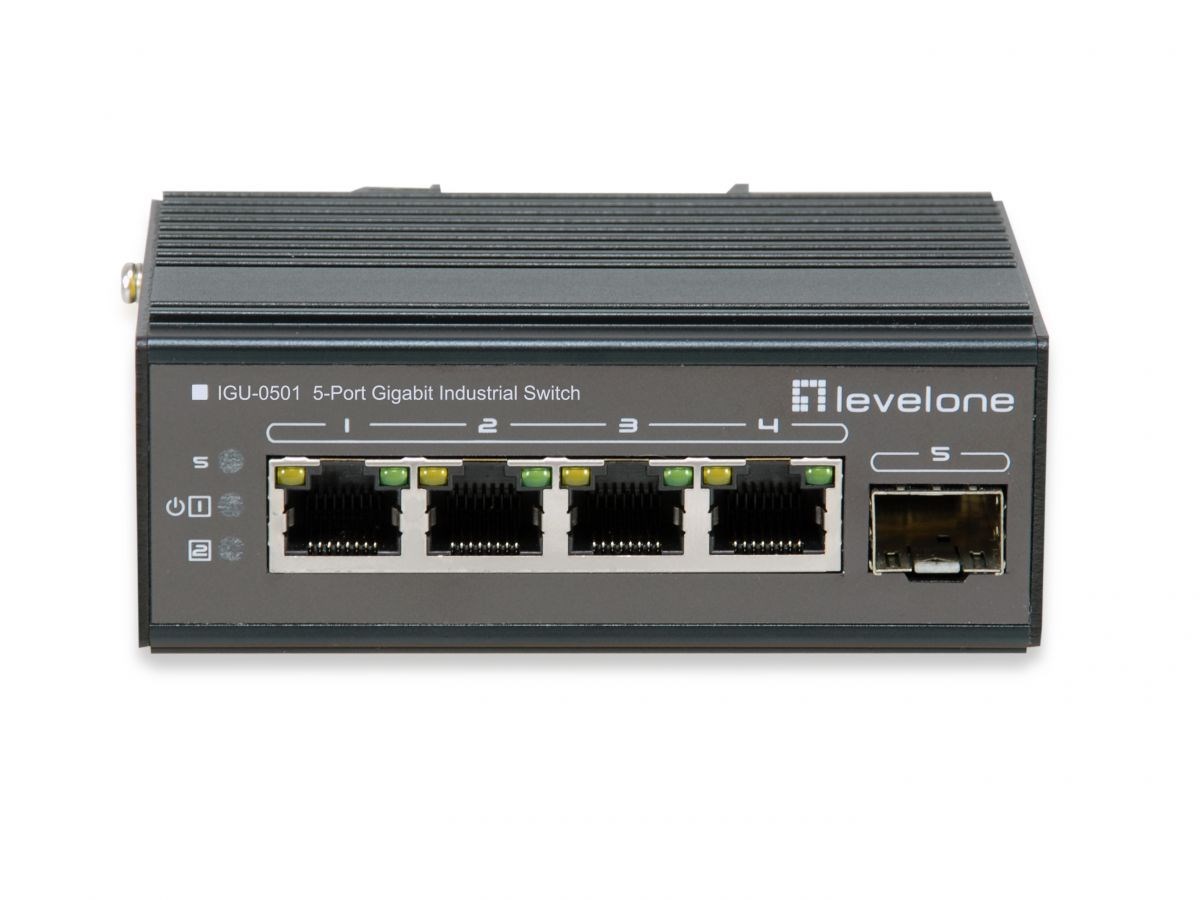

LevelOne IGU-0501 network switch Gigabit Ethernet (10 /100 /1000) Black

Technical details
Pallet net length: 80 cm
Pallet net width: 120 cm
Pallet net height: 150 cm

Design
Rack mounting: No
Product colour: Black
LED indicators: Yes
DIN rail mounting: Yes
Stackable: No

Power
Power source: DC
Surge protection: Yes
Surge protection voltage: 6 kV
Power supply included: No

Operational conditions
Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 85 °C
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions
Weight: 350 g
Depth: 50 mm
Width: 65 mm
Height: 99 mm

Network
Networking standards: IEEE 802.3z, IEEE 802.3x, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab
Copper ethernet cabling technology: 100BASE-TX, 1000BASE-X, 1000BASE-T
10G support: No
Flow control support: Yes

Performance
Mean time between failures (MTBF): 400000 h

Packaging data
Package type: Box
Package depth: 62 mm
Package weight: 400 g
Package width: 110 mm
Package height: 130 mm

Packaging content
Quick start guide: Yes

Ports & interfaces
SFP module slots quantity: 1
Basic switching RJ-45 Ethernet ports quantity: 4
Gigabit Ethernet (copper) ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Logistics data
Country of origin: China
Harmonized System (HS) code: 85176990

Data transmission
Switching capacity: 10 Gbit/s
Packet buffer memory: 1 MB
MAC address table: 8000 entries

Power over Ethernet (PoE)
Power over Ethernet (PoE): No
