Design Country of origin: China Mounting type: Wall Product colour: Black LED indicators: Power, Activity
Power Output voltage: 36 - 57 V Power over Ethernet (PoE): Yes Power consumption (typical): 5 W
Operational conditions Operating temperature (T-T): -40 - 75 °C Storage relative humidity (H-H): 0 - 95% Operating relative humidity (H-H): 0 - 95% Storage temperature (T-T): 0 - 90 °C
Weight & dimensions Weight: 380 g Receiver height: 6.4 cm Depth: 73.5 mm Height: 44.3 mm Receiver depth: 16.2 cm Width: 125.8 mm Receiver weight: 630 g Receiver width: 21.1 cm

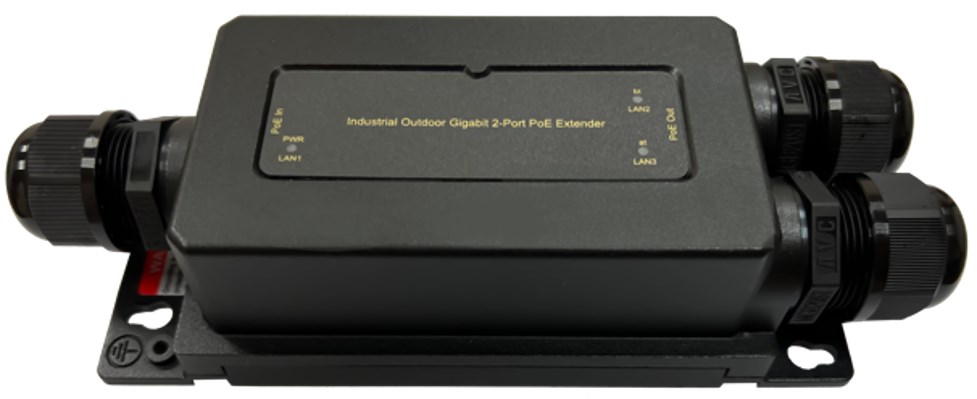

Performance Plug and Play: Yes International Protection (IP) code: IP67 Type: Network repeater Maximum transfer distance: 100 m
Ports & interfaces Power over Ethernet (PoE) ports quantity: 3
Logistics data Products per master (outer) case: 12 pc(s) Pallet gross length: 80 cm Master (outer) case height: 260 mm Master (outer) case length: 360 mm Pallet gross width: 120 cm Master (outer) case width: 370 mm Pallet height (air): 160 cm Master (outer) case gross weight: 7 kg Master (outer) cases per pallet (air): 15 pc(s)
