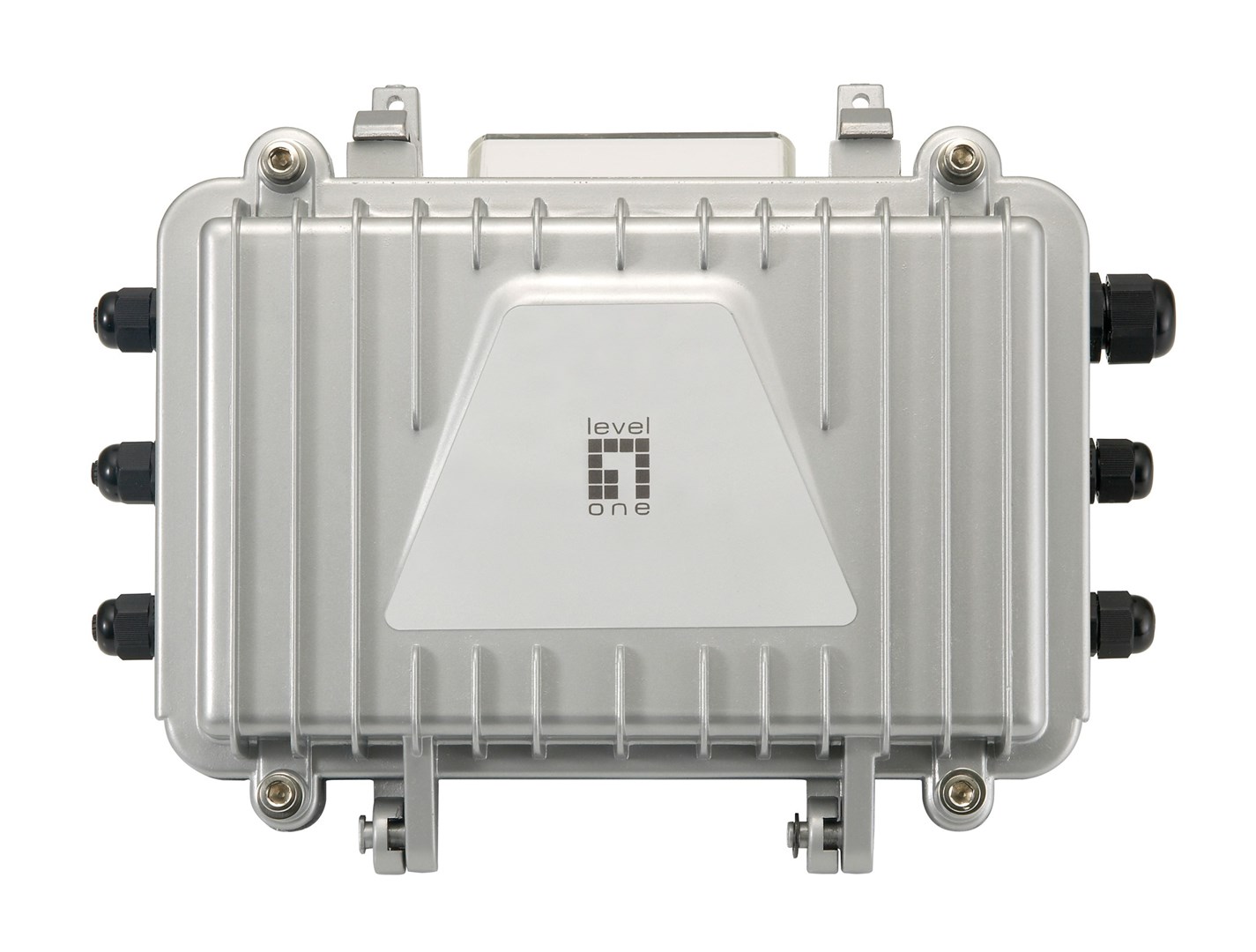

LevelOne PoE over Hybrid Cable Receiver, 4 PoE Outputs, Indoor /Outdoor

Certification: CE/FCC

Design
Country of origin: Taiwan
Product colour: Grey
Mounting type: Wall
LED indicators: PoE, Power, LAN

Power
Power over Ethernet (PoE) voltage range: 47 - 56 V
Power over Ethernet (PoE): Yes
Power consumption (max): 60 W
Power consumption (typical): 20 W

Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -40 - 60 °C
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): 0 - 60 °C

Weight & dimensions
Height: 72 mm
Depth: 200 mm
Weight: 1 kg
Width: 240 mm

Network
Networking standards: IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3af
Cabling technology: 10/100Base-T(X)

Performance
International Protection (IP) code: IP66
MAC address table: 1000 entries
Maximum transfer distance: 2000 m
Data transfer rate: 100 Mbit/s
Type: Network receiver
Packet forwarding rate (10 Mbps): 14880 pps
Duplex system: Full, Half
Packet forwarding rate (100 Mbps): 148000 pps
Flow control support: Yes
Auto MDIX IEEE: Yes

Packaging data
Package height: 85 mm
Package weight: 200 g
Package type: Box
Package width: 250 mm
Package depth: 210 mm

Packaging content
Cables included: AC
Quick start guide: Yes

Ports & interfaces
Fiber ports quantity: 1
Ethernet LAN (RJ-45) ports: 4
Power over Ethernet (PoE) ports quantity: 4
Fiber optic connector: LC
Terminal block port: Yes

Logistics data
Harmonized System (HS) code: 85176990
