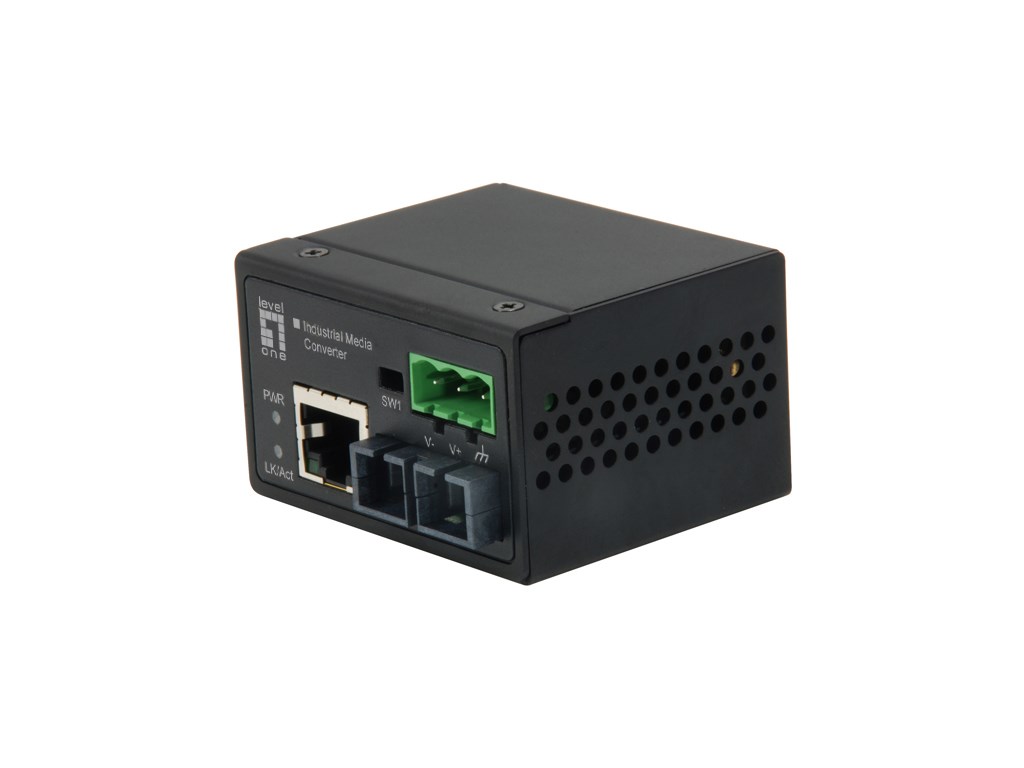

LevelOne RJ45 to SC Fast Ethernet Industrial Media Converter, Multi-Mode Fiber, 2km, -40°C to 75°C

Features
Product colour: Black
LED indicators: Status, Activity, Power
Housing material: Aluminium
Internal: No

Power
Input voltage: 12 - 60 V
Power consumption (typical): 1.44 W

Operational conditions
Storage temperature (T-T): -40 - 75 °C
Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions
Weight: 90 g
Depth: 49 mm
Height: 36 mm
Width: 59 mm

Network
Ethernet LAN data rates: 10, 100
Networking standards: IEEE 802.3, IEEE 802.3x, IEEE 802.3u
Maximum data transfer rate: 100 Mbit/s
Converter output interface: 100Base-FX
Ethernet interface type: Fast Ethernet
Duplex system: Half, Full
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Converter input interface: 10Base-T, 100Base-TX
Store-and-forward: Yes

Performance
Maximum transfer distance: 2000 m
Fiber mode structure: Multi-mode

Packaging data
Package type: Box
Package weight: 260 g
Package depth: 105 mm
Package width: 160 mm
Package height: 65 mm

Packaging content
Quick installation guide: Yes

Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC

Logistics data
Country of origin: Taiwan
Harmonized System (HS) code: 85176990
