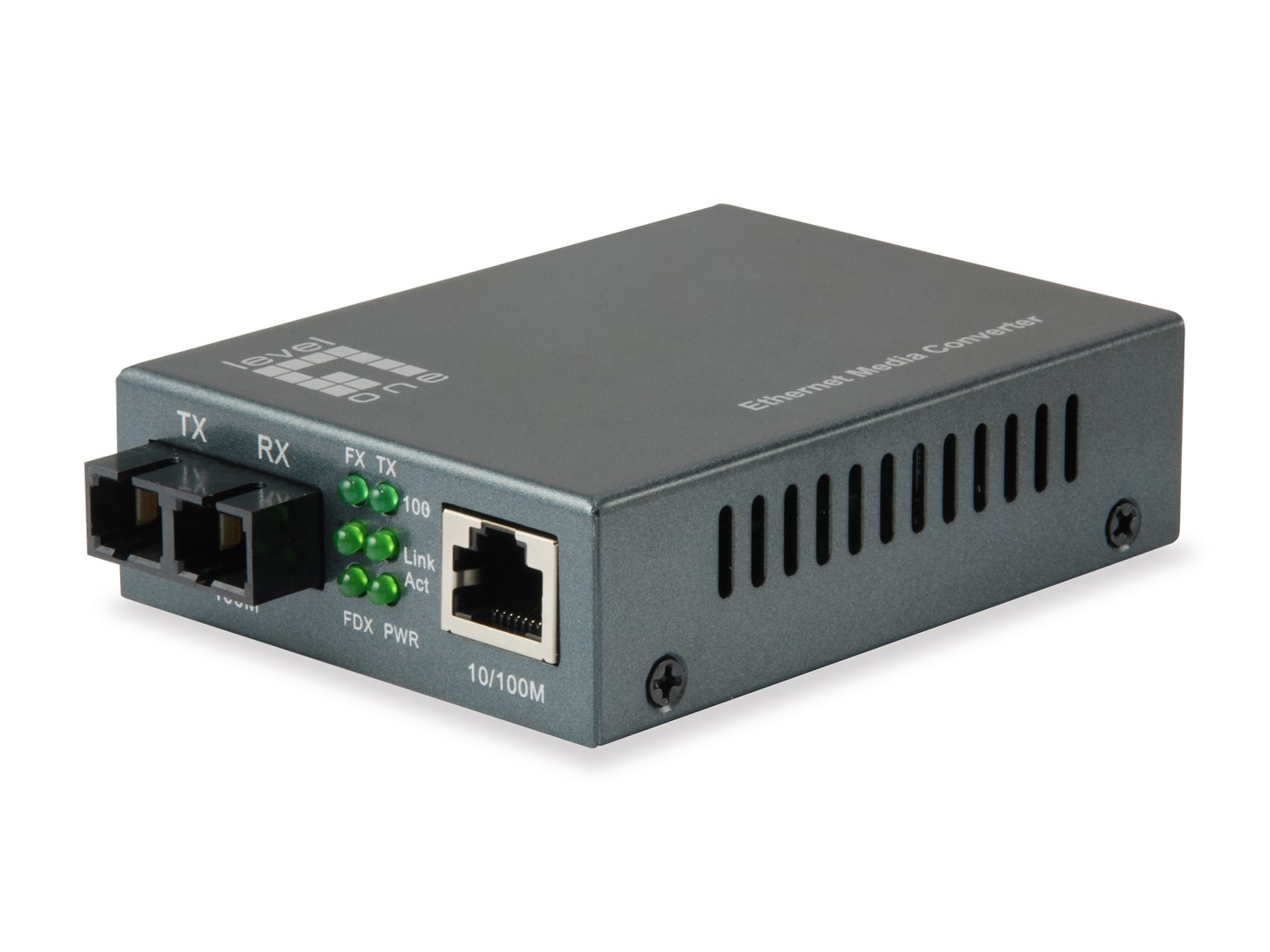

LevelOne RJ45 to SC Fast Ethernet Media Converter, Single-Mode Fiber, 1550nm, 120km

Features
LED indicators: Yes
Product colour: Black
Internal: No

Power
Input voltage: 5 V
Input current: 1 A

Operational conditions
Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -20 - 70 °C

Weight & dimensions
Depth: 71 mm
Height: 26 mm
Weight: 200 g
Width: 94 mm

Network
Converter input interface: 10Base-T, 100Base-TX
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Networking standards: IEEE 802.3x, IEEE 802.3, IEEE 802.3u
Auto MDI/MDI-X: Yes
Ethernet LAN data rates: 100, 10
Converter output interface: 100Base-FX
Maximum data transfer rate: 100 Mbit/s
Fiber ethernet cabling technology: 100BASE-FX
Auto-negotiation: Yes
Store-and-forward: Yes
Ethernet interface type: Fast Ethernet
Flow control support: Yes
Duplex system: Full

Performance
Wavelength: 1550 nm
Maximum transfer distance: 120000 m
Mean time between failures (MTBF): 100000 h
Fiber mode structure: Single-mode

Packaging data
Package height: 58 mm
Package weight: 300 g
Package type: Box
Package width: 230 mm
Package depth: 150 mm

Packaging content
AC adapter included: Yes
Quick installation guide: Yes
Certification: CE

Certificates
Safety: CE
Compliance certificates: RoHS

Ports & interfaces
Fiber ports quantity: 1
Connectivity technology: Wired
DC-in jack: Yes
Ethernet LAN (RJ-45) ports: 1
Fiber optic connector: SC

Logistics data
Products per master (outer) case: 40 pc(s)
Country of origin: China
Master (outer) case length: 420 mm
Master (outer) case width: 440 mm
Master (outer) case height: 305 mm
Master (outer) case gross weight: 32 kg
Harmonized System (HS) code: 85176990
