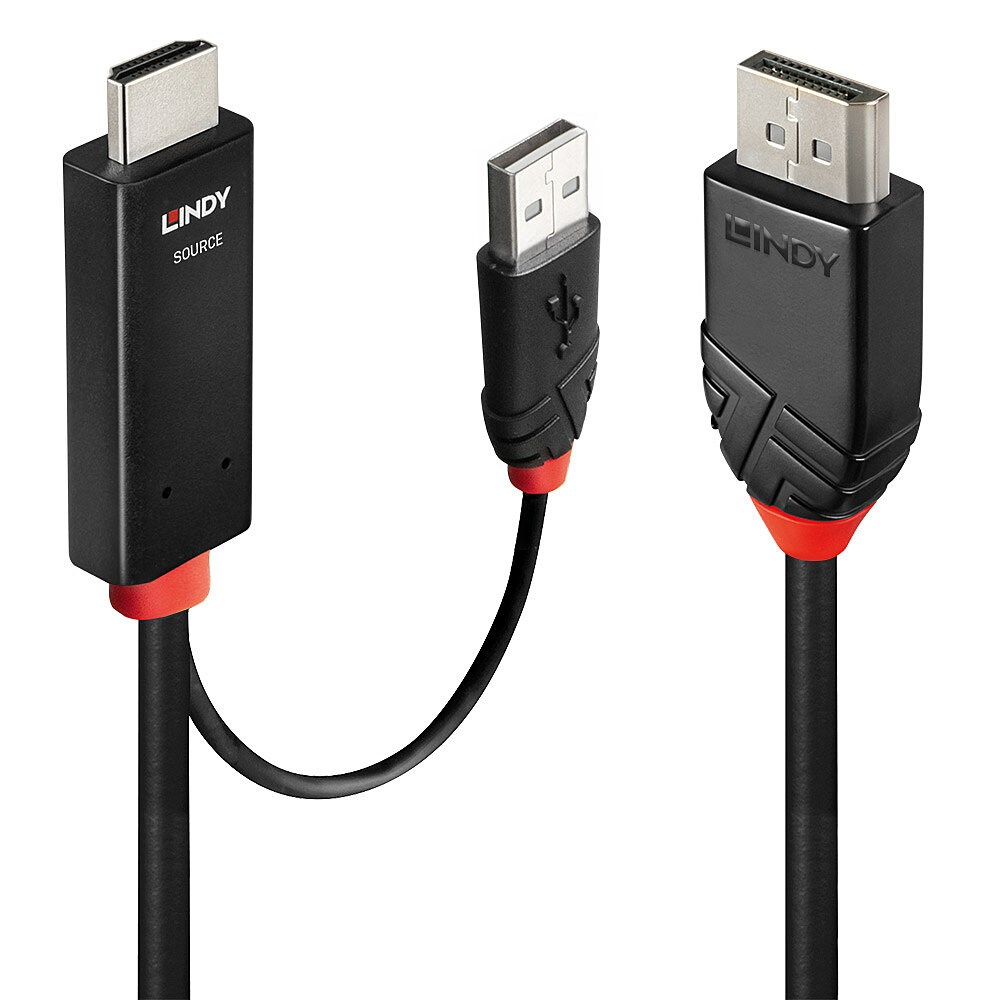

Features AWG wire size: 30 Data transfer rate: 21.6 Gbit/s High Dynamic Range (HDR) supported: Yes Connector 1 gender: Male Colour sampling: 4:2:2, 4:4:4 Connector 1 form factor: Straight Bend radius (min): 3.6 cm Jacket material: Polyvinyl chloride (PVC) DisplayPort version: 1.2 Supported video modes: 2160p Connector 2 gender: Male Connector contacts plating: Nickel Connector 1: HDMI + USB Type-A Maximum resolution: 4096 x 2160 pixels Conductor material: Tinned copper Supported graphics resolutions: 4096 x 2160 HDMI version: 2.0 Cable type: Round cable Connector housing material: Acrylonitrile butadiene styrene (ABS) Product colour: Black Connector 2: DisplayPort Cable length: 3 m Connector 2 form factor: Straight Maximum refresh rate: 60 Hz
Operational conditions Operating temperature (T-T): -20 - 40 °C Storage temperature (T-T): -40 - 80 °C
Weight & dimensions Connector 3 dimensions (WxDxH): 38.9 x 19.7 x 12 mm Connector 1 dimensions (WxDxH): 50 x 20.9 x 12.7 mm Connector 2 dimensions (WxDxH): 35 x 15.5 x 7.8 mm Cable diameter: 6 mm
