Certification: CE, UKCA, FCC, RoHS, REACH
Design
LED indicators: Yes
Product colour: Black
Housing material: Metal
Power
Power over Ethernet (PoE): Yes
Input current: 0.25 A
Included power plug types: UK, EU, AU, US
Output voltage: 24 V
Output current: 0.5 A
Power note: 3.5/1.35mm DC
Operational conditions
Storage relative humidity (H-H): 0 - 90%
Operating relative humidity (H-H): 0 - 90%
Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -20 - 80 °C
Weight & dimensions
Weight: 300 g
Receiver height: 2.3 cm
Transmitter depth: 6.7 cm
Transmitter width: 6 cm
Receiver depth: 6.7 cm
Receiver width: 6 cm
Transmitter height: 2.3 cm
Performance

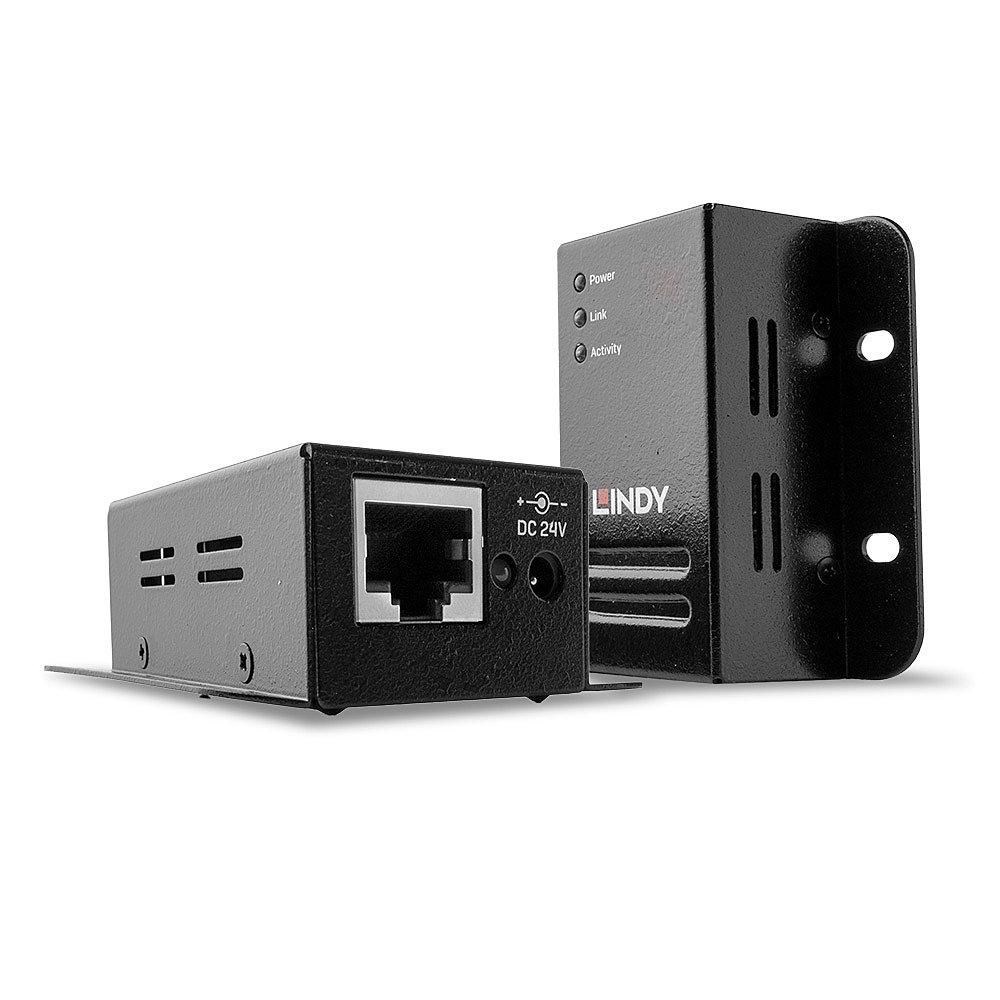

Type: Network transmitter & receiver
Data transfer rate: 480 Mbit/s
Maximum transfer distance: 50 m
Cable types supported: Cat6, Cat5, Cat5e
Chipset: NS1021
Plug and Play: Yes
Packaging data
Package type: Box
Package weight: 400 g
Package width: 185 mm
Package height: 55 mm
Package depth: 140 mm
Packaging content
Cables included: USB Type-A to USB Type-B
Manual: Yes
Ports & interfaces
DC-in jack: Yes
USB 2.0 ports quantity: 2
RJ-45 ports quantity (receiver): 1
RJ-45 ports quantity (transmitter): 1
Logistics data
Harmonized System (HS) code: 85176990
Safety warning
Warnings: Keep away from children., Do not connect devices with higher power consumption than recommended., Do not expose to extreme temperatures or moisture.
