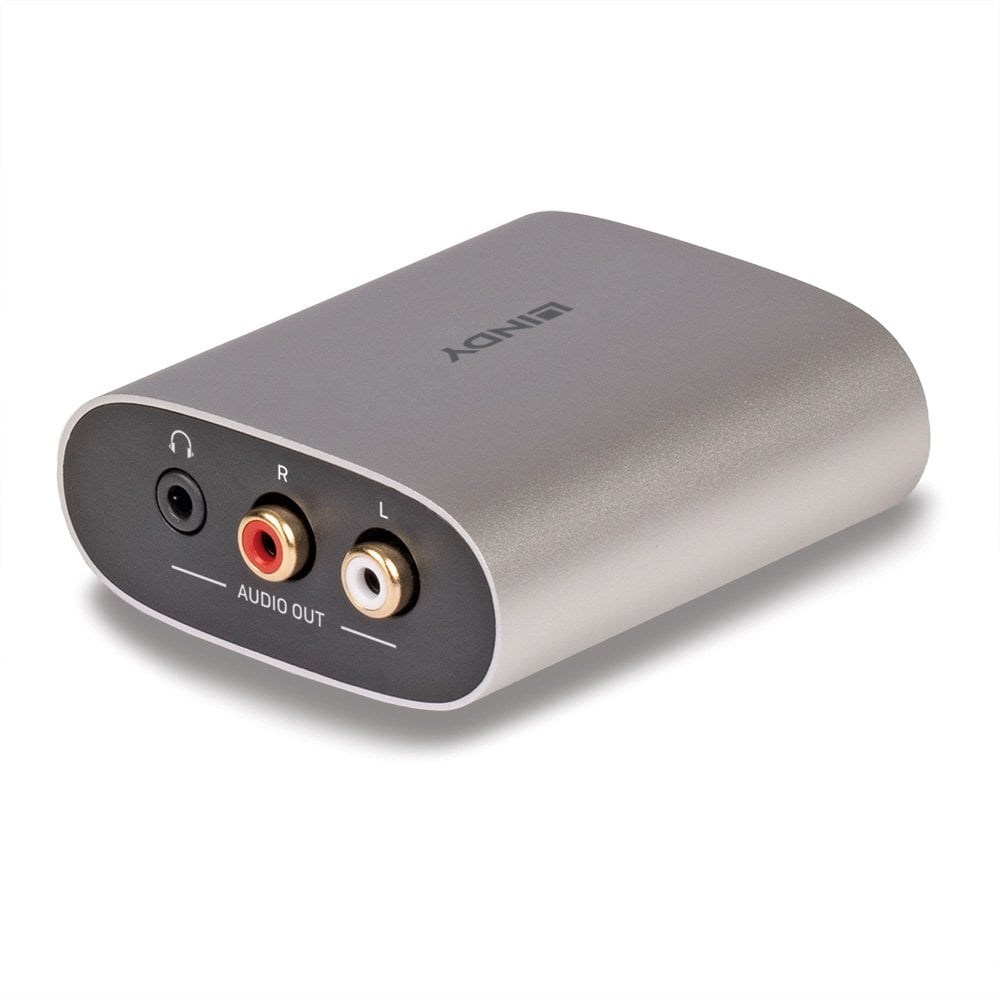

Lindy HDMI ARC Audio Extractor

Certification: California Proposition 65

Technical details
Warranty period: 2 year(s)
Compliance certificates: RoHS, CE, REACH, Federal Communications Commission (FCC)
Sustainability compliance: Yes
Output impedance: 100 Ω
Housing material: Plastic
CEC pass-through: Yes
Supported sample rates: 192 kHz
HDMI version: 1.4
Product colour: Silver
Chipset: SPHE8107S
Signal-to-Noise Ratio (SNR): 101 dB
Frequency range: 20 - 20000 Hz

Power
Power consumption: 500 mA
Input voltage: 5 V

Operational conditions
Storage temperature (T-T): -20 - 60 °C
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 90%

Weight & dimensions
Weight: 81 g
Width: 70 mm
Height: 27 mm
Depth: 65 mm

Packaging data
Package type: Box
Quantity: 1
Package depth: 105 mm
Package width: 146 mm
Cables included: USB Type-A to Micro-USB Type-B
Package weight: 174 g
Package height: 65 mm
Manual: Yes

Inputs
USB connector type: Micro-USB
HDMI in: 1

Outputs
Audio (L/R) out: 1
Headphone out: Yes
