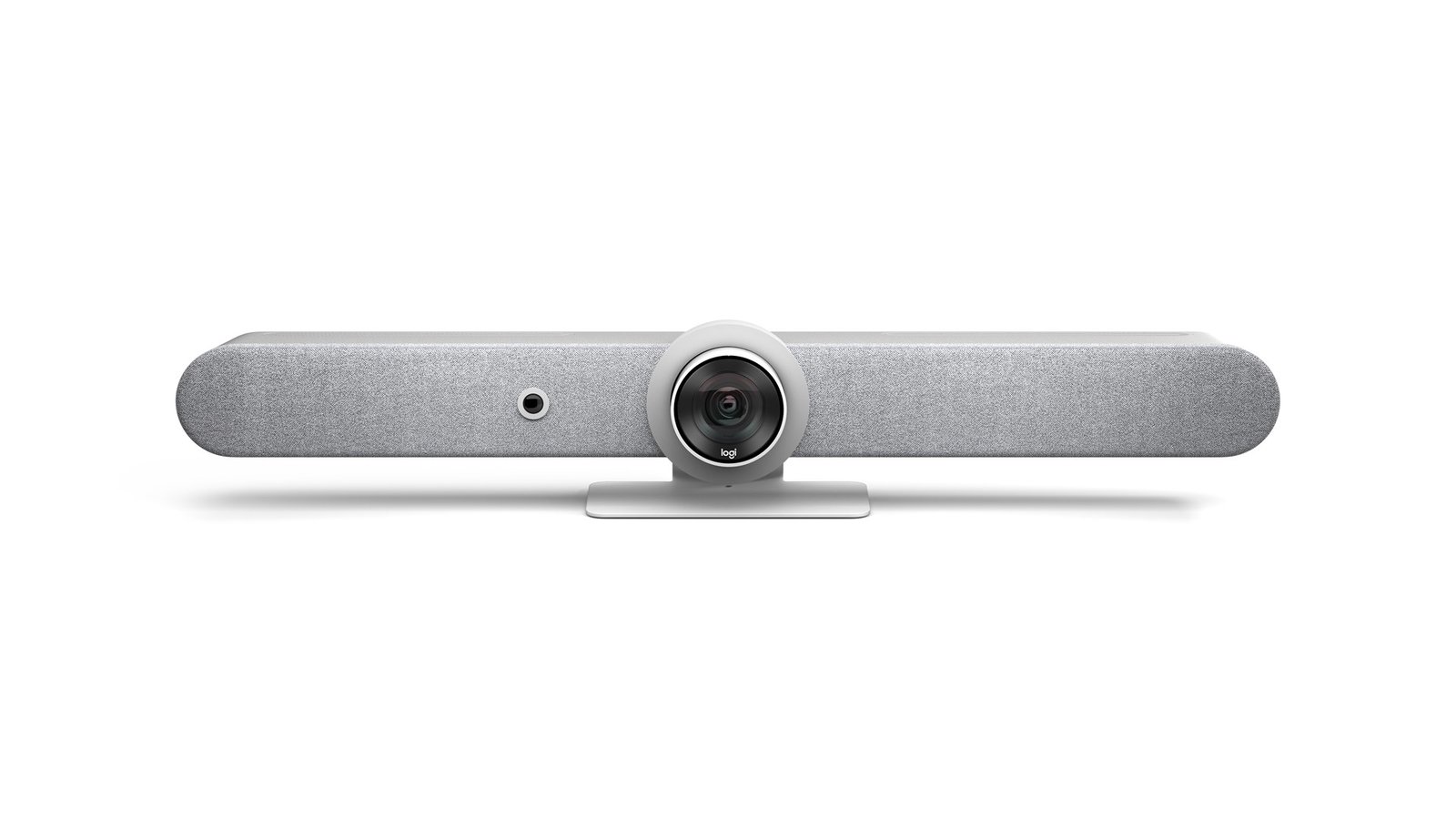

Logitech Rally Bar

Features
Telepresence: No

Power
Number of batteries supported: 1
DC input voltage: 19 V
Battery technology: Lithium
AC input voltage: 100 - 240 V
Current: 4.754 A
Battery capacity: 220 mAh
Power plug type: Type C
Power source type: AC

Operational conditions
Operating relative humidity (H-H): 10 - 95%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Heat dissipation: 64 BTU/h

Weight & dimensions
Width: 910 mm
Depth: 160 mm
Height: 164 mm
Weight: 7.08 kg

Network
Wi-Fi standards: 802.11g, Wi-Fi 5 (802.11ac), 802.11a, 802.11b, Wi-Fi 4 (802.11n)
Ethernet LAN data rates: 1000 Mbit/s, 100, 10
Ethernet LAN: Yes
Security algorithms: 128-bit AES
Wi-Fi: Yes
Supported network protocols: IPv4, IPv6

Performance
Tilt angle range: -15 - 15°
Product colour: White
PTZ control: Yes
Pan range: -25 - 25°
Product type: Group video conferencing system

Packaging data
Package depth: 989 mm
Package height: 218 mm
Package weight: 9.3 kg
Package width: 207 mm
Packaging content: Rally Bar Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main camera and AI Viewfinder User documentation

Packaging content
AC adapter included: Yes
Quick start guide: Yes
Power cable length: 2.5 m
Remote control included: Yes
Batteries included: Yes
Cables included: HDMI, USB Type-A to USB Type-C, DC, AC
HDMI cable length: 2 m

Audio
RMS rated power: 8 W
Microphone pick-up range: 4.5 m
Echo cancellation: Yes
Output voltage Total Harmonic Distortion (THD): 2%
Line-out impedance: 4 Ω
Noise reduction: Yes
Built-in speaker(s): Yes
Sample rates: 0 - 48 kHz
Audio beamforming: Yes
Output level: 92/99 dB

Ports & interfaces
DC-in jack: Yes
Microphone in: Yes
HDMI ports quantity: 3
HDMI input ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
HDMI output ports quantity: 2
USB connector type: USB Type-A, USB Type-C
Ethernet LAN (RJ-45) ports: 1

Camera
Diagonal field of view: 90°
Digital zoom: 3x
Vertical field of view: 52.2°
Horizontal field of view: 82.1°
Optical zoom: 5x
Remote control interface: Bluetooth
Zoom capability: Yes

Battery
Battery capacity: 0.675 Wh

Logistics data
Harmonized System (HS) code: 85176990
Master (outer) case width: 220 mm
Master (outer) case gross weight: 9.91 kg
Master (outer) case length: 1004 mm
Master (outer) case height: 231 mm

Video
HD type: 4K Ultra HD
Supported video modes: 2160p, 900p, 720p, 1440p, 576p
Maximum frame rate: 30 fps

Microphone
Number of microphones: 6
Microphone sensitivity: -36 dB
Sound pressure level (max): 90 dB
Microphone frequency: 90 - 16000 Hz
Microphone direction type: Omnidirectional

Safety warning
Warnings: Avoid contact with water and high humidity., Keep out of the reach of children., Must not be disposed of in the general waste bin, the product requires special disposal.

Computer system
Windows operating systems supported: Yes
Mac operating systems supported: MacOS

Interface module
Interface module Ethernet LAN (RJ-45) ports: 1
