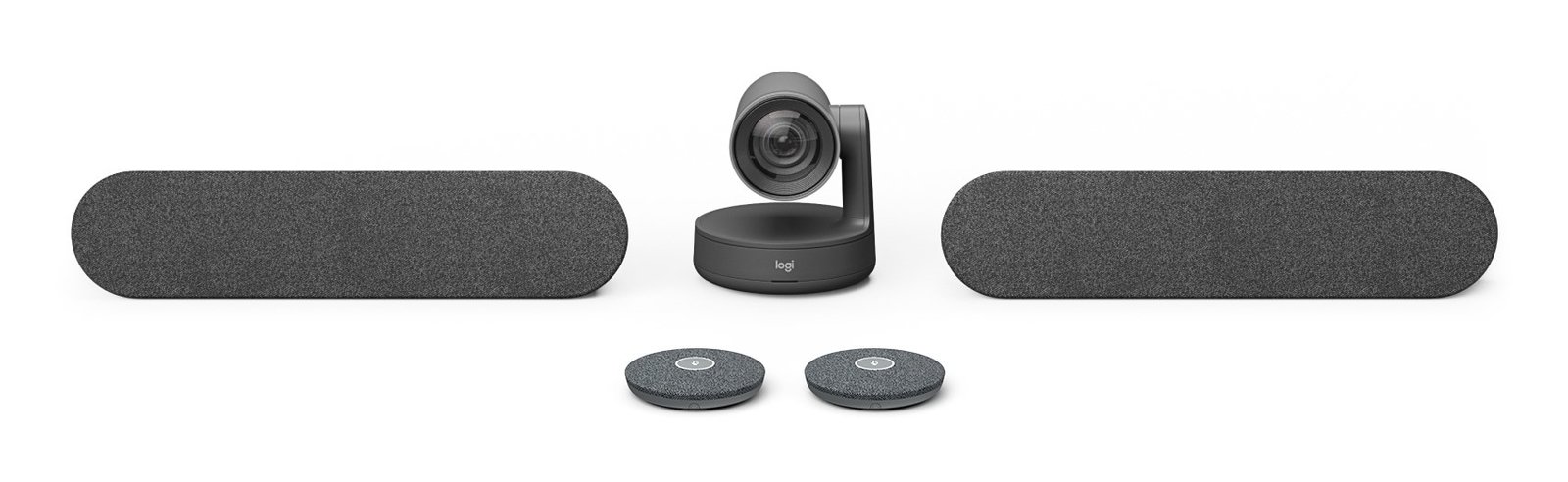

Logitech Rally Ultra-HD ConferenceCam Video System

Features
Cable lock slot type: Kensington
Cable lock slot: Yes
Telepresence: No

Power
Battery technology: Lithium
Battery capacity: 220 mAh
Number of batteries supported: 2
Power source type: AC

Weight & dimensions
Speaker dimensions (WxDxH): 449 x 80 x 103 mm
Microphone dimensions (WxHxD): 102 x 102 x 21 mm
Camera dimensions (WxDxH): 152 x 152 x 182.5 mm

Network
Ethernet LAN: Yes

Performance
Bluetooth: Yes
Pan range: -90 - 90°
Tilt angle range: -90 - 50°
Product colour: Black
Tilt speed: 70 °/sec
Pan speed: 70 °/sec
PTZ control: Yes
Product type: Group video conferencing system
Tripod mounting supported: Yes
Number of persons: 16 person(s)

Packaging data
Package weight: 11.2 kg
Package width: 210 mm
Package depth: 400 mm
Package height: 690 mm
Packaging content: Logitech Rally Rally Camera Rally Display Hub Rally Table Hub Rally Speaker (x1) Rally Mic Pod (x1) Remote control USB Type C to USB Type C USB Type A to USB Type B CAT6A Ethernet cable HDMI Type A (x2) A/C cables (x2) Power Supplies (x2) Documentation Logitech Rally Plus Rally Camera Rally Display Hub Rally Table Hub Rally Speaker (x2) Rally Mic Pod (x2) Remote control USB Type C to USB Type C USB Type A to USB Type B CAT6A Ethernet cable HDMI Type A (x2) A/C cables (x2) Power Supplies (x2) Documentation

Packaging content
Cables included: LAN (RJ-45), HDMI, USB Type-C to USB Type-C, USB Type-A to Micro USB-B, AC
AC adapter included: Yes
Remote control included: Yes
Quick start guide: Yes
Batteries included: Yes
Power cable length: 1.5 m
Camera included: Yes
Microphone included: Yes
External interface module included: Yes
HDMI cable length: 2 m
Speaker included: Yes
Networking cable length: 5 m

Audio
Built-in speaker(s): Yes
Noise reduction: Yes
Frequency range: 300 - 10000 Hz
Echo cancellation: Yes
Output level: 95/100 dB
Microphone pick-up range: 4.5 m
Sample rates: 0 - 48 kHz

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
HDMI ports quantity: 2
USB connector type: USB Type-C, USB Type-B, USB Type-A
Ethernet LAN (RJ-45) ports: 3
DC-in jack: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 2
Line-in: Yes

Camera
Digital zoom: 15x
Zoom capability: Yes
Field of view (FOV) angle: 90°
Focus adjustment: Auto
Number of camera presets: 3

Battery
Battery capacity: 0.675 Wh

Logistics data
Master (outer) case height: 722 mm
Master (outer) case length: 417 mm
Harmonized System (HS) code: 85176990
Master (outer) case gross weight: 12.3 kg
Master (outer) case width: 227 mm

Video
HD type: 4K Ultra HD
Maximum frame rate: 60 fps
Supported video modes: 900p, 1080p, 576p, 720p, 1440p, 2160p

Microphone
Microphone mute: Yes
Number of microphones: 4
Microphone direction type: Omnidirectional
Microphone colour: Black
Microphone frequency: 90 - 16000 Hz
Microphone sensitivity: -27 dB
Sound pressure level (max): 95 dB
Number of microphone arrays: 2

Computer system
Windows operating systems supported: Yes
Mac operating systems supported: Yes, MacOS
Other operating systems supported: ChromeOS
