Technical details
Compliance certificates: UKCA, REACH, Federal Communications Commission (FCC), RoHS, CE
Warranty period: 3 year(s)
Power
Power source type: USB
Power consumption: 130 mA
Input voltage: 5 V
Operational conditions
Drop resistance: 1.2 m
Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Weight & dimensions
Depth: 150 mm
Weight: 110 g
Width: 70 mm
Height: 95 mm
Performance
Mean time between failures (MTBF): 50000 h
Housing material: Acrylonitrile butadiene styrene (ABS)
Product colour: Black
Print contrast: 25%
Packaging data
Package weight: 260 g
Package height: 105 mm
Package width: 195 mm
Package depth: 80 mm
Ports & interfaces
Standard interfaces: USB
Connectivity technology: Wired
Cable length: 1.4 m
Logistics data
Master (outer) case length: 565 mm
Master (outer) case width: 360 mm
Master (outer) case height: 400 mm
Products per master (outer) case: 40 pc(s)
Master (outer) case gross weight: 10.2 kg
Scanning
Linear (1D) barcodes supported: Code 128, GS1 DataBar Expanded, Code 39 (ASCII), UPC-E, GS1 Databar RSS14, JAN-13, MSI, Code 11, EAN-13, EAN-8, UPC-A, Code 39, Interleaved 2 of 5, JAN-8, GS1 Databar Limited, Codabar, ISSN, Code 93, Industrial 2 of 5, Matrix 2 of 5
2D resolution (min): 0.17 mm
2D (matrix & stacked) barcodes supported: Data Matrix, Aztec Code, MicroPDF417, QR Code, Micro QR Code, PDF417
Light levels (direct sunlight): 0 - 100000 lx
Working distance: 32 cm

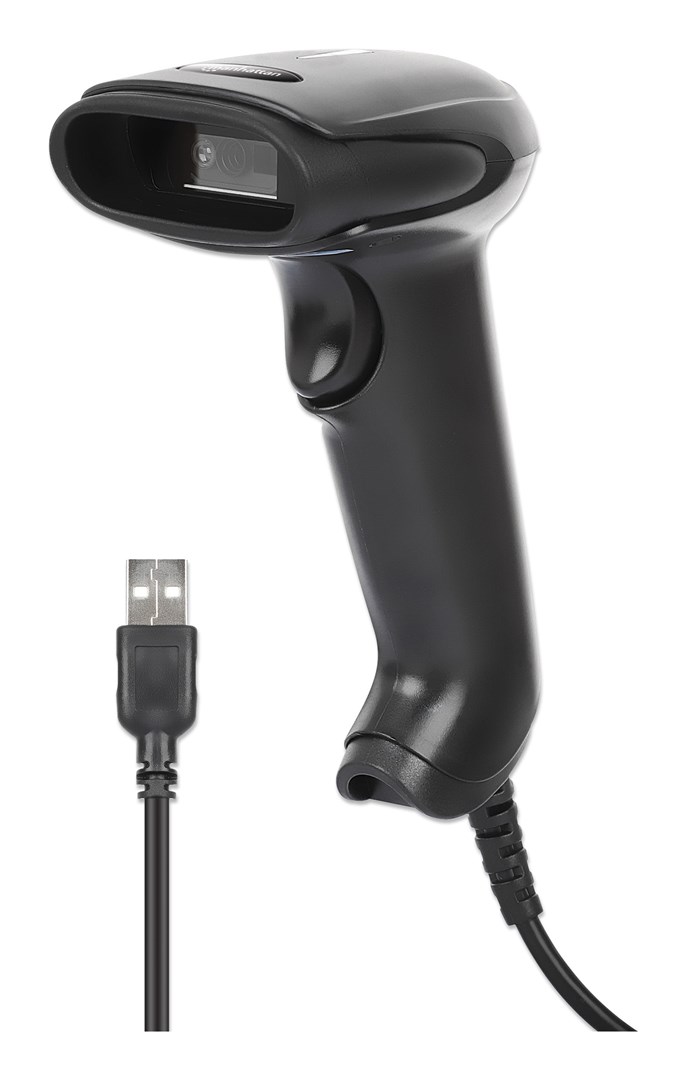

Type: Handheld bar code reader
Vertical field of view: 28°
1D resolution (min): 0.1 mm
Sensor type: LED
Optical sensor resolution (W x H): 640 x 480 pixels
Read rate (max): 100 reads/s
Scanner type: 1D/2D
Horizontal field of view: 36°
