Technical details
Compliance certificates: CE, Federal Communications Commission (FCC)
Power
Input voltage: 5 V
Power consumption: 124 mA
Power source type: USB
Operational conditions
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 85%
Operating temperature (T-T): 0 - 50 °C
Weight & dimensions
Weight: 390 g
Width: 90 mm
Depth: 173.5 mm
Height: 56.2 mm
Certification: FCC, CE
Performance
Housing material: Acrylonitrile butadiene styrene (ABS), Rubber
Product colour: Black
Ports & interfaces
Connectivity technology: Wired
Standard interfaces: USB
Cable length: 1.524 m
Logistics data
Harmonized System (HS) code: 84716070
Scanning

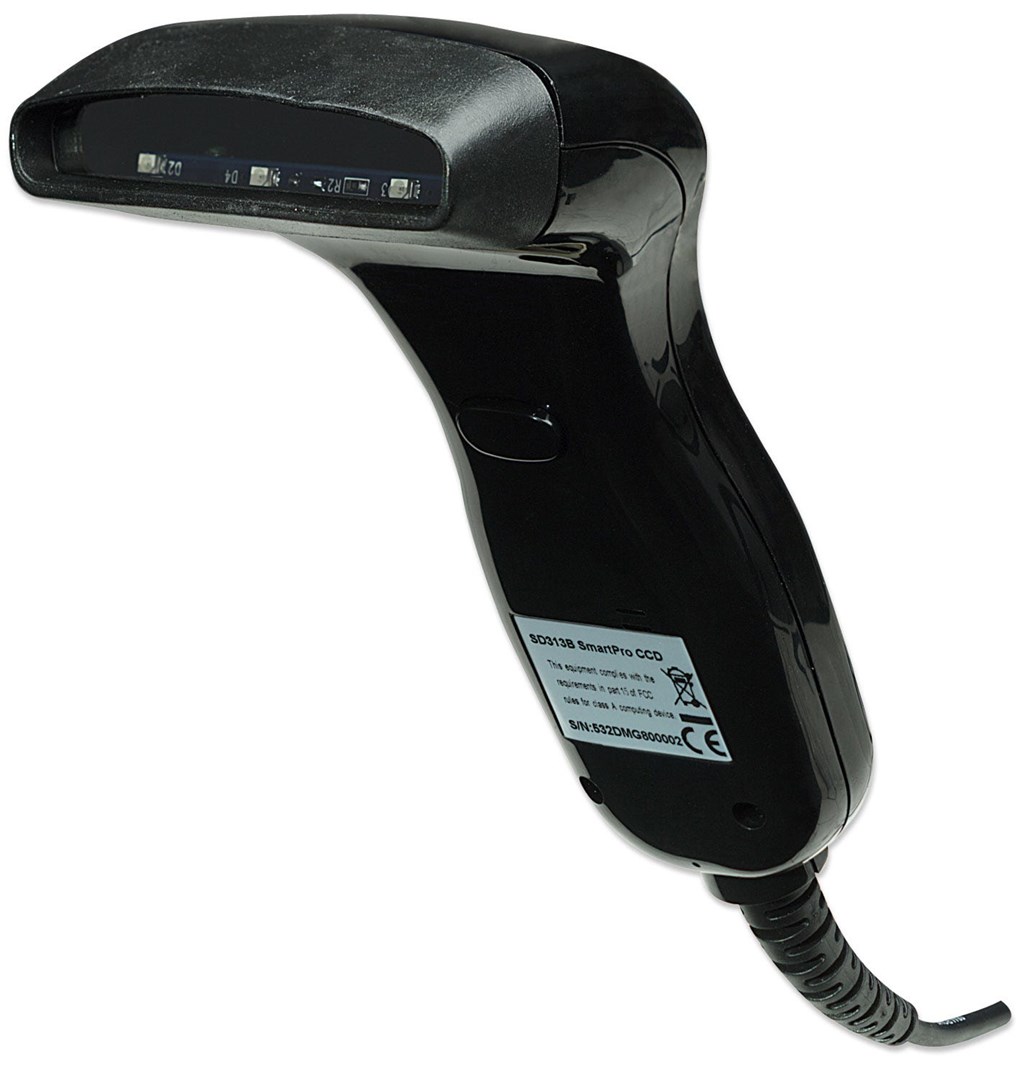

Type: Handheld bar code reader
2D (matrix & stacked) barcodes supported: Not supported
Linear (1D) barcodes supported: JAN, Codabar, Code 128, MSI, Plessey, Code 39, Interleaved 2 of 5, Code 93, Industrial 2 of 5, Telepen, Code 11
Sensor type: CCD
Scanner type: 1D
Read rate (max): 120 reads/s
Maximum scan width: 8 cm
Scanner resolution: 0.1 mm
Light levels (direct sunlight): 0 - 3000 lx
Safety warning
Warnings: Store away from sources of moisture., The appliance should be disposed of in accordance with local electro-waste regulations., Avoid direct contact with eyes.
