Power
Power consumption: 70 mA
Input voltage: 5 V
Operational conditions
Operating relative humidity (H-H): 20 - 95%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Weight & dimensions
Depth: 180 mm
Weight: 150 g
Width: 70 mm
Height: 70 mm
Certification: FCC, CE, RoHS
Performance
International Protection (IP) code: IP54
Housing material: Rubber, Acrylonitrile butadiene styrene (ABS)
LED indicators: Yes
Product colour: Black
Ports & interfaces
Connectivity technology: Wired
Standard interfaces: Keyboard wedge, RS-232, USB
Logistics data
Harmonized System (HS) code: 84716070
Scanning
Linear (1D) barcodes supported: Code 11, GS1-128 (UCC/EAN-128), Code 32, JAN, Code 39, Code 128, Code 93
Read rate (max): 500 reads/s

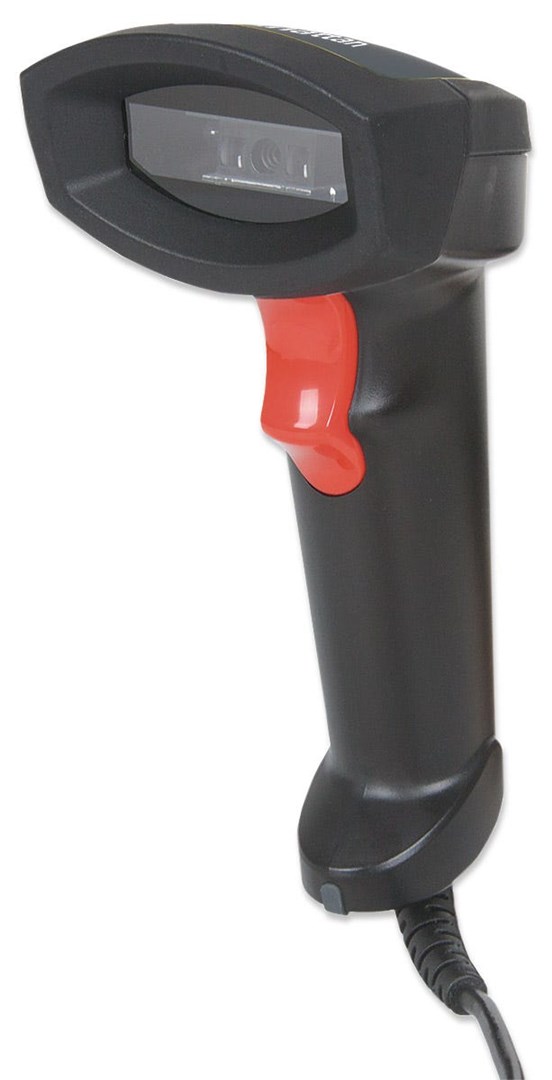

Type: Handheld bar code reader
Wavelength: 632 nm
Sensor type: CCD
2D (matrix & stacked) barcodes supported: Not supported
Working distance: 50 cm
Scanner type: 1D
Maximum scan width: 50 cm
Light levels (direct sunlight): 0 - 10000 lx
