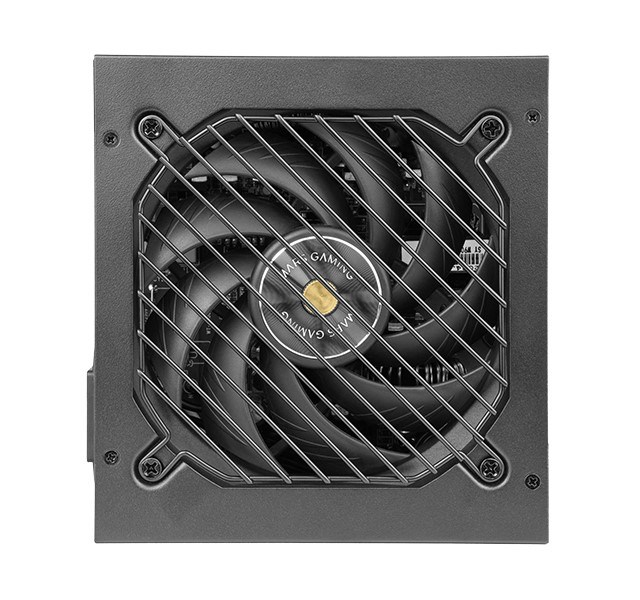

Design Fan diameter: 12 cm Cooling type: Active Product colour: Black Number of fans: 1 fan(s) Fan location: Top
Power Combined power (+12V): 744 W Max output current (+5Vsb): 3 A Combined power (+5V): 130 W AC input voltage: 220 - 240 V Max output current (+3.3V): 25 A AC input frequency: 47 - 63 Hz Power protection features: Over power, Under voltage, Over current, Short circuit, Over voltage Combined power (+3.3V): 130 W Power Factor Correction (PFC) type: Active Max output current (+5V): 62 A Input current: 5 A Combined power (+5Vsb): 15 W Max output current (-12V): 0.5 A Total power: 750 W Combined power (-12V): 6 W Max output current (+12V): 45.5 A Efficiency: 90%
Weight & dimensions Height: 85 mm Width: 150 mm Depth: 145 mm Weight: 1.5 kg
Performance Noise level: 12 dB Purpose: PC Power supply unit (PSU) form factor: ATX 80 PLUS certification: 80 PLUS Bronze
Packaging data Package height: 125 mm Package weight: 1.69 kg Package depth: 235 mm Package width: 205 mm
Ports & interfaces Peripheral (Molex) power connectors (4-pin): 3 PCI Express power connectors (6+2 pin): 2 Number of SATA power connectors: 5 Motherboard power connector: 24-pin ATX CPU power connector (4+4 pin): Yes Cabling type: Non-Modular
