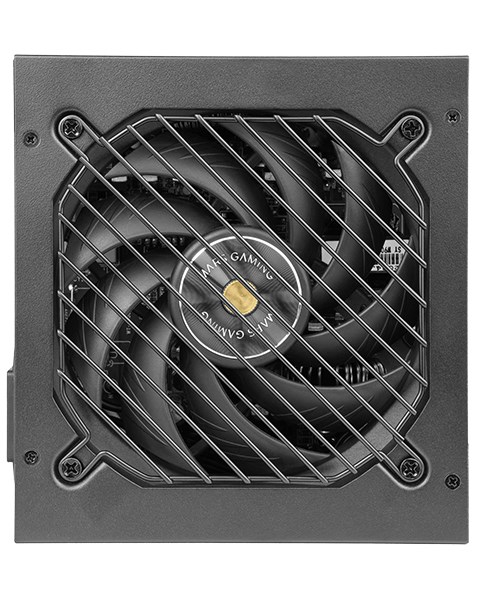

Design Fan location: Top Product colour: Black Cooling type: Active Fan diameter: 12 cm On/off switch: Yes Number of fans: 1 fan(s)
Power AC input voltage: 200 - 240 V Power protection features: Short circuit, Over voltage, Under voltage, Over power, Overcharge Total power: 850 W Max output current (+12V): 70.5 A Input current: 8 A Combined power (-12V): 3.6 W Max output current (+5Vsb): 2.5 A Combined power (+5Vsb): 12.5 W Combined power (+5V): 120 W Combined power (+12V): 846 W Power Factor Correction (PFC) type: Active Combined power (+3.3V): 120 W AC input frequency: 47 - 63 Hz Max output current (+5V): 18 A Power factor: 0.9 Max output current (+3.3V): 18 A Max output current (-12V): 0.3 A
Weight & dimensions Weight: 1.6 kg Depth: 145 mm Height: 86 mm Width: 150 mm
Performance Power supply unit (PSU) form factor: ATX 80 PLUS certification: 80 PLUS Bronze Purpose: PC
Packaging data Package type: Box Package height: 205 mm Package width: 238 mm Package depth: 125 mm
Certificates Compliance certificates: WEEE, CE
Ports & interfaces Motherboard power connector: 24-pin ATX Peripheral (Molex) power connectors (4-pin): 3 Number of SATA power connectors: 6 ATX Power connector (24-pin): Yes PCI Express power connectors (6+2 pin): 4 EPS power connector (4+4 pin): Yes Cabling type: Non-Modular
