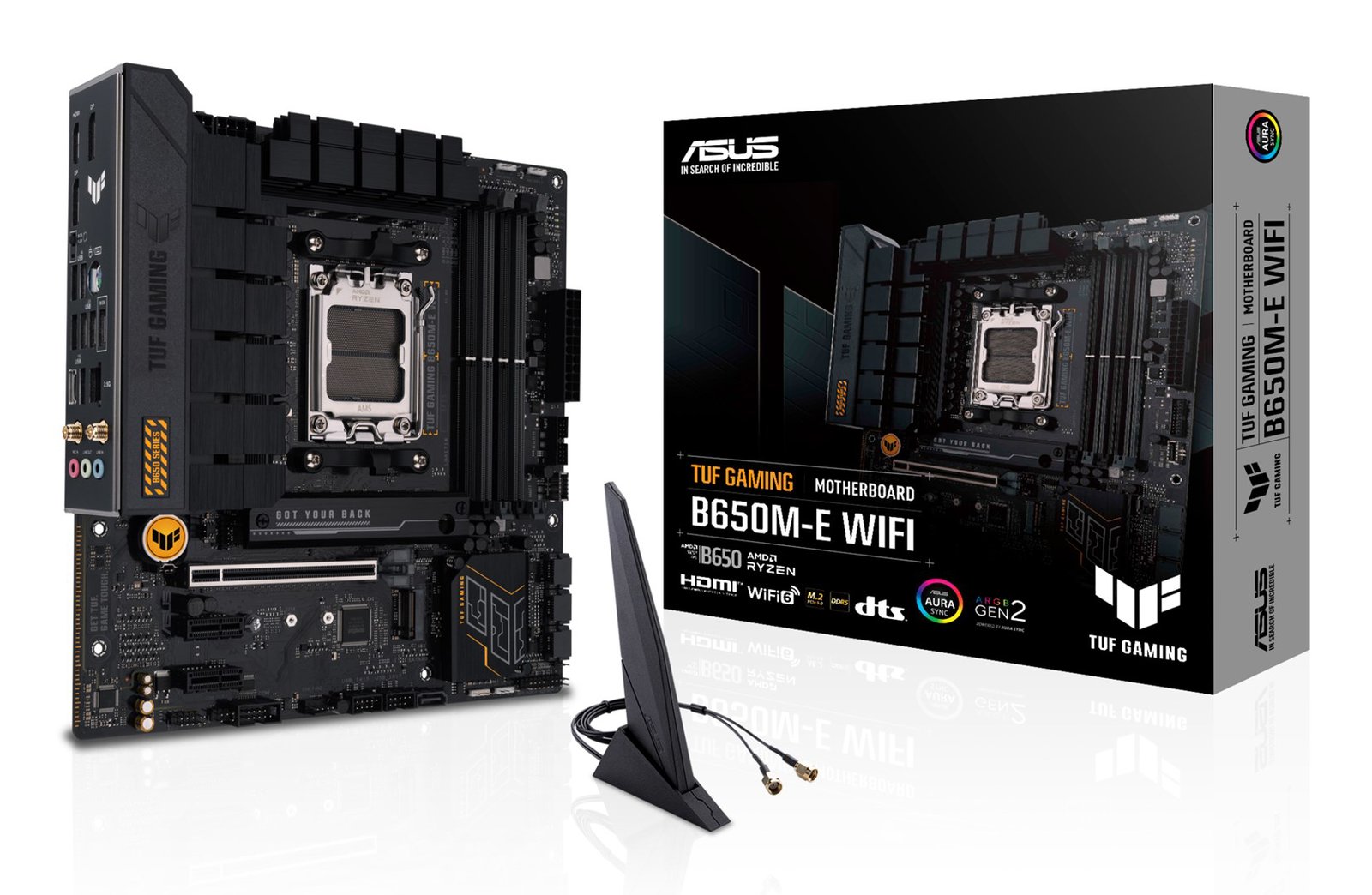

MB ASUS TUF GAMING B650M-E WIFI

Processor
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series
Processor manufacturer: AMD

Features
Windows operating systems supported: Windows 11, Windows 10 x64
Motherboard chipset: AMD B650
Motherboard form factor: micro ATX
Audio output channels: 7.1 channels
Motherboard chipset family: AMD

Memory
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Memory channels: Dual-channel
Unbuffered memory: Yes
Maximum internal memory: 128 GB
Supported memory clock speeds: 5000, 5200, 6200, 5600, 6400 MHz, 6000, 5800, 5400, 4800
ECC сompatibility: ECC & Non-ECC

Weight & dimensions
Width: 244 mm
Depth: 244 mm
Height: 50 mm

Network
Wi-Fi: Yes
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11b, 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac)
Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet
Bluetooth version: 5.2
Bluetooth: Yes

Internal I/O
CPU fan connector: Yes
12V power connector: Yes
Number of chassis fan connectors: 2
ATX Power connector (24-pin): Yes
RGB LED pin header: Yes
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4

BIOS
BIOS type: UEFI AMI

Packaging data
Package width: 275 mm
Package height: 67.4 mm
Package depth: 275 mm
Package weight: 1.7 kg

Packaging content
Cables included: SATA

Storage controllers
RAID levels: 10, 0, 1
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Microphone in: Yes
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 2.0 ports quantity: 4
DisplayPorts quantity: 2

Expansion slots
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 4.x) slots: 2

Other features
Weight: 1.01 kg

Safety warning
Warnings: Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste.
