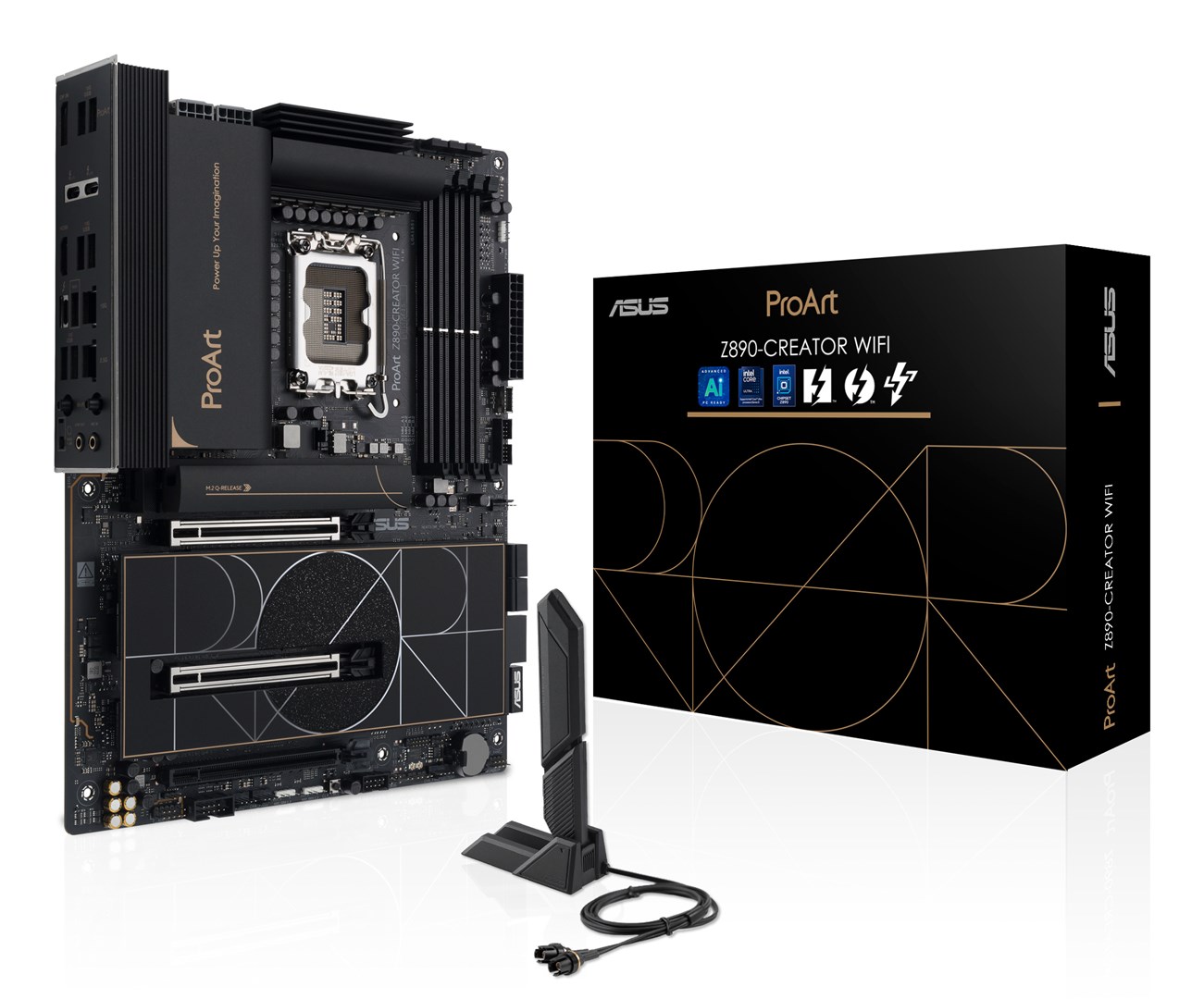

MB Z890 S1851 ATX /PROART Z890-CREATOR WIFI

Processor
Compatible processor series: Intel Core Ultra (Series 2)
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Supported processor sockets: LGA 1851

Graphics
On-board graphics card: No
Parallel processing technology support: Not supported
Maximum resolution: 7680 x 4320 pixels

Features
Audio chip: Realtek ALC1220P
Product colour: Black
Motherboard chipset family: Intel
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Power source type: ATX
Component for: PC
Motherboard chipset: Intel Z890

Memory
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Supported memory clock speed (max): 9066 MHz
ECC сompatibility: Non-ECC
Supported memory clock speeds: 9066
Maximum internal memory: 192 GB
Memory channels: Dual-channel
Unbuffered memory: Yes

Weight & dimensions
Depth: 244 mm
Width: 305 mm

Network
Ethernet LAN: Yes
Bluetooth version: 5.4
Wi-Fi standards: Wi-Fi 7 (802.11be)
Ethernet interface type: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Bluetooth: Yes

Internal I/O
RGB LED pin header: Yes
12V power connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of water pump connectors: 1
Number of EPS power connectors (8-pin): 2
Number of temperature sensor headers: 1
Number of RGB LED pin headers: 3
Number of CPU fan connectors: 2
Number of COM connectors: 1
Chassis intrusion connector: Yes
Number of SATA III connectors: 4
Number of chassis fan connectors: 5
EPS power connector (8-pin): Yes
USB 2.0 connectors: 1
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
Front panel connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
CPU fan connector: Yes
TPM connector: Yes

BIOS
Clear CMOS button: Yes
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit

Packaging data
Package height: 244 mm
Package width: 356 mm
Package weight: 2.35 kg
Package depth: 281 mm

Packaging content
Antenna included: Yes
Cables included: SATA

Storage controllers
Number of HDDs supported: 4
Number of storage drives supported: 9
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
RAID levels: 1, 10, 0, 5

Rear panel I/O ports
HDMI version: 2.1
Thunderbolt ports quantity: 3
Line-in: Yes
Headphone outputs: 1
WiFi-AP antenna jack: 2
DisplayPort version: 2.1
Ethernet LAN (RJ-45) ports: 2
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
USB 2.0 ports quantity: 1
DisplayPorts quantity: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 2
4th M.2 largest key size: 2280
5th M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
1st M.2 largest key size: 22110
4th M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0
5th M.2 highest PCI Express generation: 4.0
Number of M.2 (M) slots: 5

Other features
Weight: 1.97 kg
