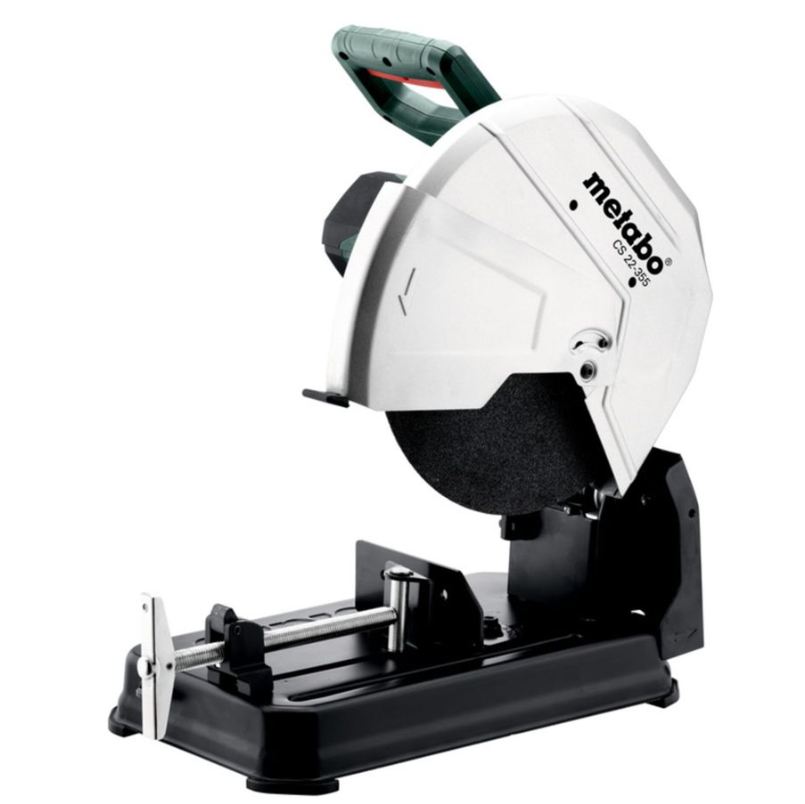

Metabo CS 22-355 Metal Chop Saw

Metabo CS 22-355 Metal cut-off sander, mitre-bound

Powerful metal cut-off grinder with infinitely variable mitre adjustment for cutting profiles, pipes or rods. Mitre adjustment for angle cuts from -15 to 45 degrees.

Features:

• Powerful metal cut-off sander
• For cutting pipes, rods and profiles made of steel, non-ferrous metals, iron and cast profiles
• Quick-clamping device, infinitely variable mitre adjustment for angle cuts from -15° to 45°
• Optimum power transmission thanks to large handle across the cutting axis
• Adjustable cutting depth limiter
• Quick and easy disc change with spindle lock
• High level of user protection: swivelling cut-off guard, adjustable spark deflector and rubberised feet
• Safety switch prevents unintentional starting
• Integrated carrying handle and transport lock for easy transport

Technical data:

• For sanding discs (Ø x bore): 355 x 25.4 mm
• Idle speed: 3700 /min
• Rated power input: 2300 W
• Max. Cutting capacity round tube: 132 mm
• Max. Cutting capacity square tube: 120 x 120 mm
• Max. Rectangular tube cutting capacity: 100 x 208 mm
• Max. Cutting capacity L-profile: 150 x 150 mm
• Base plate dimensions: 456 x 256 mm
• Transport height: 394 mm
• Weight: 16.8 kg
• Cable length: 4 m

Scope of delivery:

• Metabo CS 22-355 metal cutting-off machine
• Hexagon spanner
• Support flange
• Clamping nut
• Cutting disc 355 mm
