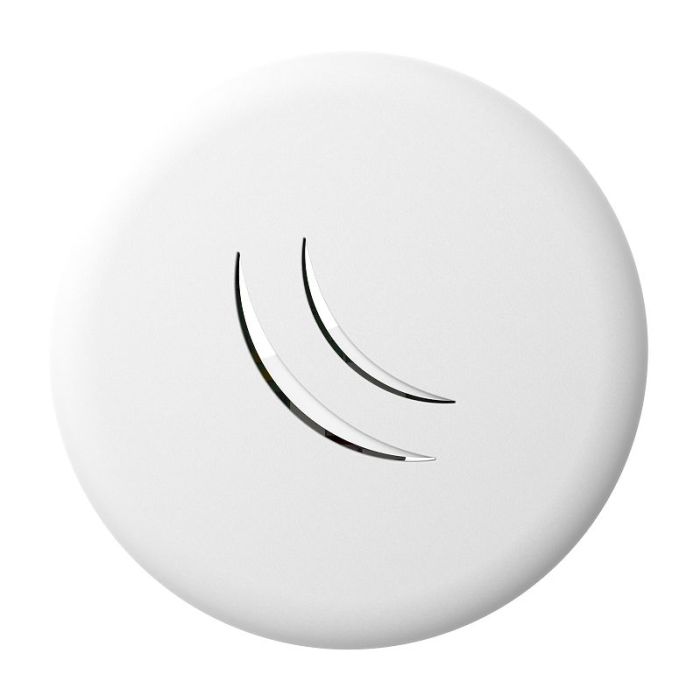

CAP lite is a small device for access points, perfect for public locations and hospitality, such as hotels, airports, shopping centers, etc. The product comes with two different housings that can be easily swapped out, or if you really want to customize the design to your environment, we offer 3D printer-friendly design files.
CAP lite supports 802.11b/g/n and can be powered by Ethernet. The perfect companion for MikroTik CAPsMAN (managed AP system manager), which allows you to manage all AP devices from one central location. CAP lite can also be used as a standalone access point with the full potential of RouterOS.
Specifications
Details
Product code
RBcAPL-2nD
Architecture
MIPSBE
CPU
QCA9533
CPU core count
1
CPU nominal frequency
650 MHz
Dimensions
Wall case: 88 x 52 x 20 mm Ceiling case: ⌀88 mm x 20 mm
RouterOS license
4
Operating System
RouterOS
Size of RAM
64 MB
Storage size
16 MB
Storage type
FLASH
MTBF
Approximately 100,000 hours at 25°C
Tested ambient temperature
-40°C to 70°C
Suggested price
$29
Wireless capabilities
Details
Wireless 2.4 GHz Max data rate
300 Mbit/s
Wireless 2.4 GHz number of chains
2
Wireless 2.4 GHz standards
802.11b/g/n
Antenna gain dBi for 2.4 GHz
1
Wireless 2.4 GHz chip model
QCA9533
Wireless 2.4 GHz generation
Wi-Fi 4
Ethernet
Details
10/100 Ethernet ports
1
Peripherals
Details
Number of USB ports
1
USB slot type
microUSB type AB
Max USB current (A)
1
Powering
Details
MicroUSB input Voltage
5-5
Number of DC inputs
2 (PoE-IN, MicroUSB)
Maximum power consumption
4 W
FAN count
Passive
PoE in
802.3af/at
PoE and input Voltage
10-60 V
Certification & Approvals
Details
Certification
CE, FCC, IC, EAC, ROHS
IP
IP20
Product website: https://mikrotik.com/product/RBcAPL-2nD-307
