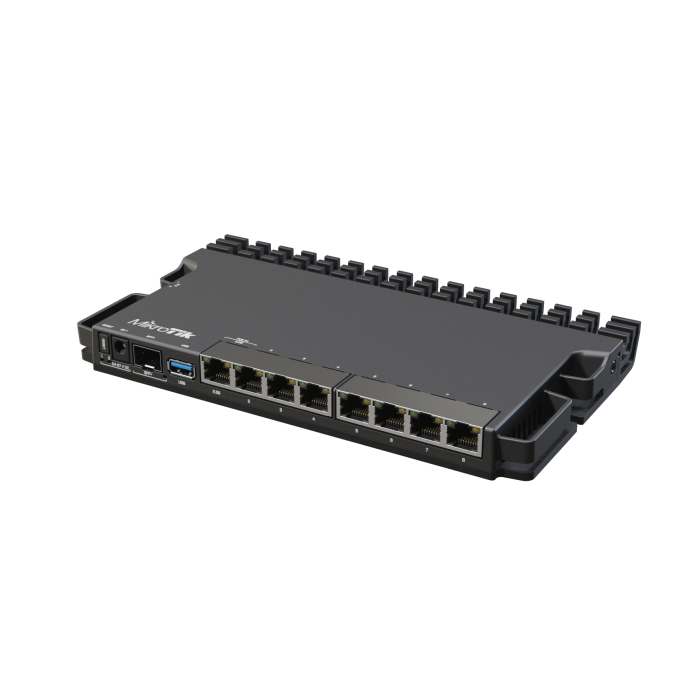

Mikrotik router RB5009UG+S+IN

High-performance home lab router with USB 3.0, 1G and 2.5G Ethernet, and 10G SFP+ cage.
Four of these new routers can be installed in a single 1U rack space!
Unmatched processing power in such a small form factor.

The board has 9 wired ports and a full-size USB 3.0.
Seven ports are Gigabit Ethernet, one is 2.5 Gigabit Ethernet, and the last is a 10G SFP+ cage.
All ports are connected to a powerful Marvell Amethyst family switch chip with a full duplex 10 Gbps line leading to a quad-core Marvell Armada ARMv8 1.4 GHz processor. Both the CPE and the switching chip are located at the bottom of the board – so the case acts as a huge heat sink!

The RB5009UG+S+IN can be powered in three different ways:
a) PoE-in from Ethernet port #1
b) DC Jack
c) 2-pin connector on the side

The board has 1 GB of DDR4 RAM and 1 GB of NAND memory.
This combination of ports and components provides nearly double the performance of our other products in a similar form factor in configurations with high CPU loads.
With a simple set of mounting accessories, you can fit FOUR of these routers into a single 1U rack space!
No more Tetris in the server room, just pure productivity.

Specifications

Product code RB5009UG+S+IN
Architecture ARM 64bit
CPU 88F7040
Number of processor cores 4
Nominal processor frequency 350-1400 (automatic) MHz
Switch chip model 88E6393
RouterOS 5 license
Operating system RouterOS v7
RAM size 1 GB
Memory size 1 GB
Memory type NAND
MTBF Approximately 200,000 hours at 25°C
Tested ambient temperature -40°C to 60°C
IPsec hardware acceleration Yes

Power
Number of DC inputs 3 (2-pin terminal, DC socket, PoE-IN)
DC socket input voltage 24-57 V
2-pin connection input voltage 24-57 V
Maximum power consumption 25 W
Maximum power consumption without connections 14 W
Cooling type Passive
PoE in 802.3af/at
PoE in input voltage 24-57 V

Ethernet
10/100/1000 Ethernet ports 7
Number of 2.5G Ethernet ports 1
Fiber
Details
SFP+ ports 1

Peripheral devices
Number of USB ports 1
USB power reset Yes
USB slot type USB 3.0 Type A
Maximum USB current (A) 1.5

Other
Processor temperature monitor Yes

Certification and approvals
Certification CE, EAC, ROHS
