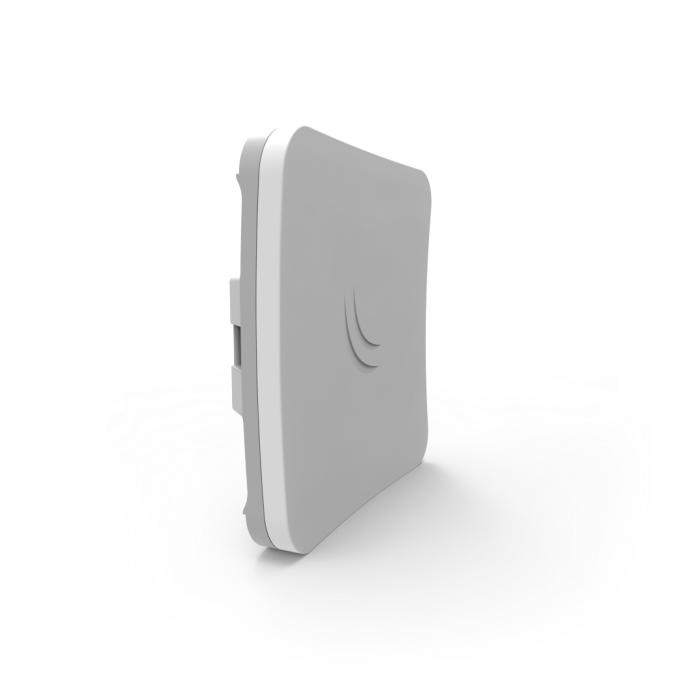

Mikrotik SXTsq 5 ac outdoor access point

The SXTsq 5 ac is a compact and lightweight 5 GHz 802.11ac outdoor wireless device with an integrated antenna, perfect for point-to-point connections or as a CPE unit.
The device includes one 10/100/1000 Mbit Ethernet port to take full advantage of the speeds provided by the 802.11ac protocol.

The SXTsq 5 ac retains the 16 dBi antenna of the SXT 5 ac, our previous model, but the antenna design has been improved and the physical size dramatically reduced—the SXTsq is half as thin.

- The SXTsq 5 ac-US (US) is factory locked to the 5170–5250MHz and 5725–5835MHz frequencies. These locks cannot be removed.
- The SXTsq 5 ac (International) supports the 5150 MHz–5875 MHz range (the specific frequency range may be limited by national regulations).

Specifications
Architecture: ARM 32-bit
CPU: IPQ-4018
Number of processor cores: 4
Processor nominal frequency: 716 MHz
Dimensions: 129 x 129 x 34 mm
License: RouterOS 3
Operating system: RouterOS
RAM size: 256 MB
Memory size: 16 MB
Storage type: FLASH
MTBF Approx.: 100,000 hours at 25°C
Tested ambient temperature: -40°C to 70°C
IPsec hardware acceleration: Yes
Number of DC inputs: 1 (PoE-IN)
Maximum power consumption: 7 W
Cooling type Passive

Wireless specifications
Wireless 5 GHz Maximum data transfer rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 16
Wireless 5 GHz chip model IPQ-4018
Wireless 5 GHz generation Wi-Fi 5

Ethernet
10/100/1000 Ethernet ports: 1

Certification CE, FCC, IC, EAC, ROHS
IP IP54
