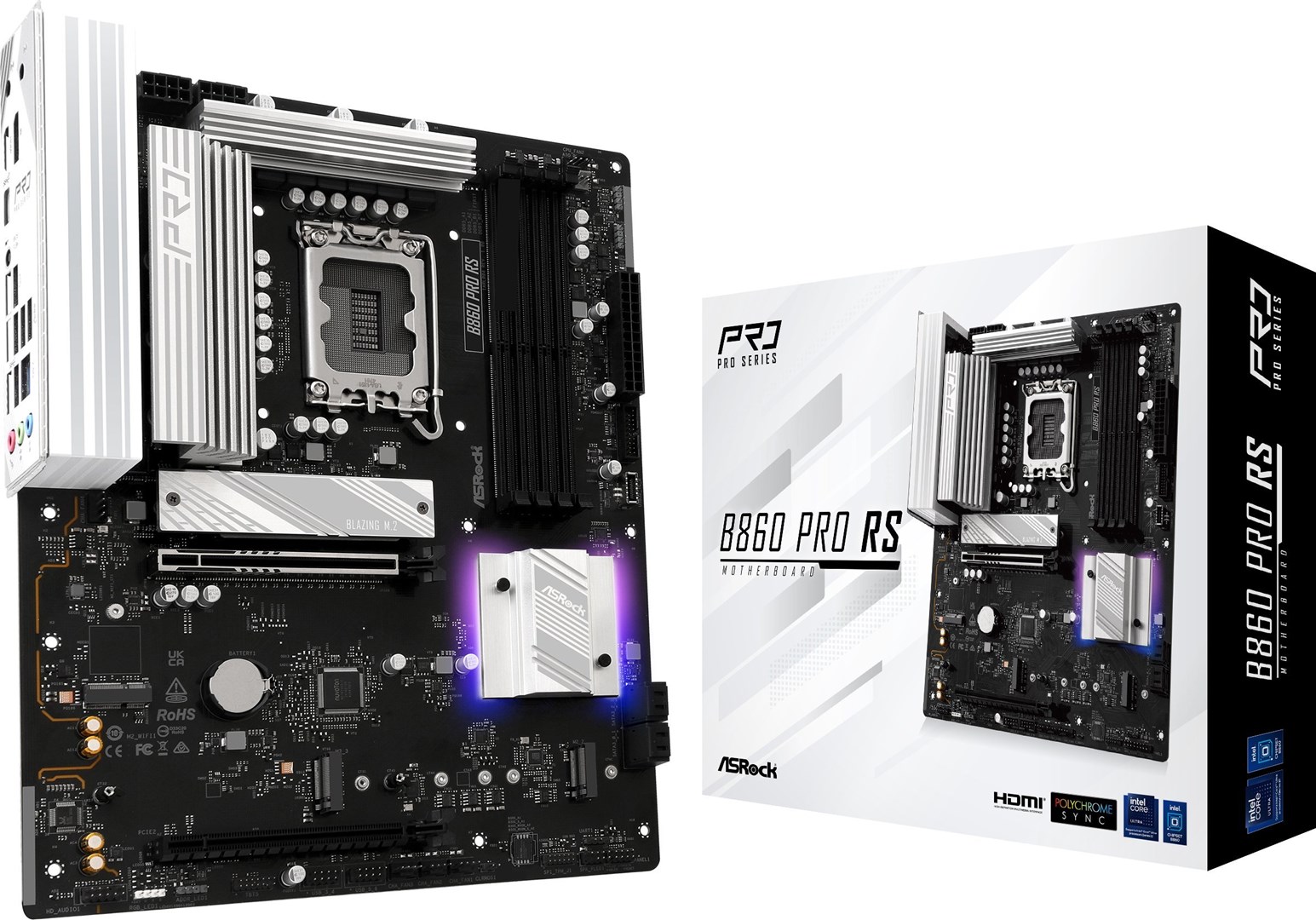

Motherboard - ASRock B860 Pro RS

Processor
Processor manufacturer: Intel
Maximum number of SMP processors: 1
Compatible processor series: Intel Core Ultra (Series 2)
Processor socket: LGA1851

Features
Audio chip: Realtek ALC897
Operating system architecture: 64-bit
Motherboard chipset: Intel B860
Motherboard form factor: ATX
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11
Motherboard chipset family: Intel

Memory
Unbuffered memory: Yes
Memory channels: Dual-channel
Maximum internal memory: 256 GB
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 8666 MHz

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
Bluetooth: No
Ethernet LAN: Yes
LAN controller: Dragon RTL8125BG
Wi-Fi: No
Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O
Number of chassis fan connectors: 4
Number of SATA III connectors: 4
RGB LED pin header: Yes
CPU fan connector: Yes
USB Type-C ports quantity: 1
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
ATX Power connector (24-pin): Yes

BIOS
BIOS type: UEFI AMI

Storage controllers
RAID rebuild: Yes
Supported RAID configuration: 0,1,5,10

Rear panel I/O ports
DisplayPorts quantity: 1
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1
Line-in: Yes
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
Number of USB 2.0 Type-A ports: 2
Number of Wi-Fi antenna ports: 2
MIC input: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1

Safety warning
Warnings: Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty.
