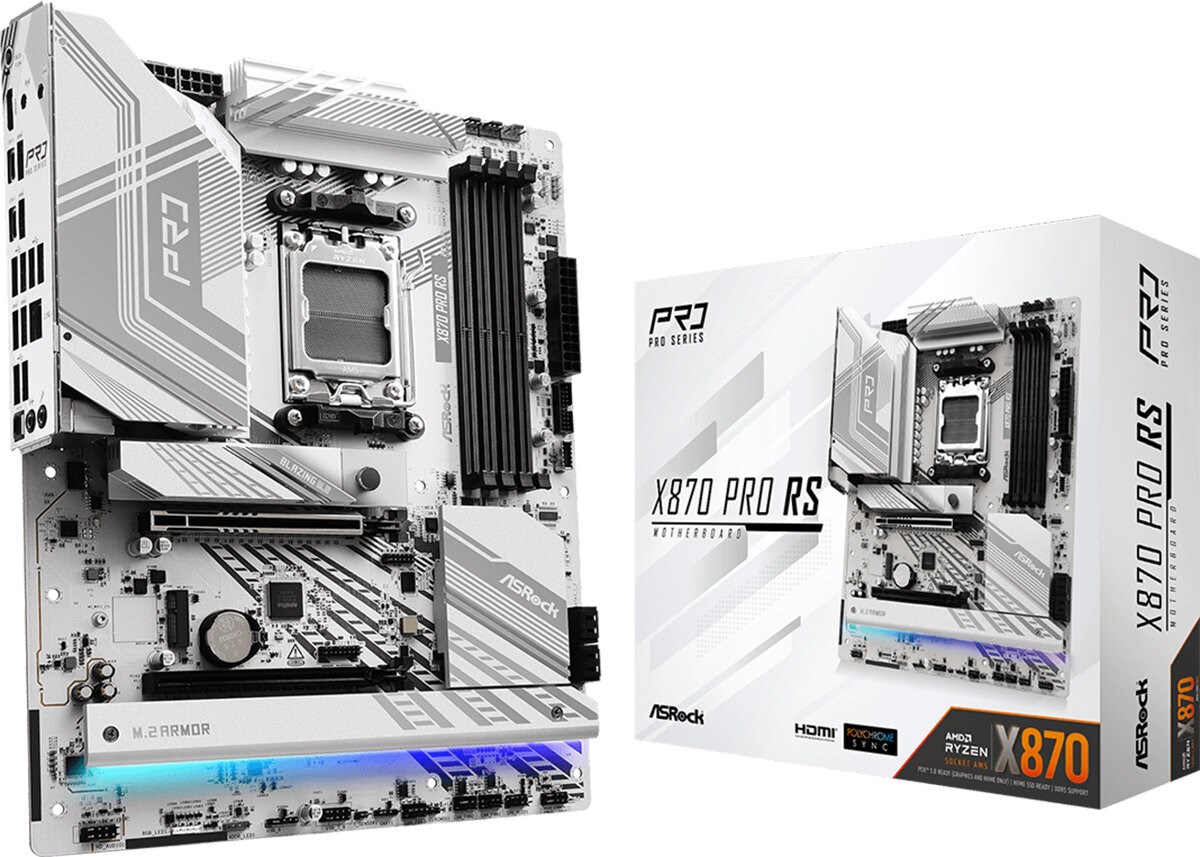

Motherboard - ASRock X870 Pro RS

Processor
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen™ 7000 Series, AMD Ryzen™ 8000 Series, AMD Ryzen™ 9000 Series
Processor socket: Socket AM5
Maximum number of SMP processors: 1

Features
Motherboard chipset: AMD X870
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Audio chip: Realtek ALC1220
Motherboard form factor: ATX
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Operating system architecture: 64-bit

Memory
Maximum internal memory: 256 GB
Unbuffered memory: Yes
Supported memory clock speed (max): 8000+ MHz
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
Bluetooth: No
LAN controller: Dragon RTL8125BG
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: No

Internal I/O
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
CPU fan connector: Yes
Front panel audio connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
RGB LED pin header: Yes

BIOS
BIOS type: UEFI AMI

Storage controllers
Supported storage drive interfaces: Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4)

Rear panel I/O ports
HDMI ports quantity: 1
S/PDIF out port: Yes
USB 2.0 connectors: 6
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
USB 3.2 Gen 2x2 Type-C ports quantity: 2
Line-out: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
