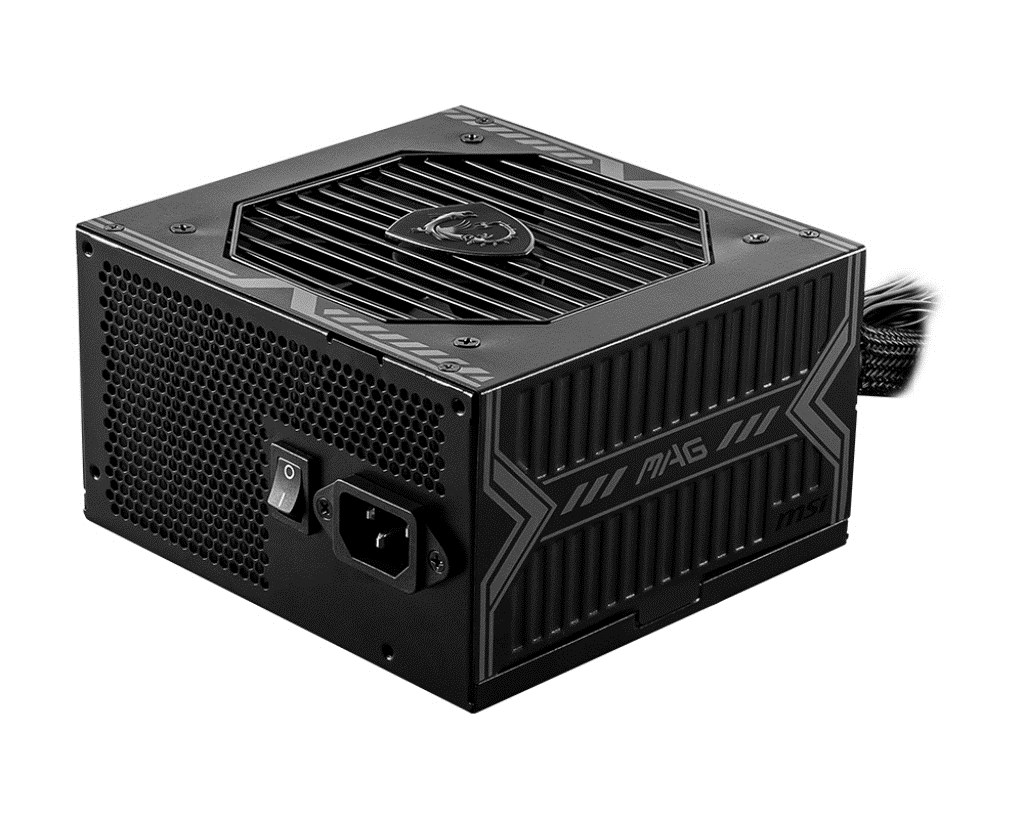

Design Number of fans: 1 fan(s) Cooling type: Active Product colour: Black On/off switch: Yes Fan diameter: 12 cm Illumination: No
Power Max output current (+12V): 62.5 A Maximum input current (@220V): 5 A Max output current (+3.3V): 20 A Max output current (+5Vsb): 2.5 A Maximum input current (@110V): 10 A Combined power (+5Vsb): 12.5 W Max output current (-12V): 0.3 A Max output current (+5V): 20 A AC input voltage: 100 - 240 V Combined power (+3.3V): 120 W Power protection features: Over power, Short circuit, Over voltage, Over current AC input frequency: 50/60 Hz Combined power (-12V): 3.6 W Power Factor Correction (PFC) type: Active Efficiency: 85% Combined power (+5V): 120 W Total power: 750 W Combined power (+12V): 750 W
Performance 80 PLUS certification: 80 PLUS Bronze Power supply unit (PSU) form factor: ATX Purpose: PC
Packaging data Package width: 150 mm Package depth: 140 mm Package height: 86 mm
Ports & interfaces Motherboard power connector: 24-pin ATX PCI Express power connectors (16-pin): 1 Floppy drive power connector: 1 EPS power connector (4+4 pin): Yes Number of SATA power connectors: 5 PCI Express power connectors (6+2 pin): 2 Cabling type: Non-Modular ATX Power connector (24-pin): Yes Peripheral (Molex) power connectors (4-pin): 2
Safety warning Warnings: The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations., Avoid contact of the product with water or other liquids., Do not open the case - risk of electric shock.
