Design
Radiator material: Aluminum
Number of fans: 2 fan(s)
Fan connector: 3-pin + 4-pin
Base plate material: Copper
Illumination colour: Red, Green, Blue, Amber
Material: Aluminium, EPDM
Illumination LED: Yes
Product colour: Black
Power
Maximum current: 0.5 A
Fan power consumption: 2.4 W
Pump power consumption: 3.84 W
Fan voltage: 5 V
Rated current: 0.32 A
Fan current: 0.2 A
Weight & dimensions
Depth: 74 mm
Height: 62.5 mm
Radiator height: 2.7 cm
Width: 69.1 mm
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Fan 2 dimensions (W x D x H): 120 x 120 x 25 mm
Radiator width: 27.7 cm
Radiator depth: 11.9 cm
Performance
Suitable location: Computer case
Pump motor speed: 3400 RPM
Maximum airflow: 70.7 cfm
Fan diameter: 12 cm
Supported processor sockets: LGA 1200 (Socket H5), LGA 1155 (Socket H2), LGA 1151 (Socket H4), LGA 1150 (Socket H3), Socket AM5, LGA 1156 (Socket H), LGA 1700, Socket AM4
Pump noise level: 20 dB
Bearing type: Loop Dynamic Bearing (LDB)

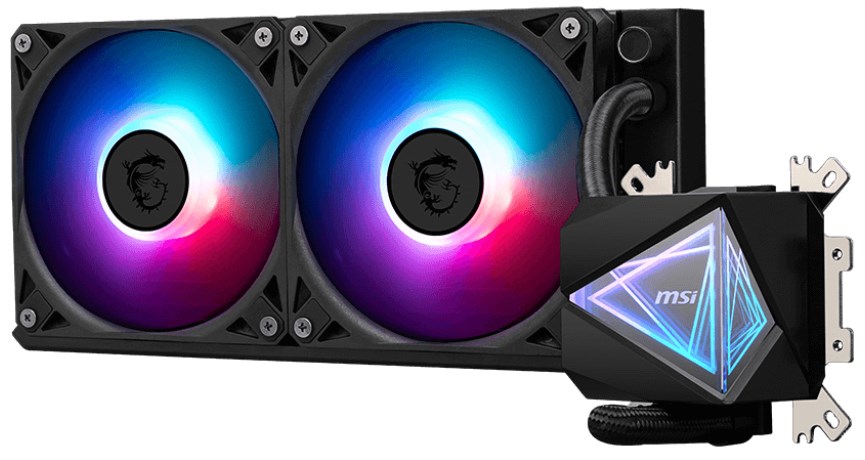

Type: All-in-one liquid cooler
Quantity per pack: 1 pc(s)
Pulse-width modulation (PWM) support: Yes
Fan 2 maximum airflow: 70.7 cfm
Fan diameter 2: 12 cm
Pump connector: 4-pin
Fan bearing technology: Loop Dynamic Bearing (LDB)
Pump's mean time to failure (MTTF): 50000 h
Fan's mean time to failure (MTTF): 30000 h
