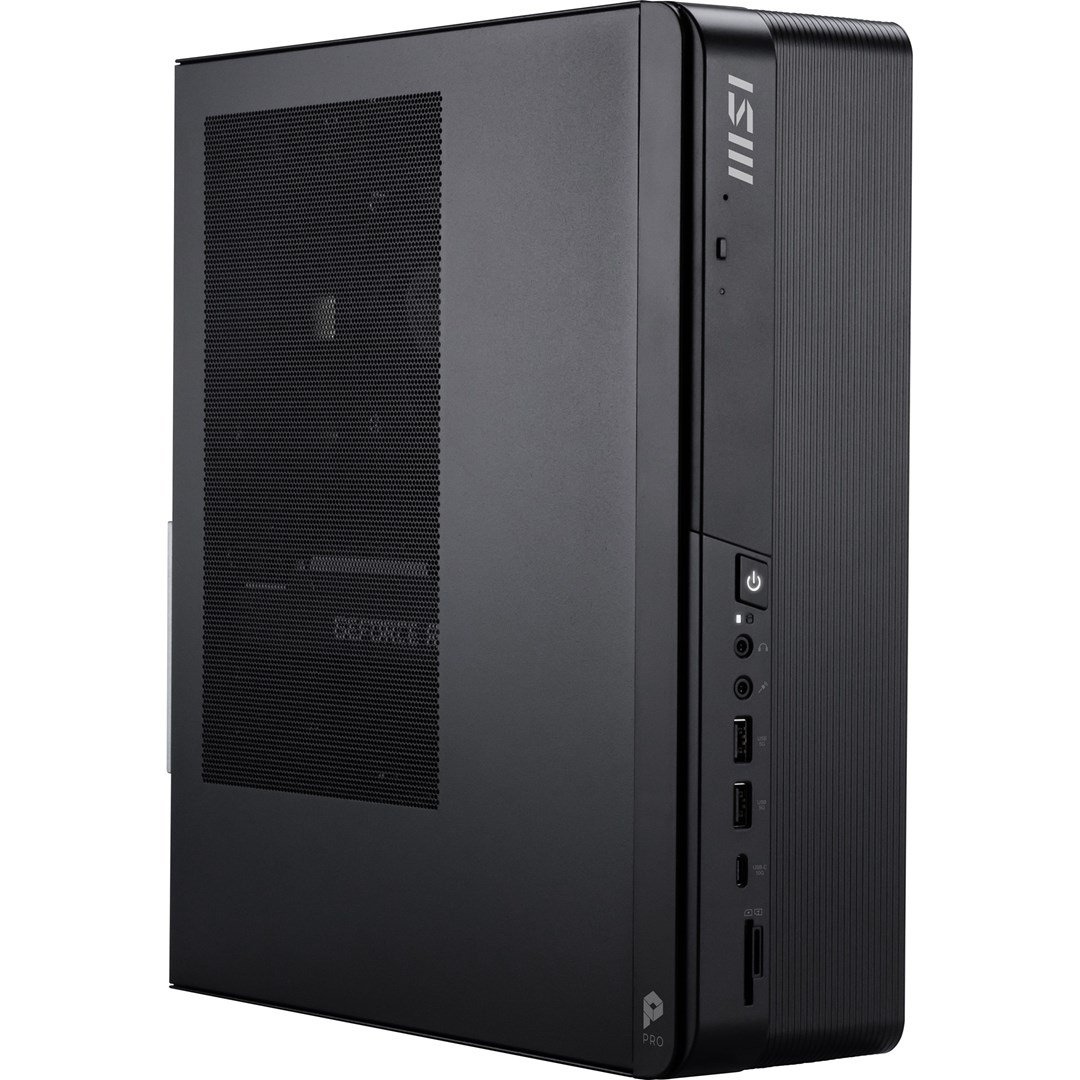

MSI Pro DP80 A14G-003EU PC Intel® Core™ i7 i7-14700 16 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro Desktop Black

Processor
Maximum turbo power: 219 W
Performance cores: 8
Performance-core Max Turbo Frequency: 5.3 GHz
Processor generation: Intel® Core™ i7 (14th gen)
Efficient-core base frequency: 1.5 GHz
Processor cores: 20
Processor model: i7-14700
Efficient-core Max Turbo Frequency: 4.2 GHz
Processor boost frequency: 5.4 GHz
Processor base power: 65 W
Processor threads: 28
Performance-core base frequency: 2.1 GHz
Processor family: Intel® Core™ i7
Processor manufacturer: Intel
Efficient cores: 12
Processor cache type: Smart Cache
Processor cache: 33 MB

Graphics
On-board GPU manufacturer: Intel
Discrete graphics card: No
On-board graphics card model: Intel UHD Graphics 770
On-board graphics card: No
On-board graphics card family: Intel® UHD Graphics
Discrete graphics card model: Not available

Memory
Memory clock speed: 5600 MHz
Internal memory: 16 GB
Memory slots: 2x DIMM
Maximum internal memory: 64 GB
Memory layout (slots x size): 1 x 16 GB
Internal memory type: DDR5-SDRAM

Design
Volume: 8 L
Chassis type: Desktop
Product colour: Black
Number of 2.5" bays: 1
Placement supported: Horizontal/Vertical
Cable lock slot: Yes
Cable lock slot type: Kensington
Copilot key: Yes

Power
Power supply: 300 W
80 PLUS certification: 80 PLUS Bronze

Operational conditions
Operating temperature (T-T): 0 - 35 °C
Operating relative humidity (H-H): 0 - 85%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 0 - 90%

Weight & dimensions
Depth: 296 mm
Height: 330 mm
Width: 95 mm

Network
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
Ethernet LAN data rates: 1000, 10, 2500 Mbit/s, 100
WLAN controller model: Intel Wi-Fi 6E AX211
LAN controller: Intel® I219-V, Intel I226-V
Bluetooth version: 5.3
Bluetooth: Yes
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
WLAN controller manufacturer: Intel

Performance
Motherboard chipset: Intel H610
Audio output channels: 7.1 channels
Product type: PC
Market positioning: Business

Packaging data
Package depth: 234 mm
Package height: 402 mm
Package width: 451 mm

Expansion slots
Number of 3.5" bays: 1

Display
Display included: No

Software
Operating system installed: Windows 11 Pro

Audio
Audio chip: Realtek ALC897

Storage
SSD capacity: 1 TB
Optical drive type: No
M.2 SSD size: 2280 (22 x 80 mm)
Compatible memory cards: SD
Card reader integrated: Yes
Total storage capacity: 1 TB
Total SSDs capacity: 1 TB
Storage media: SSD
SSD form factor: M.2
SSD interface: PCI Express 3.0
Number of SSDs installed: 1

Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 2.0 ports quantity: 4
PS/2 ports quantity: 1
DisplayPort version: 1.4
Combo headphone/mic port: Yes
HDMI version: 2.1
DisplayPorts quantity: 1
HDMI ports quantity: 1
VGA (D-Sub) ports quantity: 1
Headphone outputs: 1
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
DC-in jack: Yes

Other features
Warranty period: 3 year(s)
