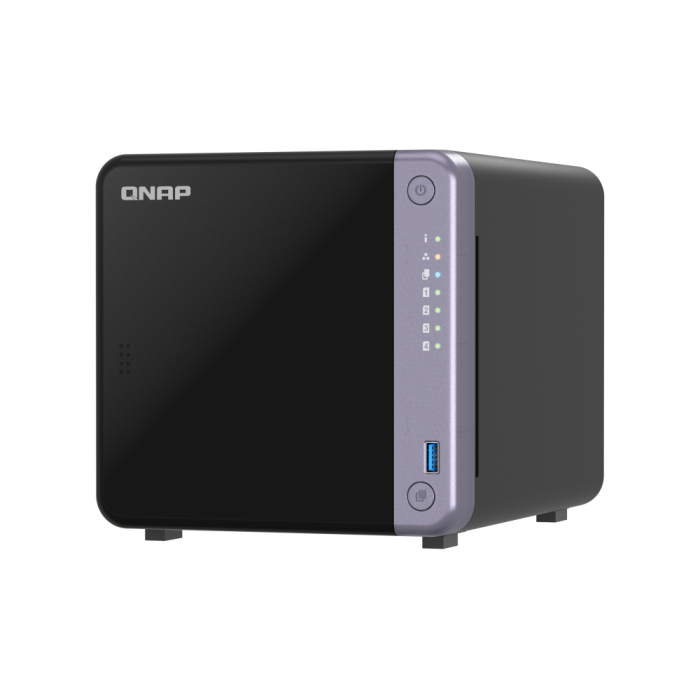

NAS server for 4 disks, 4GB RAM, 10Gb SFP+ network

Cost-effective 4-bay 10GbE NAS designed to accelerate your workloads

Unlock the potential of 4-bay storage and enjoy 10GbE speeds with the TS-432X!
This versatile storage solution offers secure backup, fast transfer,
content application support, and much more.
Cost-effective yet powerful, the TS-432X simplifies workflow efficiency without breaking your budget.

Quad-core for multitasking
Quad-core 2.0 GHz processor and 4 GB non-ECC RAM (expandable to 16 GB, supports ECC RAM)

High-speed 10GbE SFP
Single-port 10GbE connectivity increases transfer speeds for intensive data transfers
and reduces backup time.

2.5GbE is a must!
Take advantage of SMB Multichannel or Port Trunking with built-in dual 2.5GbE ports
to increase bandwidth and access speed.

PCIe Gen 3 expandability
Install a PCIe expansion card to add 2.5/5/10GbE connectivity or M.2 SSD slots to your NAS for more I/O potential.

Faster USB transfer and backup
Two USB 3.2 Gen 1 (5 Gbps) ports with one-touch backup support
enable faster backup to/from USB devices.

Centralized backup and snapshot protection
Easily back up different types of data and endpoints and create regular snapshots to prevent ransomware threats.

CPU: AnnapurnaLabs, an Amazon company Alpine AL524, 4-core, 2.0 GHz; 64-bit ARM
Encryption Engine: Yes
System memory 4 GB SODIMM DDR4 (1 x 4GB)
Maximum memory 16 GB (1 x 16 GB) optional
Memory slot 1 x SODIMM DDR4
Supports ECC memory
Flash memory 512 MB (Dual Boot OS protection)
Drive bays: 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive compatibility 3.5-inch bays, Hot swap
3.5-inch SATA hard drives
2.5-inch SATA hard drives
2.5-inch SATA SSD drives
SSD cache acceleration support: Yes
Network: 2x (2.5G/1G/100M), 1x 10 Gigabit Ethernet Port 1 x 10GbE SFP+
PCIe slot: 1x PCIe Gen 3 x4
PCIe slot card dimensions: 190x68.9x18.76mm
USB: 2x 3.2 Gen1
Dimensions (HxWxD): 165 × 170 × 226.5 mm
Weight (net): 1.99 kg
Weight (gross): 4.8 kg
Operating temperature 0 - 40°C
Storage temperature -20 - 70°C
Relative humidity 5–95% RH without condensation
Power supply 90W
adapter (12VDC), 100-240VAC
Fan 1 x 120mm, 12VDC
Standard warranty: 2 years
