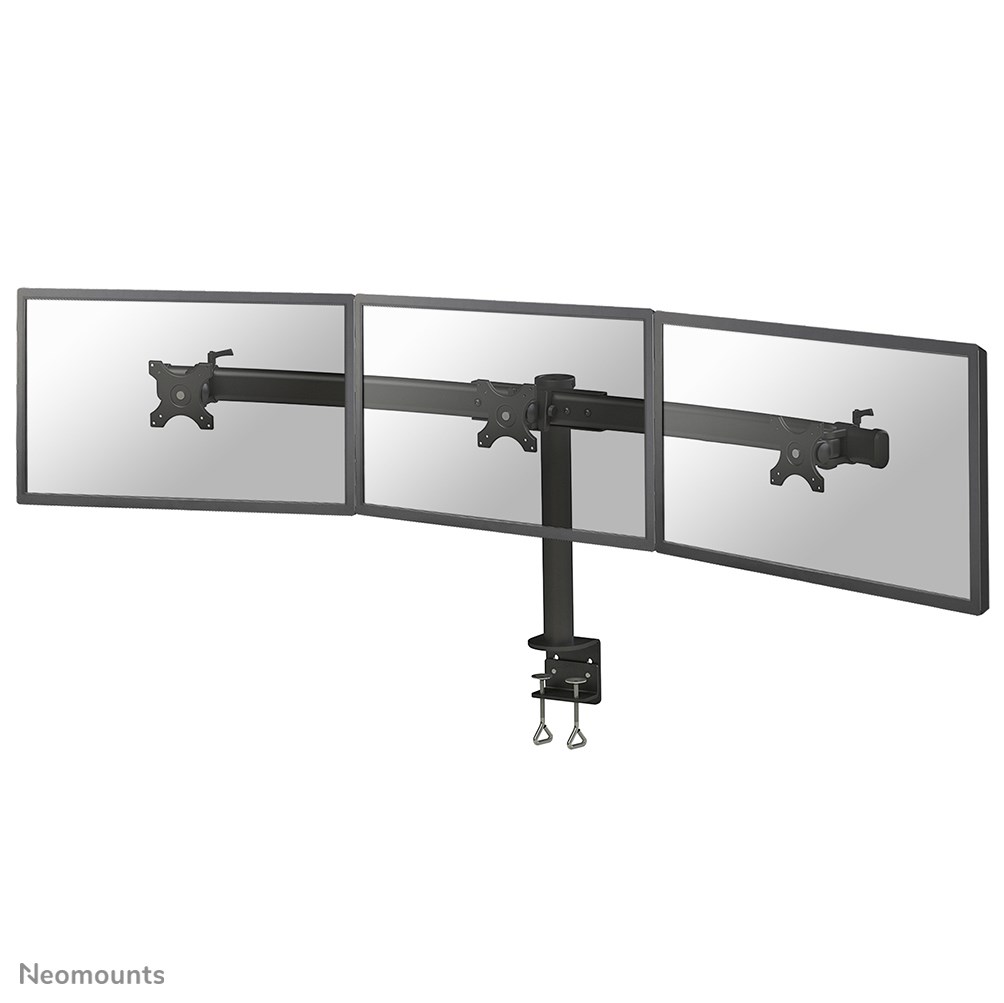

Neomounts FPMA-D700D3 Monitor arm 10-27

Design
Housing material: Steel
Product colour: Black

Weight & dimensions
Weight: 9.16 kg
Depth: 70 mm
Width: 1225 mm
Height: 420 mm

Packaging data
Package depth: 334 mm
Package width: 750 mm
Package height: 160 mm
Package weight: 9.5 kg

Ergonomics
Width adjustment: 122.5 cm
Swivelling: Yes
Swivel angle range: 0 - 103°
Height adjustment type: Manual
Angle of rotation: 360°
Rotating: Yes
Tilt angle range: -90 - 90°
Swivel angle: 103°
Depth adjustment range: 0 - 70 mm
Height adjustment: Yes
Height adjustment range: 320 - 420 mm

Other features
Width adjustment range: 0 - 1225 mm

Logistics data
Master (outer) case net weight: 9.5 kg
Country of origin: Taiwan
Products per master (outer) case: 1 pc(s)
Master (outer) case length: 334 mm
Master (outer) case width: 750 mm
Master (outer) case gross weight: 10.5 kg
Harmonized System (HS) code: 7326909890
Master (outer) case height: 160 mm
Products per pallet (EU): 39 pc(s)

Mounting
Maximum weight capacity (per display): 8 kg
Minimum VESA mount: 75 x 75 mm
Distance to the wall (min): 0 mm
Distance to the wall (max): 7 cm
Mounting: Clamp
Minimum screen size: 25.4 cm (10")
Number of displays supported: 3
Maximum weight capacity: 8 kg
Mounting type: Desk
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100 mm, 75 x 75 mm
Maximum screen size: 68.6 cm (27")
Desk thickness (max): 9 cm
