Neomounts NM-D135D3BLACK Monitor arm 10-27

Design
Product colour: Black
Housing material: Steel

Weight & dimensions
Weight: 5.92 kg
Depth: 729 mm
Height: 498 mm

Packaging data
Package depth: 135 mm
Package height: 620 mm
Package weight: 6.4 kg
Package width: 300 mm

Ergonomics
Swivel angle range: 0 - 90°
Rotating: Yes
Height adjustment type: Manual
Height adjustment range: 0 - 498 mm
Height adjustment: Yes
Angle of rotation: 360°
Swivelling: Yes

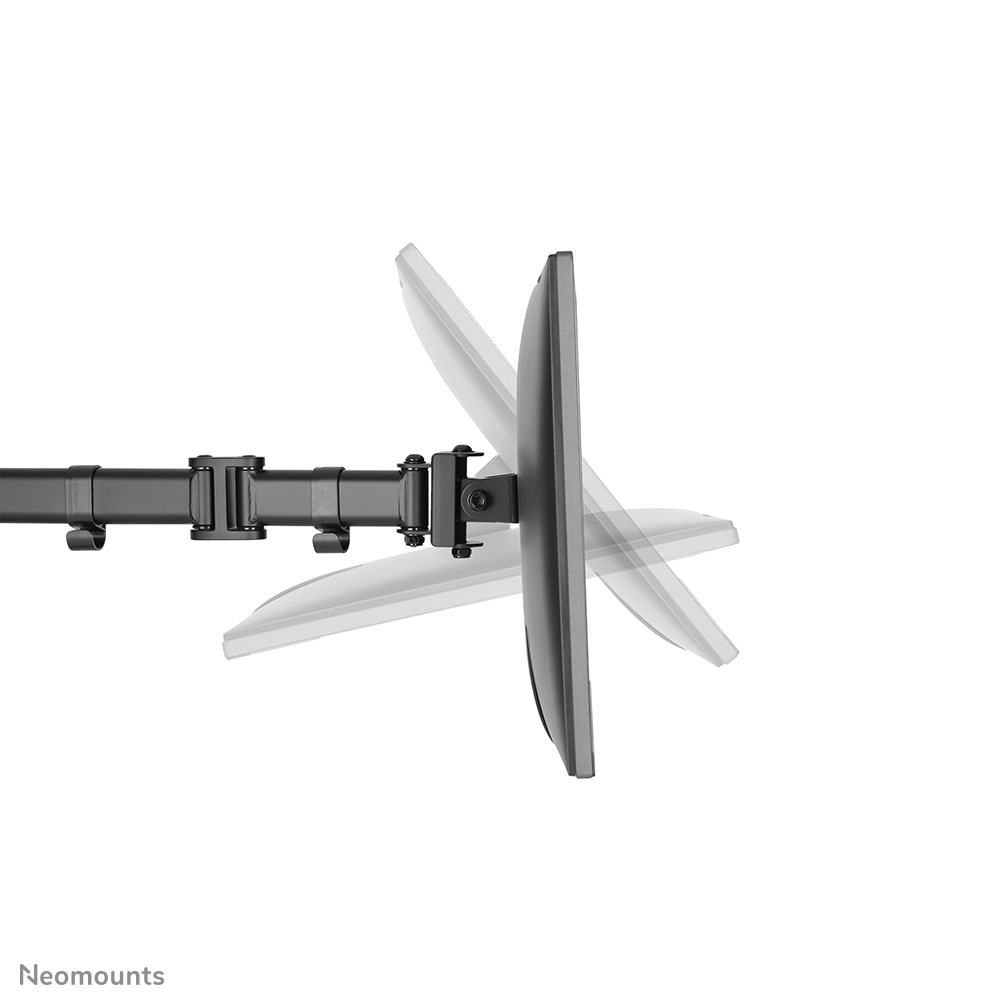

Tilt adjustment: Yes
Depth adjustment range: 0 - 729 mm
Swivel angle: 90°
Tilt angle range: 0 - 90°

Logistics data
Harmonized System (HS) code: 7326909890
Master (outer) case width: 630 mm
Master (outer) case length: 310 mm
Master (outer) case gross weight: 15.8 kg
Country of origin: China
Products per master (outer) case: 2 pc(s)
Products per pallet (EU): 40 pc(s)
Master (outer) case height: 285 mm
Master (outer) case net weight: 12.8 kg

Mounting
Maximum weight capacity (per display): 8 kg
Maximum screen size: 68.6 cm (27")
Desk thickness (max): 9 cm
Maximum weight capacity: 8 kg
Mounting type: Desk
Mounting: Clamp/Grommet
Minimum screen size: 25.4 cm (10")
Minimum VESA mount: 75 x 75 mm
Panel mounting interface: 100 x 100 mm, 75 x 75 mm
Distance to the wall (min): 5 cm
Desk thickness (min): 1 cm
Distance to the wall (max): 63 cm
Number of displays supported: 3
Maximum VESA mount: 100 x 100 mm
