Design
Radiator material: Aluminum
Display size (HxV): 69 x 69 mm
Water block material: Copper/Plastic
Number of LEDs: 8
Material: Plastic, Aluminium
Illumination colour: Multi
Illumination LED: Yes
Fan connector: 8-pin
Product colour: Black
Display type: LCD
Number of fans: 2 fan(s)
Power
Pump current: 300 mA
Pump voltage: 12 V
Fan voltage: 12 V
Fan current: 0.59 A
Fan power consumption: 7.08 W
Weight & dimensions
Radiator height: 13.7 cm
Tube length: 40 cm
Waterblock depth: 9.35 cm
Waterblock height: 6.5 cm
Waterblock width: 9.35 cm
Radiator depth: 2.7 cm
Radiator width: 32.1 cm
Fan dimensions (W x D x H): 280 x 26 x 140 mm
Cable length: 0.6 m
Performance
Fan speed (max): 2000 RPM
Fan's mean time to failure (MTTF): 60000 h
Suitable location: Processor
Supported processor sockets: LGA 1150 (Socket H3), Socket AM5, LGA 1851, Socket AM4, LGA 1200 (Socket H5), LGA 1151 (Socket H4), LGA 1156 (Socket H), LGA 1700, LGA 1155 (Socket H2)
Fan bearing technology: Fluid Dynamic Bearing (FDB)
Compatible processor series: Intel® Pentium®, AMD Ryzen™ 3, Intel® Core™ i3, AMD Ryzen™ 5, AMD Ryzen™ 7, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9

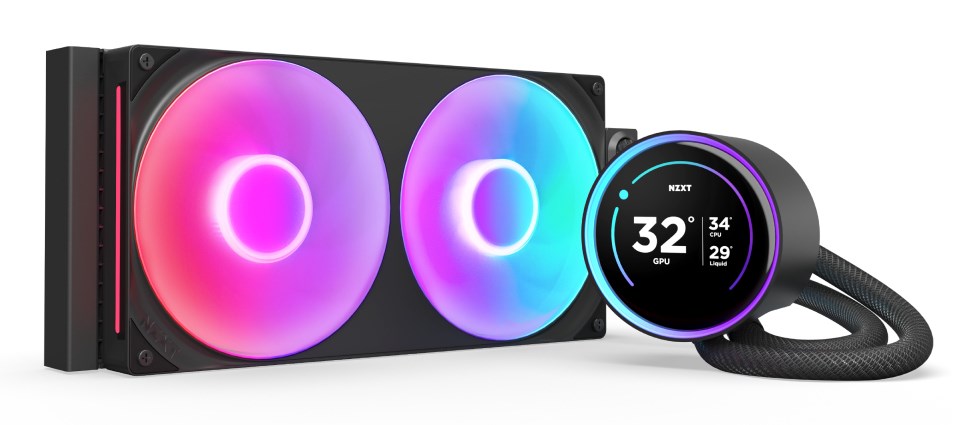

Type: All-in-one liquid cooler
Fan speed (min): 500 RPM
Maximum airflow: 98.61 cfm
Pump motor speed (max): 2800 RPM
Quantity per pack: 1 pc(s)
Pulse-width modulation (PWM) support: Yes
Fan noise level (max): 34.5 dB
Maximum air pressure: 3.2 mmH2O
Pump motor speed (min): 1200 RPM
Fan diameter: 14 cm
Other features
Tube material: Rubber
Built-in display: Yes
