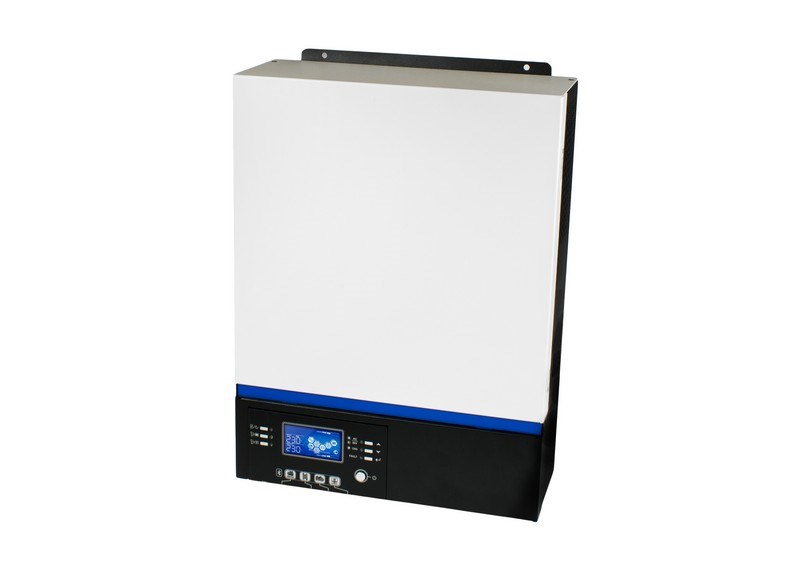

Purpose: Off-grid power systems based on energy from PV panels, grid and battery Power supply type: -
Features Power protection features: Overload International Protection (IP) code: IP21 Product colour: White Power current type: AC/AC MPPT function: Yes
Design Door cooling fan: Yes Display included: Yes Recharge indicator: Yes Control display unit: Yes
Power Waveform: Sine AC input voltage: 90 - 280 V Charging voltage: 27 V Input frequency: 50/60 Hz Output power capacity: 6000 VA Nominal input voltage: 230 V Continuous power: 3000 VA DC battery voltage: 24 V Output voltage (VAC): 230 VAC MPPT voltage range: 120 - 450 V Maximum charging current from solar panels (MPPT): 80 A
Weight & dimensions Height: 400 mm Weight: 9 kg Depth: 115 mm Width: 300 mm
Performance Cooling type: Active Efficiency: 93% Typical switching time: 15 ms Operating temperature (T-T): -10 - 50 °C Operating relative humidity (H-H): 5 - 95%
Packaging content Cables included: AC DFU / User manual: Yes Control display unit: Yes
