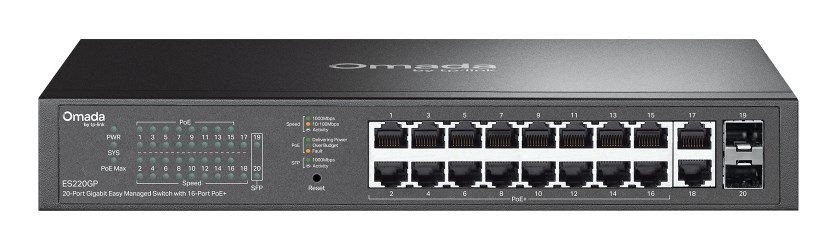

OMADA ES220GP network switch Managed Gigabit Ethernet (10 /100 /1000) Power over Ethernet (PoE) Black

Design
Product colour: Black
Housing material: Metal
Rack mounting: Yes

Power
Power consumption (max): 182.43 W
Power source: AC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 2.5 A

Security
DHCP features: DHCP client
IGMP snooping: Yes
Queue scheduling algorithms: Weighted Round Robin (WRR)

Operational conditions
Storage relative humidity (H-H): 5 - 90%
Operating temperature (T-T): -5 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Management features
Web-based management: Yes
Quality of Service (QoS) support: Yes
Switch type: Managed
Cloud-managed: Yes

Weight & dimensions
Height: 44 mm
Depth: 180 mm
Width: 294 mm

Network
Networking standards: IEEE 802.3af, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3at, IEEE 802.1p, IEEE 802.1ab
10G support: No
Number of VLANs: 32
VLAN support: Yes
Auto MDI/MDI-X: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Flow control support: Yes
Virtual LAN features: Port-based VLAN, MTU VLAN, Tagged VLAN
Port mirroring: Yes
Auto-negotiation: Yes
Broadcast storm control: Yes
Link aggregation: Yes

Performance
Mean time between failures (MTBF): 320156 h
Noise level: 20.1 dB
Fanless: Yes

Packaging content
User guide: Yes
Cables included: AC

Certificates
Compliance certificates: RoHS, CE, Federal Communications Commission (FCC)

Ports & interfaces
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 18
Power connector: AC-in jack
SFP module slots quantity: 2
Gigabit Ethernet (copper) ports quantity: 18

Data transmission
Switching capacity: 40 Gbit/s
Packet buffer memory: 4 MB
MAC address table: 8000 entries
Jumbo frames support: Yes
Number of queues: 8
Forwarding rate: 29.76 Mpps
Store-and-forward: Yes

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 150 W
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) type supported: PoE+
Power over Ethernet plus (PoE+) ports quantity: 16

Multicast features
Multicast support: Yes
