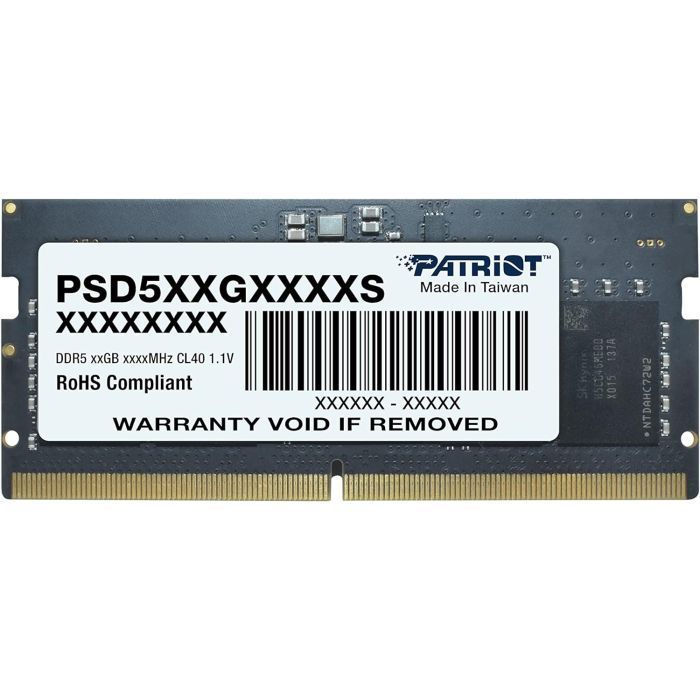

Patriot Signature Line 8GB DDR5-5600 SODIMM CL46, 1.1V

Patriot Signature Line DDR5 8GB is a SODIMM memory module designed for laptops and compact systems that support DDR5 technology. It operates at 5600 MT/s and 1.1V, enabling efficient operation with lower power consumption. The module includes a built-in power management controller (PMIC), on-die ECC for improved data stability, and a built-in thermal sensor for temperature monitoring. The single-sided, single-rank design enables broad compatibility with newer Intel platforms.

Specifications
Series: Signature Line
Manufacturer Model: PSD58G560041S
Memory Type: DDR5
SODIMM
Pin count: 262
Technology: DDR5 Non-ECC, unbuffered
Capacity: 8 GB (1 × 8 GB)
Frequency: 5600 MT/s
Speed code: PC5-44800
Time delays: 46-46-46-46-90
Voltage: 1,1 V
Power management: Integrated PMIC
Data protection: on-die ECC
Additional features: SPD hub with thermal sensor, I3C/I2C support
Chip layout: 1-rank, single-sided module
Compliance: RoHS
Testing: 100% tested
EAN: 4711378422221
Product weight: 9.5 g
Product dimensions: 69 × 30 × 3 mm
