Technical details
Compliance certificates: EMF, BSMI, Federal Communications Commission (FCC), VCCI, CE, PSB, CB, EAC, ETL
Design
VESA mounting: Yes
Screen shape: Flat
Panel mounting interface: 200 x 200 mm
Product colour: Black

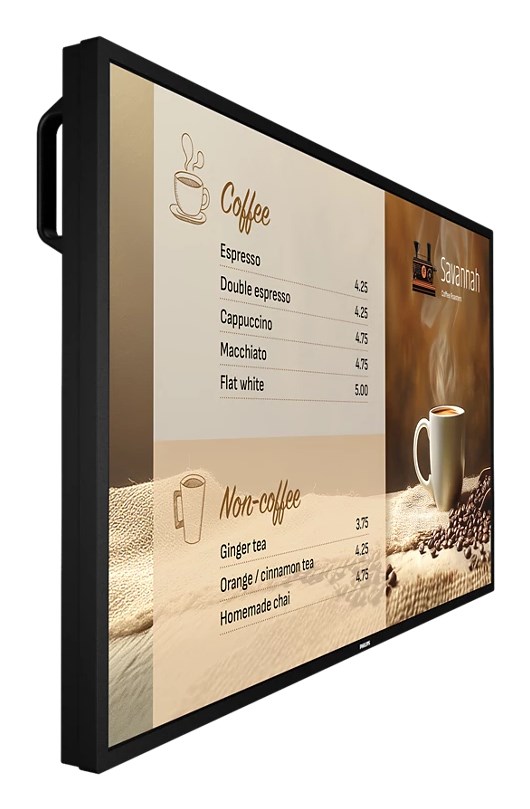

Product design: Digital signage flat panel
Placement supported: Indoor
Mounting type: Wall
Orientation: Horizontal/Vertical
Power
Power consumption (max): 150 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 85 W
Energy efficiency class (SDR): G
Power consumption (standby): 0.5 W
Energy consumption (SDR) per 1000 hours: 89 kWh
Energy efficiency scale: A to G
Operational conditions
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Weight & dimensions
Display weight: 14.1 kg
Display height: 561.2 mm
Display width: 973 mm
Display depth: 76.8 mm
Network
Wi-Fi: No
Ethernet LAN: Yes
Performance
International Protection (IP) code: IP5X
Mean time between failures (MTBF): 50000 h
On Screen Display (OSD) languages: Russian, Traditional Chinese, French, Arabic, Portuguese, Japanese, Polish, German, Italian, Dutch, Turkish, Spanish, Finnish, Swedish, Simplified Chinese, Danish, English, Norwegian
Number of OSD languages: 18
Purpose: Universal
Operating hours (hours/days): 24/7
On Screen Display (OSD): Yes
Packaging content
Batteries included: Yes
Cables included: AC, RS-232
Remote control included: Yes
Display
Display resolution: 3840 x 2160 pixels
Pixel pitch: 0.2451 x 0.2451 mm
Display number of colours: 1.07 billion colours
Viewing angle, vertical: 178°
Response time: 8 ms
Display diagonal: 108 cm (42.5")
Touchscreen: No
Viewing angle, horizontal: 178°
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Contrast ratio (dynamic): 500000:1
Contrast ratio (typical): 1200:1
Display brightness: 800 cd/m²
Display diagonal (metric): 108 cm
Panel type: ADS
Haze rate: 25%
Display technology: LCD
Native refresh rate: 60 Hz
Audio
RMS rated power: 20 W
Number of built-in speakers: 2
Built-in speaker(s): Yes
Ports & interfaces
DVI port: Yes
DisplayPorts quantity: 2
DisplayPort version: 1.2
HDMI version: 2.0
Ethernet LAN (RJ-45) ports: 1
DVI-I ports quantity: 1
HDMI ports quantity: 4
Infrared data port: Yes
USB ports quantity: 2
HDMI output ports quantity: 1
OPS module slot: Yes
DisplayPorts in: 1
HDMI input ports quantity: 3
USB version: 2.0
RS-232C: Yes
DisplayPorts out: 1
USB port: Yes
Sensors
Ambient light sensor: Yes
Computer system
Internal memory: 8 GB
Operating system installed: Android 14
Image formats supported: JPEG, PNG, BMP
Video formats supported: M-JPEG, MPEG1, H.265, MPEG2, H.264, WMV3
Internal storage capacity: 64 GB
Built-in processor: Yes
Audio formats supported: MPEG, HE-AAC, AAC
Computer system: Yes
Computer system type: System on Chip (SoC)
