Philips LFH 7177

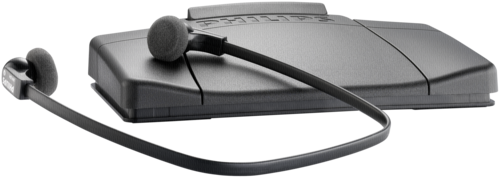

Philips LFH7177 Transcription Set Optimize your workflow
 with a professional document-creation solution


The transcription set is a digital document creation solution specifically designed to make transcription easy and intuitive. The ergonomic accessories and the innovative SpeechExec workflow software let you manage your jobs easily.

Technical specifications:


Convenience


• Configurable foot pedal

• Lightweight headphone design

• Clear job overview

• Versatile audio player

• Playback speed control

• Automatic file routing


Foot pedal


• Connectivity: USB plug

• Product dimensions (W × H × D): 160 mm × 150 mm × 18 mm/6.3" × 5.9" × 0.7"

• Weight: 0.61 kg/1.3 lb


Headphones


• Style: under chin

• Cable connection: one-sided

• Cable length: 3.0 m/10 ft

• Connector: 3.5 mm, stereo, right angled

• Acoustic system: open

• Magnet type: neodymium

• Diaphragm: PET dome

• Voice coil: copper

• Impedance: 2 × 32 Ohm

• Maximum power input: 2 × 10 mW

• Sensitivity: 103 dB

• Speaker diameter: 14 mm/0.6"

• Sound quality: optimized for voice playback

• Connector finish: gold-plated

• Weight: 0.053 kg/0.12 lb


System requirements


• Processor: Pentium IV 1 GHz recommended

• RAM memory: 1 GB (2 GB recommended)

• Hard disk space: 100 MB for SpeechExec, 850 MB for Microsoft .NET 4

• Headphone output or speakers

• Operating system: Windows 7 (32/64-bit), Windows Vista (32/64-bit), Windows XP (32 bit)

• Free USB port

• DVD-ROM drive

• Graphics card: DirectX-compliant graphics card with hardware acceleration recommended

• Sound device: Windows-compatible sound device
