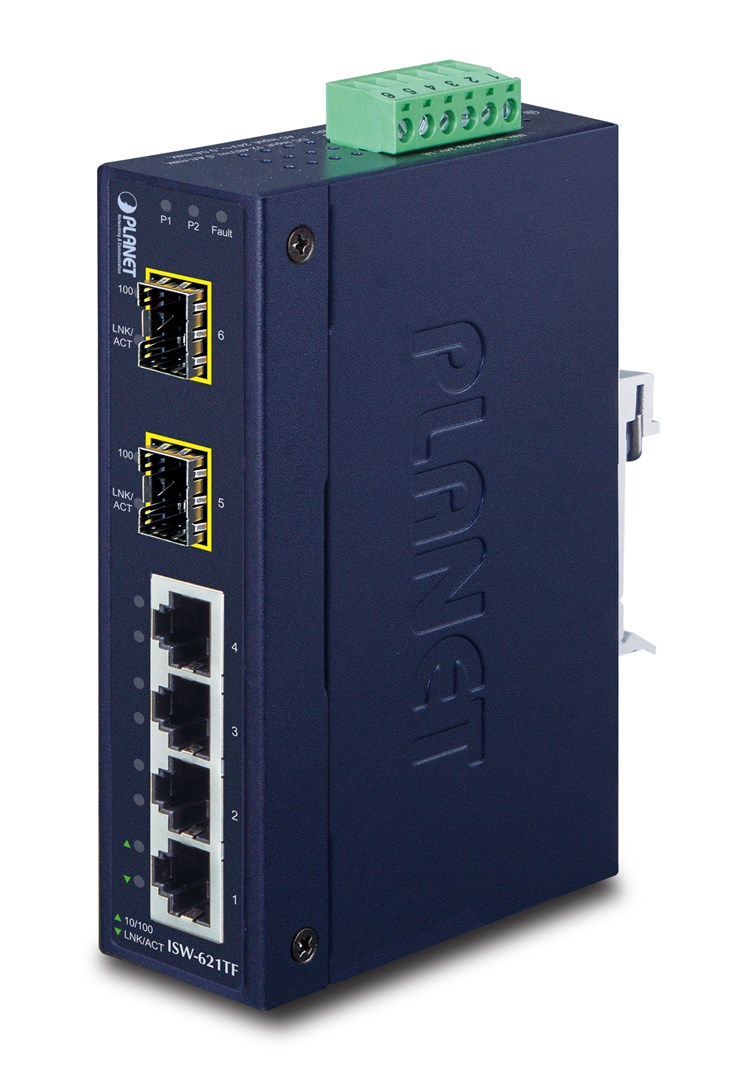

PLANET ISW-621TF network switch Unmanaged L2 Fast Ethernet (10 /100) Blue

Design
Wall mountable: Yes
International Protection (IP) code: IP30
Product colour: Blue
Rack mounting: No
Housing material: Metal
LED indicators: Yes

Power
Power consumption (max): 16 W
Redundant power supply (RPS) support: Yes

Operational conditions
Operating temperature (T-T): -40 - 75 °C
Storage relative humidity (H-H): 5 - 90%
Operating relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 85 °C
Heat dissipation: 54 BTU/h

Management features
Switch layer: L2
Switch type: Unmanaged

Weight & dimensions
Height: 32 mm
Depth: 97 mm
Width: 135 mm
Weight: 442 g

Network
MAC address auto-aging supported: Yes
Auto MDI/MDI-X: Yes
Networking standards: IEEE 802.3x, IEEE 802.3, IEEE 802.3u
Full duplex: Yes
Flow control support: Yes
Copper ethernet cabling technology: 100BASE-TX, 10BASE-T
10G support: No
MAC address auto-learning supported: Yes

Ports & interfaces
Fiber ports quantity: 2
Fast Ethernet (copper) ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity: 4
Fiber optic connector: LC
SFP module slots quantity: 2

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Switching capacity: 1.2 Gbit/s
MAC address table: 2048 entries
Throughput: 0.89 Mpps
Store-and-forward: Yes

Power over Ethernet (PoE)
Power over Ethernet (PoE): No

Optical fiber
Fiber ethernet cabling technology: 100BASE-FX
