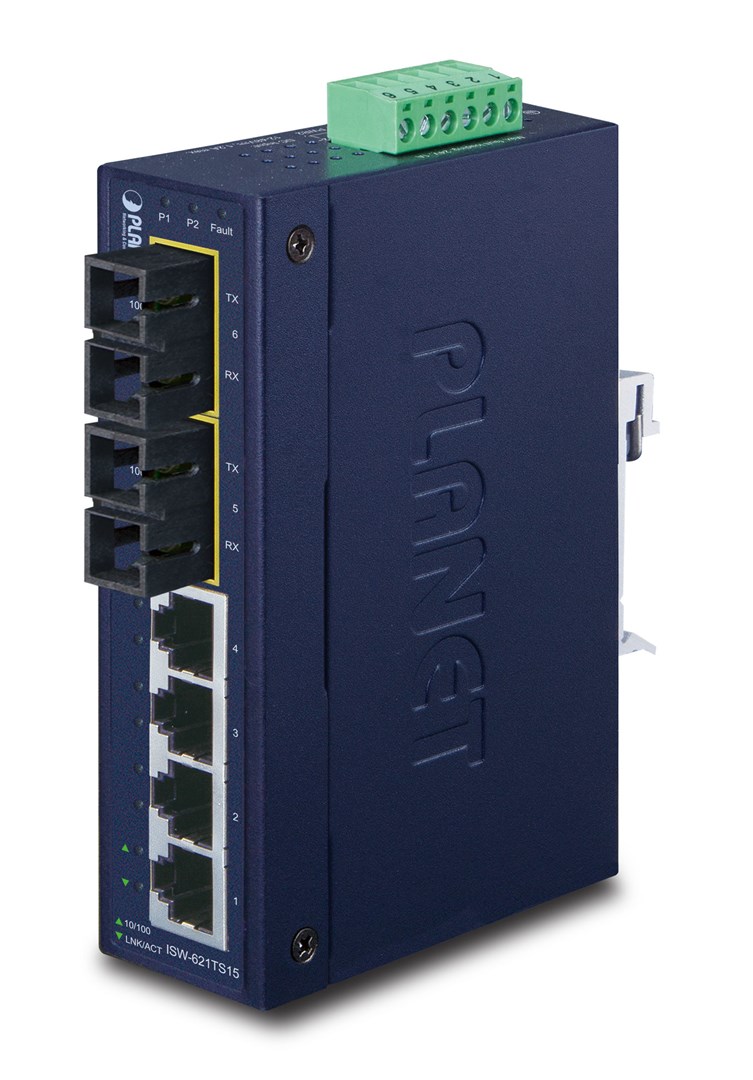

PLANET ISW-621TS15 network switch Unmanaged L2 Fast Ethernet (10 /100) Blue

Design
LED indicators: Yes
International Protection (IP) code: IP30
Product colour: Blue
Wall mountable: Yes
Housing material: Metal
DIN rail mounting: Yes
Rack mounting: No

Power
Power consumption (max): 16 W
Redundant power supply (RPS) support: Yes

Operational conditions
Operating relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 85 °C
Operating temperature (T-T): -40 - 75 °C
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 54 BTU/h

Management features
Switch layer: L2
Switch type: Unmanaged

Weight & dimensions
Weight: 442 g
Depth: 97 mm
Width: 135 mm
Height: 32 mm

Network
Networking standards: IEEE 802.3x, IEEE 802.3u, IEEE 802.3
Auto MDI/MDI-X: Yes
Copper ethernet cabling technology: 100BASE-TX, 10BASE-T
Flow control support: Yes
10G support: No
MAC address auto-learning supported: Yes
MAC address auto-aging supported: Yes
Full duplex: Yes
Auto-negotiation: Yes

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 4
Fiber ports quantity: 2

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Switching capacity: 1.2 Gbit/s
Store-and-forward: Yes
Throughput: 0.89 Mpps
MAC address table: 2048 entries

Power over Ethernet (PoE)
Power over Ethernet (PoE): No

Optical fiber
Transmission distance (max): 15 km
Fiber type: Single-mode
Wavelength: 1310 nm
RX sensitivity: -32 dB
Fiber ethernet cabling technology: 100BASE-FX
