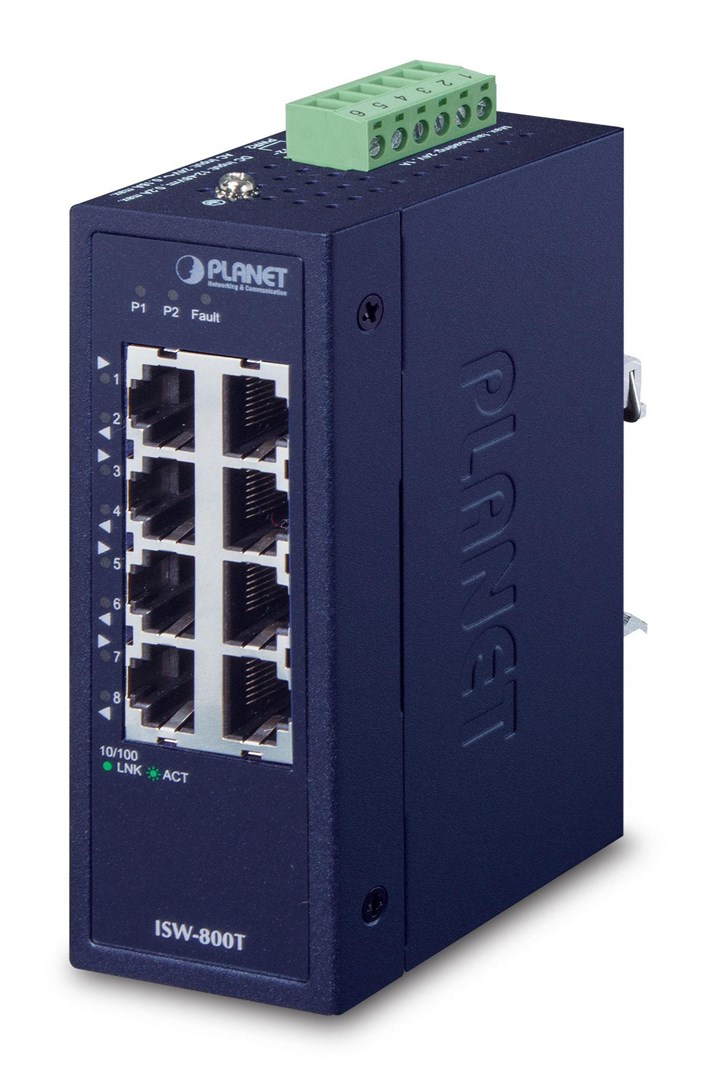

PLANET ISW-800T network switch Unmanaged L2 Fast Ethernet (10 /100) Blue

Design
International Protection (IP) code: IP30
Product colour: Blue
Wall mountable: Yes
LED indicators: Yes
DIN rail mounting: Yes

Power
Power consumption (typical): 2.5 W
Power supply included: No

Security
Authentication: Port-based authentication

Operational conditions
Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -40 - 75 °C
Heat dissipation: 8.57 BTU/h
Storage temperature (T-T): -40 - 85 °C

Management features
Switch layer: L2
Switch type: Unmanaged

Weight & dimensions
Weight: 300 g
Depth: 115 mm
Height: 41 mm
Width: 70 mm

Network
Networking standards: IEEE 802.3u, IEEE 802.3az, IEEE 802.3x, IEEE 802.1x, IEEE 802.3, IEEE 802.1p
Auto MDI/MDI-X: Yes
Copper ethernet cabling technology: 100BASE-TX, 10BASE-T
10G support: No
MAC address auto-aging supported: Yes
Flow control support: Yes
MAC address auto-learning supported: Yes
Full duplex: Yes

Performance
Buffer size: 448 KB

Packaging data
Terminal block included: Yes
Wall mounting kit: Yes

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Other features
Terminal block port: Yes

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Throughput: 1.19 Mpps
Store-and-forward: Yes
Switching capacity: 1.6 Gbit/s
MAC address table: 1000 entries

Power over Ethernet (PoE)
Power over Ethernet (PoE): No
