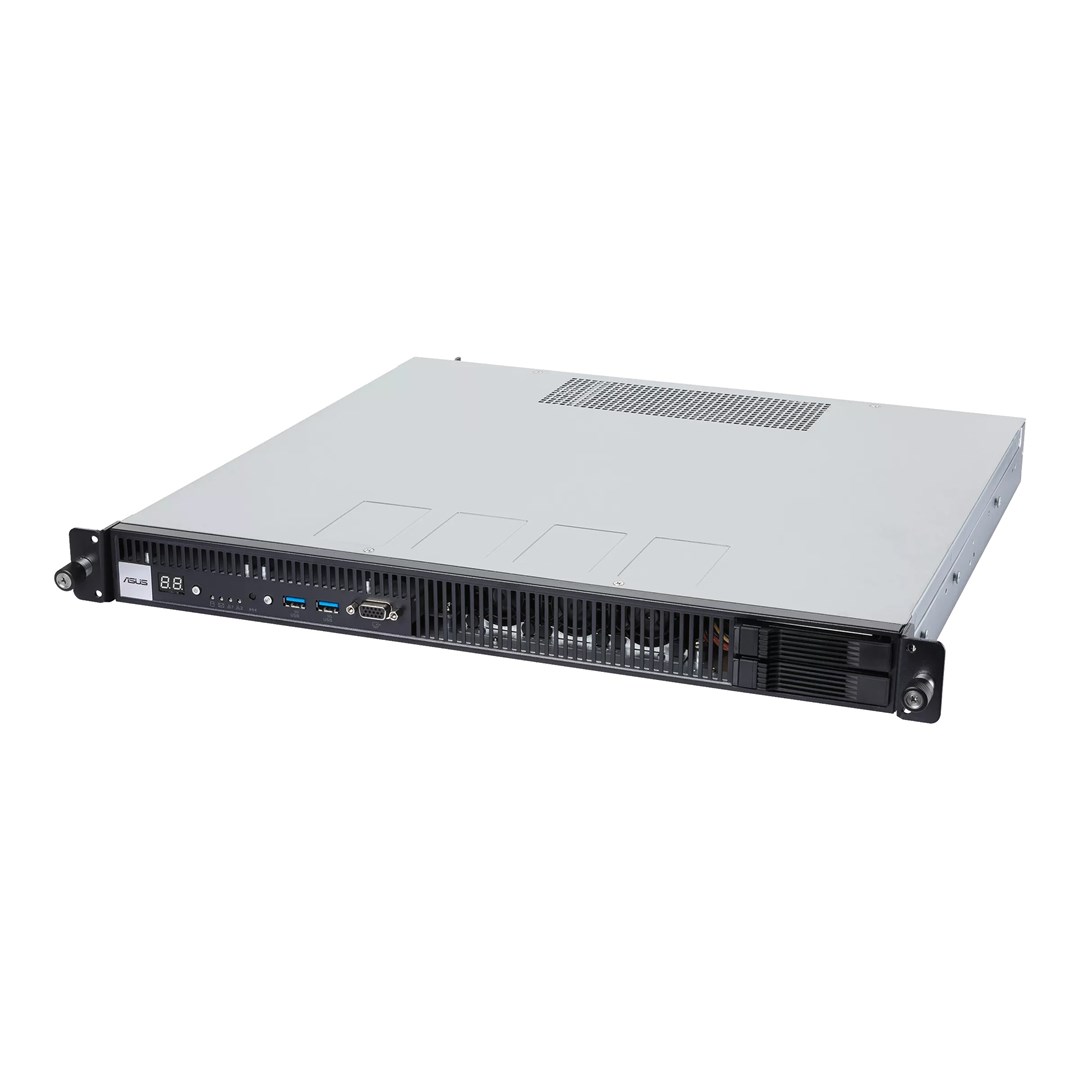

Platforma Asus Rack (1U) AMD ExpertCenter Pro ER100

Processor
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD EPYC 4005, AMD EPYC 4004
Number of processors supported: 2
Processor socket: Socket SP5

Graphics
On-board graphics card model: Aspeed AST2600

Features
Trusted Platform Module (TPM) version: 2.0
Integrated BMC with IPMI: Yes
Trusted Platform Module (TPM): Yes

Memory
Supported RDIMM clock speeds: 5600
Supported memory types: DDR5 UDIMM
Maximum RDIMM memory: 192 GB
Supported DIMM module capacities: 16GB, 48GB, 32GB, 8GB
Number of DIMM slots: 4
Certification: BSMI, CE, CB, RCM, FCC(Class A), ISED

Design
Chassis type: Rack (1U)
LED indicators: Yes
Number of fans: 8 fan(s)

Power
Input current: 4 - 8 A
AC input voltage: 100 - 240 V
80 PLUS certification: 80 PLUS Gold
AC input frequency: 50/60 Hz
Power supply: 500 W
Number of main power supplies: 1

Operational conditions
Operating temperature (T-T): 10 - 35 °C
Storage relative humidity (H-H): 20 - 90%

Weight & dimensions
Weight: 9.62 kg
Depth: 409 mm
Height: 43.2 mm
Width: 438.5 mm

Network
Ethernet LAN: Yes
Number of LAN controllers: 2
Ethernet LAN data rates: 2500 Mbit/s, 1000, 10, 100 Mbit/s

Packaging data
Package weight: 12.4 kg

Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
PCI Express slots version: 5.0

Storage
Hot-swap HDD bays: Yes
Number of storage drives supported: 4
Number of 2.5" bays: 4
Storage drive sizes supported: 2.5
Supported storage drive types: HDD & SSD

Ports & interfaces
VGA (D-Sub) ports quantity: 1
Ethernet LAN (RJ-45) ports: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
COM ports quantity: 1
USB Type-C DisplayPort Alternate Mode: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 2.0 connectors: 2
