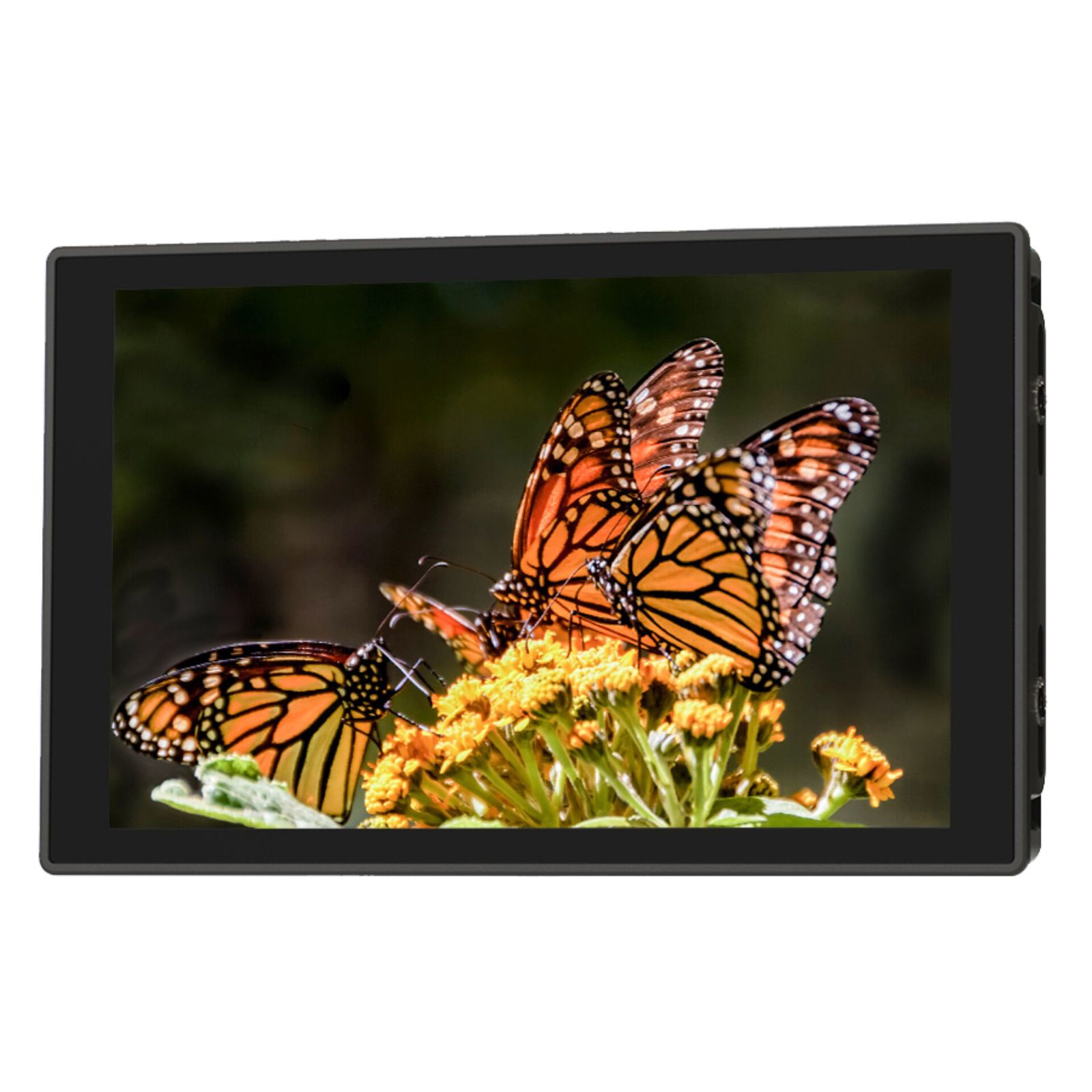

Portkeys HD7T Monitor

Portkeys HD7T 1000nits 7″ DSLR Camera Monitor Screen with HDMI Input

The Portkeys HD7T is an ultra‑light, HDMI-based 7-inch on‑camera monitor for creators who need important monitoring functions in a compact and affordable format. With 4K30p signal support, 1000 nits brightness and a fast touchscreen interface, the HD7T is ideal for outdoor filming, lightweight camera rigs or as a reliable second monitor.

The fully laminated touchscreen allows easy navigation and control. The wide 80° viewing angle from all sides makes sure you see a clear and consistent image. Whether you film interviews, vlogs or action scenes in daylight, the HD7T gives you the visibility, accuracy and flexibility you need.

Features:

• 7-inch REC.709 1280 x 800 IPS touchscreen display, 8-bit colour depth, 1000:1 contrast ratio
• Daylight-viewable brightness up to 1000 nits
• 4K30p HDMI input, supports UHD and DCI formats
• AV-IN port for older video systems
• Compact and lightweight: only 245 g, case thickness 20.8 mm
• Flexible power options: Sony NP-F battery plate or DC input (7 V–20 V), maximum power consumption 10 W
• Robust case: plastic for reliable field use

Professional Monitoring Tools:

• 3D LUT support: LUTs can be loaded and previewed via USB drive.
• Supports up to 20 sets of replaceable LUTs
• Exposure tools: false colour, zebra, histogram
• Focus assist: peaking, zoom-in
• Frame tools: rectangle cut-out, grid, anamorphic desqueeze (1.33x/1.5x/2.0x/custom 0.25–4.0x)
• Image analysis tool: waveform, vectorscope, audio meter and histogram
