Features Efficiency: 97% Automatic Voltage Regulation (AVR): Yes Input operation voltage (min): 162 V Input operation voltage (max): 290 V Output voltage regulation: 10% Output power capacity: 0.6 kVA UPS topology: Line-Interactive Waveform: Pure sine Output operation voltage (max): 230 V Output power factor: 0.6 Output power: 360 W Input frequency: 50/60 Hz

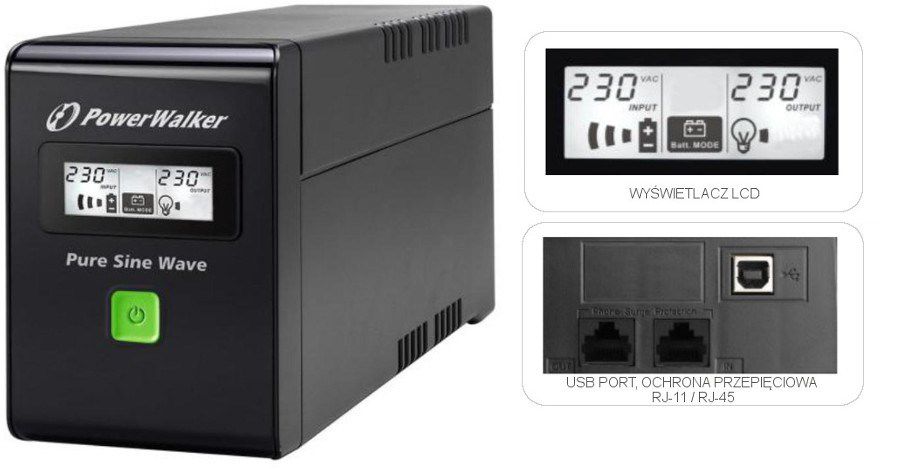

Design Display type: LCD Product colour: Black Form factor: Mini Tower
Operational conditions Operating temperature (T-T): 0 - 40 °C Operating relative humidity (H-H): 0 - 90%
Weight & dimensions Width: 100 mm Weight: 5.2 kg Depth: 328 mm Height: 145 mm
Packaging data Package height: 228 mm Package width: 140 mm
Packaging content Cables included: Input power cable, USB cable Manual: Yes
Ports & interfaces AC outlets quantity: 2 AC outlet(s) USB 2.0 ports quantity: 1 Ethernet LAN (RJ-45) ports: 2 AC outlet types: Type E USB port: Yes
Battery Typical backup time at half load: 5 min Battery voltage: 12 V Number of batteries supported: 1 Battery recharge time (90%): 6 h Battery capacity: 7 Ah
Logistics data Master (outer) case gross weight: 24.5 kg Master (outer) case width: 580 mm Products per master (outer) case: 4 pc(s) Master (outer) case height: 250 mm Harmonized System (HS) code: 85078000 Master (outer) case length: 390 mm
Safety warning Warnings: Keep away from sources of fire and water., Do not disassemble the unit housing, there may be a risk of electric shock., Use the appliance in well-ventilated areas to avoid overheating.
