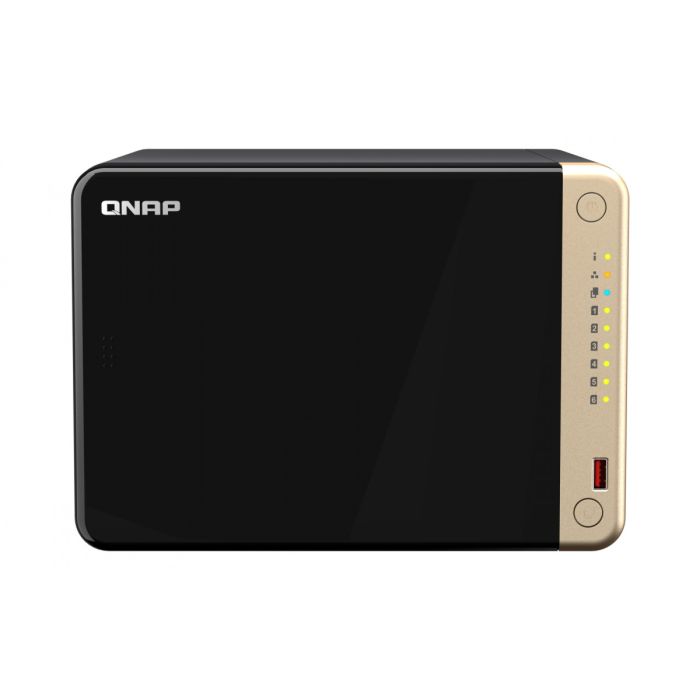

QNAP NAS server for 6 disks, 8GB RAM, 2.5GbE network

QNAP NAS with Intel quad-core processor, two 2.5 GbE network connections, supports M.2 SSD caching
and expandability with PCIe cards for fast transfers and virtualization applications

The QNAP NAS TS-664, powered by an Intel® Celeron® N5095 quad-core processor (turbo up to 2.9 GHz),
has two 2.5 GbE RJ45 ports and Port Trunking for up to 5 Gbps of combined bandwidth.
With M.2 PCIe Gen3 and PCIe Gen3 slots, the TS-664 provides flexibility in expanding NAS functionality,
allowing you to install PCIe QM2 cards for caching with M.2 SSDs or add various 10GbE/5GbE network cards
or M.2 slots for SSDs or Edge TPU for AI image recognition.
The TS-664 is equipped with 8 GB of RAM for virtualization and supports multi-cloud backup,
4K HDMI output, and real-time transcoding, along with expandable storage and feature-rich applications
rich in features that function as a cost-effective and reliable 2.5GbE NAS.

2.5GbE connectivity
Transfer speeds of up to 5 Gbps can be achieved by configuring the port connection with two built-in 2.5GbE (2.5 G/1G/100M) network cards.

M.2 SSD Caching
Two M.2 PCIe Gen 3 slots allow for NVMe SSD caching or SSD storage for improved performance or Edge TPU for AI image recognition.

PCIe expandability
Install a PCIe Gen3 x2 card to expand the TS-664's basic functionality, including a Multi-Gig 10GbE/5GbE/2.5GbE network card,
QM2 card, or USB 3.2 Gen 2 (10Gbps) card.

License-free virtualized environment
Host multiple applications in containers to run a wide range of applications and services.

Powered by automatic allocation
Qtier™ auto-tiering technology and SSD cache enable continuous storage optimization.

4K HDMI
Hardware decoding of 4K H.264 and real-time transcoding for a smooth multimedia experience on large displays.

Accelerate AI-powered image recognition with TPU
Using Google Edge TPU for QNAP AI Core (an AI-powered image recognition application)
, the TS-664 can perform high-speed face and object recognition. Google Edge TPU enables QuMagie to quickly process thousands of photos
with fast AI image recognition and classification, and QVR Face for real-time video analysis for instant face recognition.

Operating system: QTS 5.0.1
Processor: Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz; 64-bit x86
Graphics: Intel® UHD Graphics
Encryption: yes, (AES-NI)
Hardware transcoding: yes
Memory: 8 GB SODIMM DDR4; max 8 GB
Disk space: 6 x 3.5 SATA 6Gb/s; HOT SWAP
M.2: 2 x M.2 2280 PCIe Gen3 x1
SSD caching: YES
Network: 2x 2.5 Gigabit Ethernet Port (2.5G/1G/100M)
PCIe slot: 1x PCIe Gen 3 x2
USB: 2x USB 2.0; 2x USB 3.2 Gen 2 (10Gbps) Type A
IR sensor: yes
HDMI: 1x HDMI 2.0
Warranty: 3 years
Extended warranty to 5 years: LW-NAS-GREY-2Y-EI

Supported user systems:
Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, 10, and 11
Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, and 2019
Supported browsers:
Apple Safari (latest version)
Google Chrome (latest version)
Microsoft Edge (latest version)
Mozilla Firefox (latest version
RAID: JBOD, Single, RAID 0, 1, 5, 6, 10
Dimensions: 168×235×226 mm; 2.9 kg
